ESC & Motor Combo Overview:

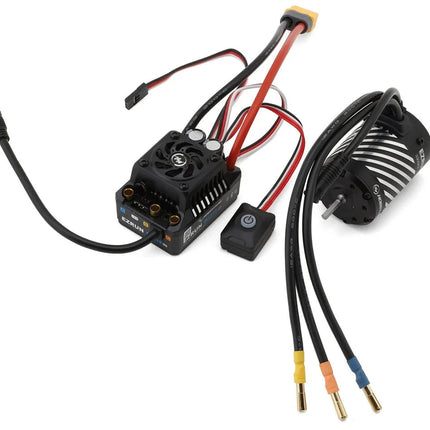

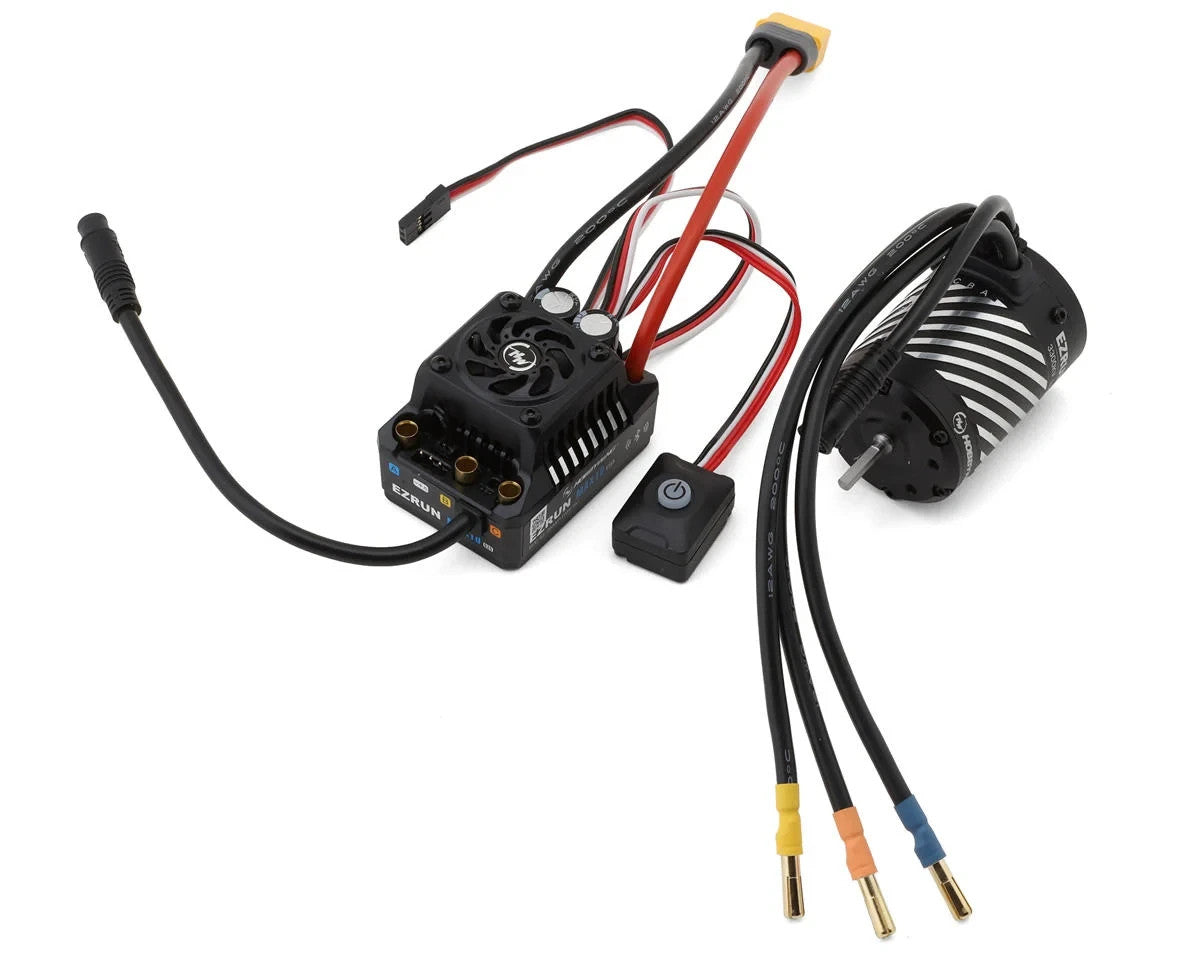

The Hobbywing EZRun MAX10 G2S 80A Sensored Brushless Waterproof ESC and 3652SD G3 Motor Combo is a versatile, high-performance power system designed for 1/10 scale RC vehicles. Engineered for smooth throttle response, efficiency, and durability, this combo provides a balanced setup for both racing and bashing. With a matched ESC and motor, it delivers reliable performance right out of the box.
About the Brushless Combo
Smart Connectivity & Easy Tuning
The MAX10 G2S ESC features integrated wireless connectivity built directly into the power switch, allowing seamless pairing with the HW LINK app. This enables users to adjust settings, monitor performance, access data logs, and perform firmware updates without additional hardware. The intuitive interface simplifies tuning for different track or terrain conditions. Dual programming options, including compatibility with an LCD programming box, provide added flexibility for any setup.v
Efficient Cooling & Intelligent Protection
A frameless high-efficiency cooling fan combined with an integrated heatsink ensures rapid heat dissipation during operation. The intelligent fan control system automatically activates based on temperature, reducing noise and conserving power when cooling is not needed. This advanced thermal management helps maintain consistent performance under load. Built-in capacitor thermal protection adds an extra layer of safety, protecting the ESC from damage during demanding use.
Balanced Power & Versatile Performance
Paired with the 3652SD G3 motor, this combo delivers smooth, controllable power with excellent efficiency. The ESC supports Turbo timing up to 32 degrees, increasing top-end speed when needed while maintaining control. An adjustable high-performance BEC provides up to 10A with selectable output voltages of 6.0V, 7.4V, and 8.4V, supporting a wide range of servos. With IP67 waterproof protection, this system performs reliably in wet, dusty, and challenging environments.
Features:
- 80A sensored brushless ESC with matched 3652SD G3 motor
- Integrated wireless connectivity via HW LINK app
- Built-in data logging and firmware update capability
- Frameless high-efficiency cooling fan
- Intelligent temperature-based fan control
- Adjustable BEC output: 6.0V / 7.4V / 8.4V up to 10A
- Turbo timing adjustable up to 32 degrees
- IP67 waterproof and dustproof protection
- Capacitor thermal protection system
- Dual programming options (app or LCD box)
