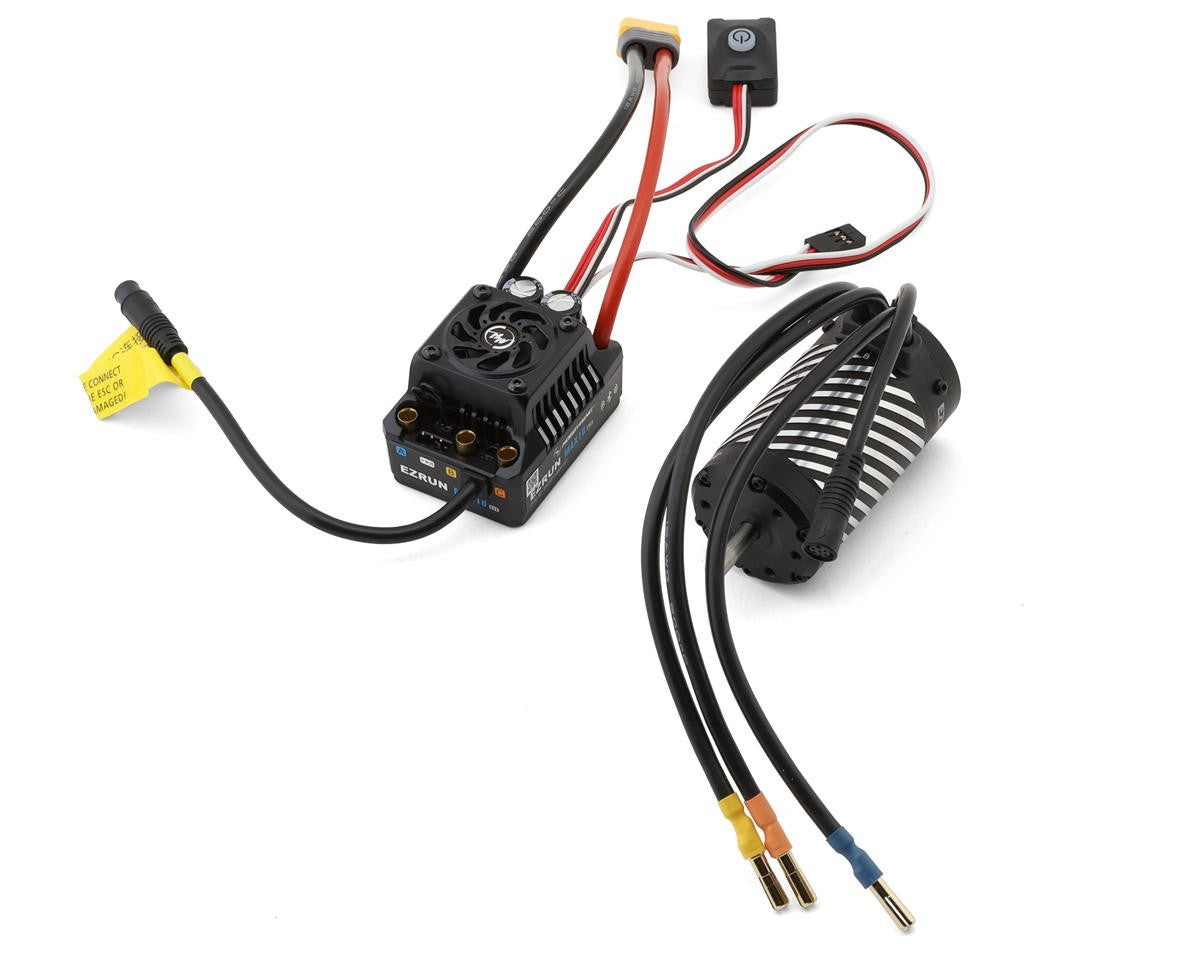

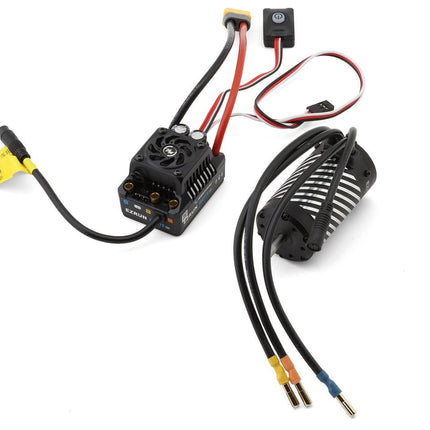

ESC & Motor Combo Overview:
The Hobbywing EZRun MAX10 G2S 140A Sensored Brushless Waterproof ESC and 3665SD G3 Motor Combo is a powerful, all-in-one solution designed for high-performance 1/10 scale applications. Engineered for smooth control, strong output, and durability, this combo delivers reliable performance across a wide range of driving conditions.
About the Brushless Combo
Smart Connectivity & Advanced Tuning Control
The MAX10 G2S ESC features integrated Bluetooth connectivity built directly into the power switch, allowing seamless access to the HW LINK app. Users can easily adjust parameters, monitor performance, access data logs, and perform firmware updates without additional programming devices. This simplifies setup and makes real-time tuning quick and intuitive. Dual programming options, including compatibility with an LCD programming box, provide flexibility for any tuning preference.
Efficient Cooling & Intelligent Thermal Management
A frameless high-efficiency fan combined with an integrated heatsink ensures rapid heat dissipation during operation. The intelligent fan control system automatically activates based on temperature, reducing noise and conserving power when cooling is not required. This advanced thermal management system helps maintain stable operating temperatures even under heavy loads. Additional capacitor thermal protection safeguards internal components for long-term reliability.
High Power Output & Versatile Performance
Paired with the 3665SD G3 motor, this combo delivers strong, consistent power with excellent efficiency and control. The ESC supports Turbo timing up to 32 degrees, increasing top-end RPM for enhanced performance when needed. An adjustable high-performance BEC provides up to 10A with selectable output voltages of 6.0V, 7.4V, and 8.4V, supporting a wide range of servos. With IP67 waterproof protection, this system is ready to perform in wet, dusty, and demanding environments.
Features:
- 140A sensored brushless ESC with matched 3665SD G3 motor
- Integrated wireless connectivity via HW LINK app
- Built-in data logging and firmware update capability
- Frameless high-efficiency cooling fan
- Intelligent temperature-based fan control
- Adjustable BEC output: 6.0V / 7.4V / 8.4V up to 10A
- Turbo timing adjustable up to 32 degrees
- IP67 waterproof and dustproof protection
- Capacitor thermal protection system
- Dual programming options (app or LCD box)
