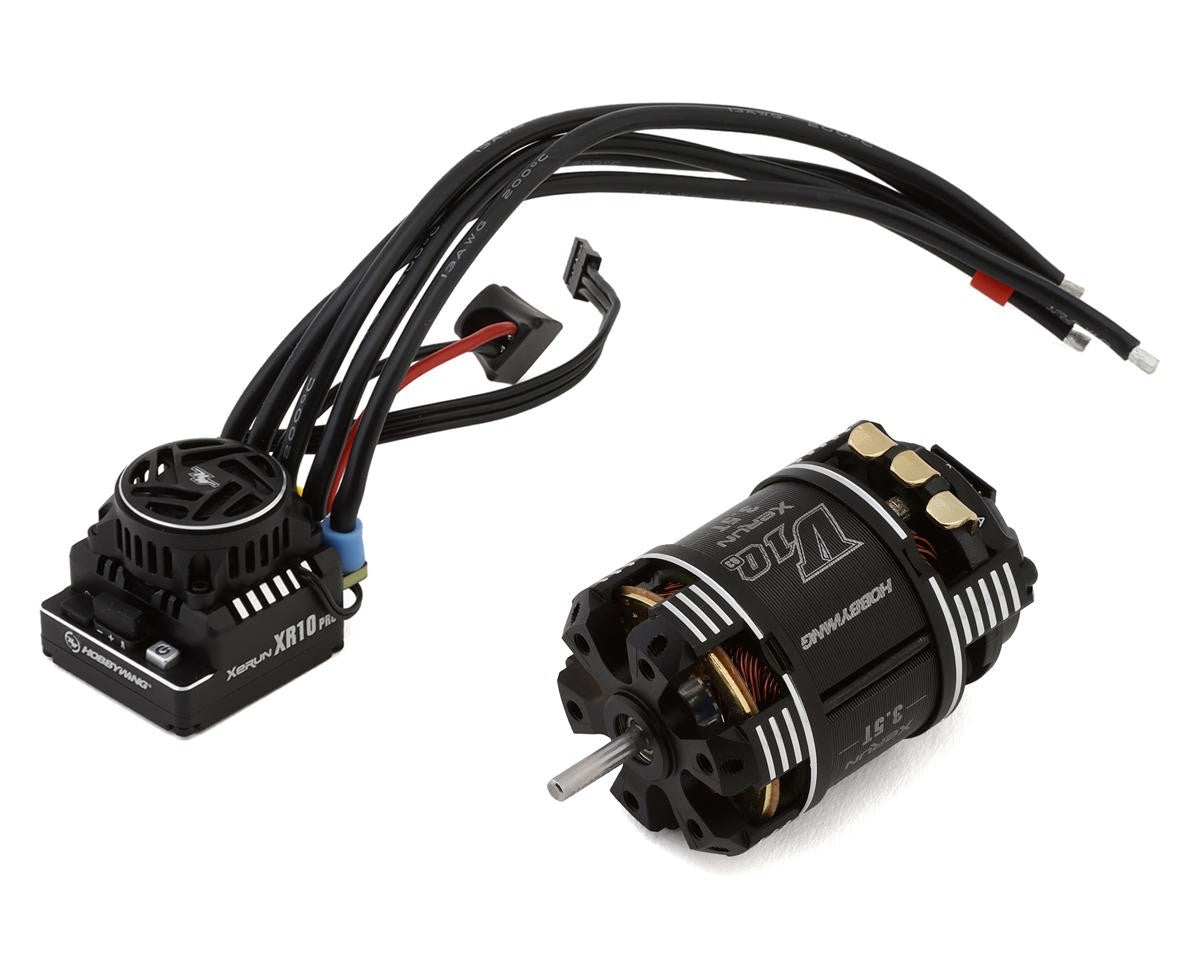

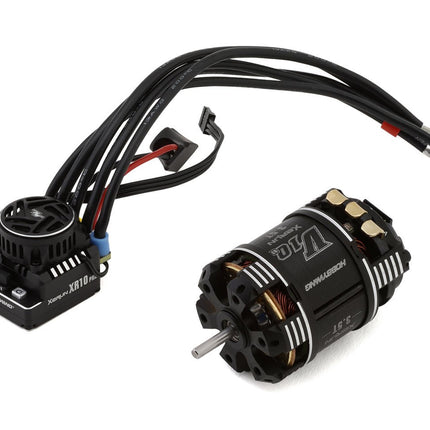

Advanced Modified Racing ESC & Motor Bundle
The Hobbywing XR10 Pro G3 Sensored Brushless ESC and V10 G3 Motor Combo is tailored for competitive 1/10 modified class racing. This ESC combo provides optimal performance, offering racers precise control, improved power delivery, and advanced customization options to adapt to various track conditions. With features like Reverse Polarity Protection*, customizable profiles, and built-in data logging, this bundle gives racers a competitive edge while ensuring long-term reliability and efficiency.
About the XR10 Pro G3 ESC & Motor
Customizable Racing Profiles
The Xerun XR10 Pro G3 features three selectable profiles, allowing users to tailor their ESC settings to suit different racing conditions. These profiles can be renamed and saved, offering flexibility for on-road or off-road tracks. Racers can personalize these settings to match motor specifications, improving adaptability on the track.
Advanced Power Delivery & Frameless Fan
Equipped with variable frequency regulation for both PWM and braking, this ESC provides unparalleled control over motor power and braking force. The patented softening function improves power delivery tuning, offering smoother and more efficient driving. The innovative Disc Brake mode ensures stronger, smoother braking performance, giving drivers a crucial advantage. Additionally, the Xerun XR10 Pro G3 comes equipped with a durable frameless fan, designed with specialized materials that increase the rigidity of the blades. The fan features a smart start-stop function, allowing it to remain off when cooling is unnecessary and automatically activate when the ESC's temperature rises. The smart start-stop function can be disabled through the parameter settings.

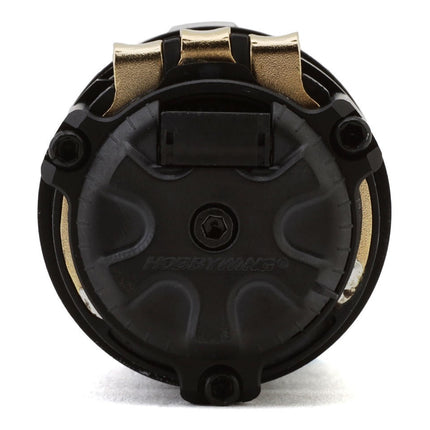

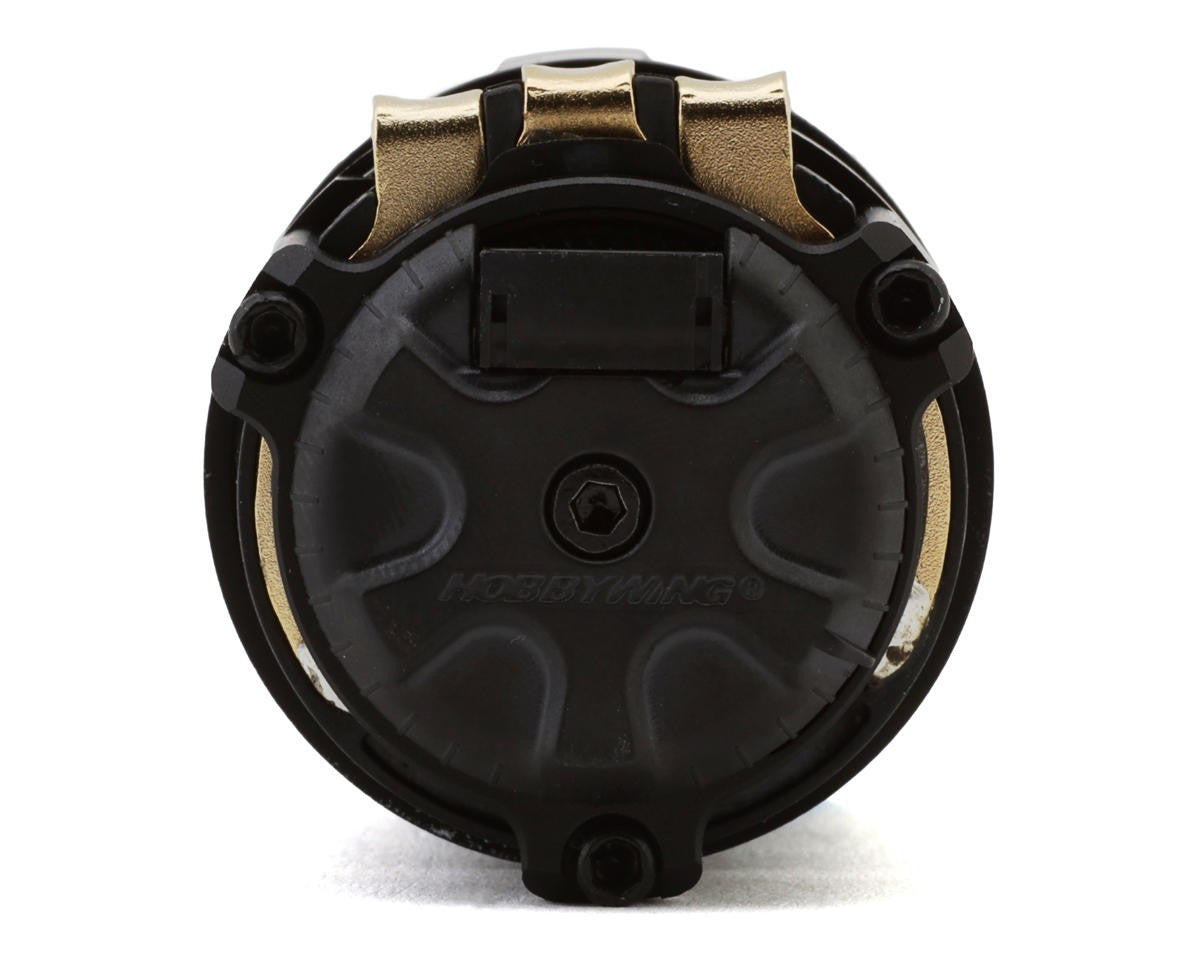

V10 G3 Electric Motor
The Hobbywing V10 G3 motor is engineered for exceptional performance and durability, offering racers outstanding linearity thanks to its built-in high precision Hall sensor and balanced rotor. The motor's mechanical timing is adjustable with smooth precision, featuring skid-proof lines on the rear end plate to ensure timing stability after adjustments. The combination of a high-performance stator core, heat-resistant wire, durable rotor, and high-precision bearings ensures exceptional power output and longevity, even under extreme conditions.
Features:
- 160A continuous current
- Patented Reverse Polarity Protection
- Three customizable racing profiles
- Variable frequency PWM and brake control
- Built-in data logging
- Internal and external switch options
- Motor equipped with built-in Hall sensor
- Balanced rotor for smooth and linear performance
- Easy-to-dismantle motor case for maintenance and part replacement
- High-performance stator core for improved power output
Includes:
- (1) Xerun XR10 Pro G3X Stock Spec 1/10 160A Sensored Brushless ESC
- (1) Xerun V10 G3 Brushless 1/10 Electric Motor (6500kV)
- Product Manual
Specifications:
ESC
| Suggested Application |
1/10 Touring Cars & Buggies |
| Motor Type |
Brushless - Sensored/Sensorless |
| Input Voltage |
2S LiPo (Only) |
| Continuous Current |
160A |
| Peak Current |
1200A |
| Dimensions (LxWxH) |
1.38x1.32x1.19in (35x33.6x30.3mm) |
| Weight |
3.28oz (93g) |
| Motor Limits |
|
| Touring Car |
>4.5T |
| Buggy |
>5.5T |
| BEC Voltage |
5-7.4V |
| BEC Continuous Current |
5A |
| BEC Peak Current |
- |
| Motor Connector |
Solder |
| Battery Connector |
Solder |
| Programmable |
Yes, with OTA or LCD Program Box Pro** |
|
Motor
| Suggested Application |
1/10 Modified Racing |
| Size |
6500kV |
| Type |
Brushless - Sensored |
| Input Voltage |
2S LiPo |
| No Load Current |
5.5A |
| Maximum Output Current |
118A |
| Poles |
2 |
| Watts |
443W |
| Connector |
Solder |
| Length |
2.01in (51.2mm) |
| Diameter |
1.41in (35.9mm) |
| Shaft Length |
0.52in (13.3mm) |
| Shaft Diameter |
3.17in (0.13mm) |
| Weight |
5.6oz (159g) |
|
*Tech Note: While the ESC provides reverse polarity protection, the standard capacitor in the ESC does not offer reverse connection protection. Reverse connection of the battery will damage the capacitor.
**Tech Note: The OTA Programmer (HWA30850400) or LCD Program Box Pro (HWA30502002) is required to read the data. Data includes throttle, voltage, current, temperature, motor RPM, vehicle speed, and other relevant parameters.
