Description

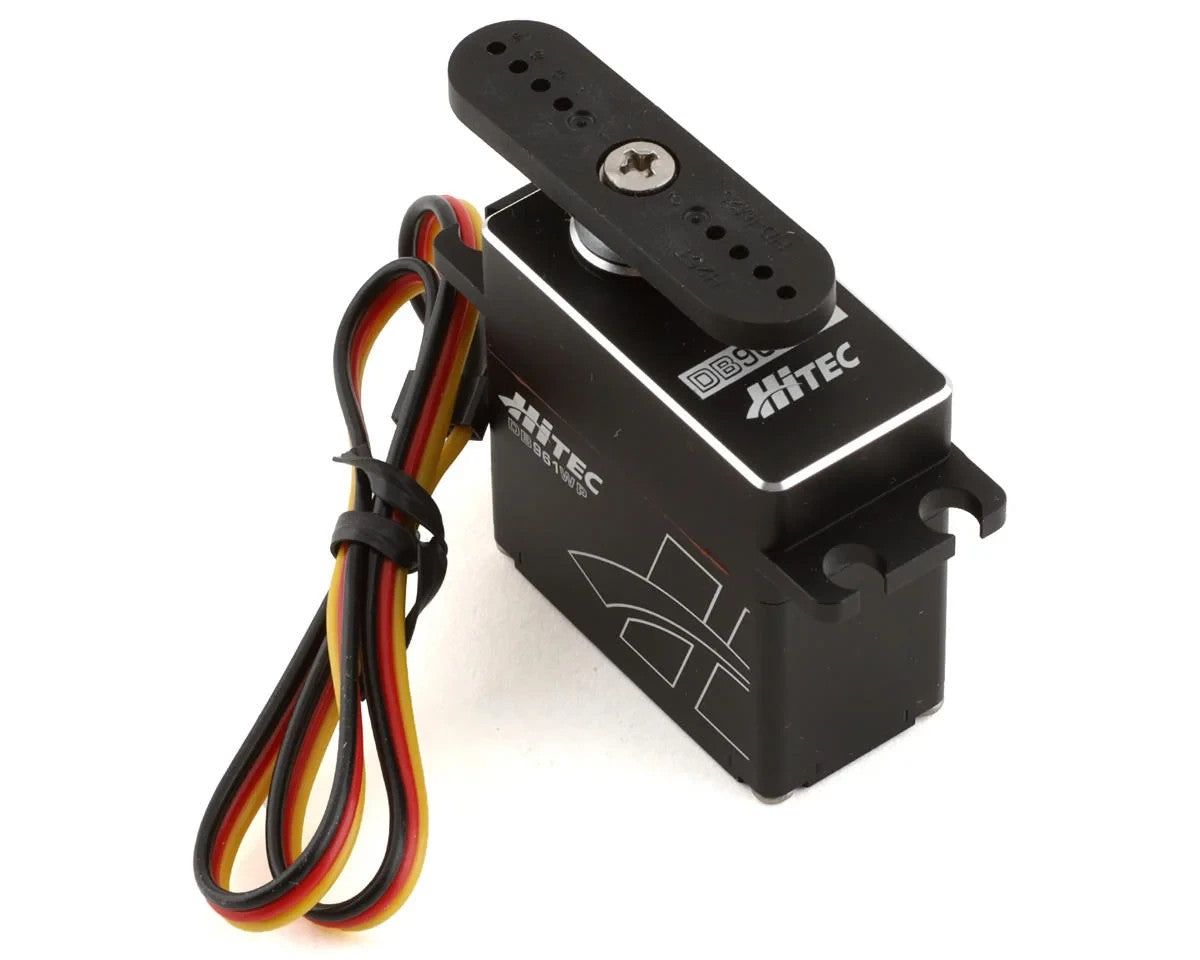

Hitec DB961WP Ultra Torque Waterproof Brushless High Voltage Servo. This ultra torque offering from Hitec uses huge brushless power to give it an impressive 55.0kg-cm (763.81oz-in) at 7.4V! All Hitec D-Series servos have been designed Hitec's cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement.
NOTE: Programmable features require the use of the Hitec servo programmer sold separately (HRC44427 or HRC44429).Features:
- Full metal case
- IP67 Waterproof rating
- Robust gear train with dual ball bearings
- High performance brushless motor
- Programmable high response digital amplifier with MOSFET driver
Specifications:
-
Operating Voltage: 6.0-7.4V
-
Speed:
-
@6.0V: 0.18sec/60°
-
@7.4V: 0.15sec/60°
-
Torque:
-
@6.0V: 55.0kg-cm (763.81oz-in)
-
@7.4V: 55.0kg-cm (763.81oz-in)
-
Weight: 90.0g (3.17oz)
-
Dimensions: 40x20x39mm (1.57x0.78x1.53in)
-
Spline: 25T
-
Motor Type: Brushless
-
Water Resistance: IP67
Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
