Description

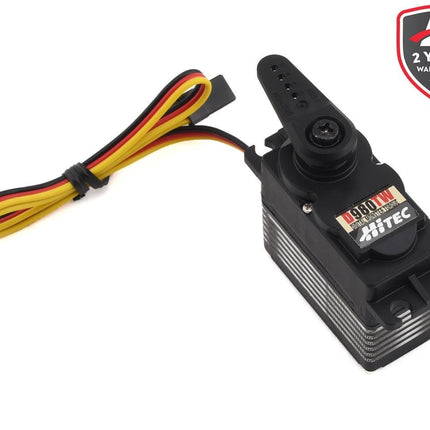

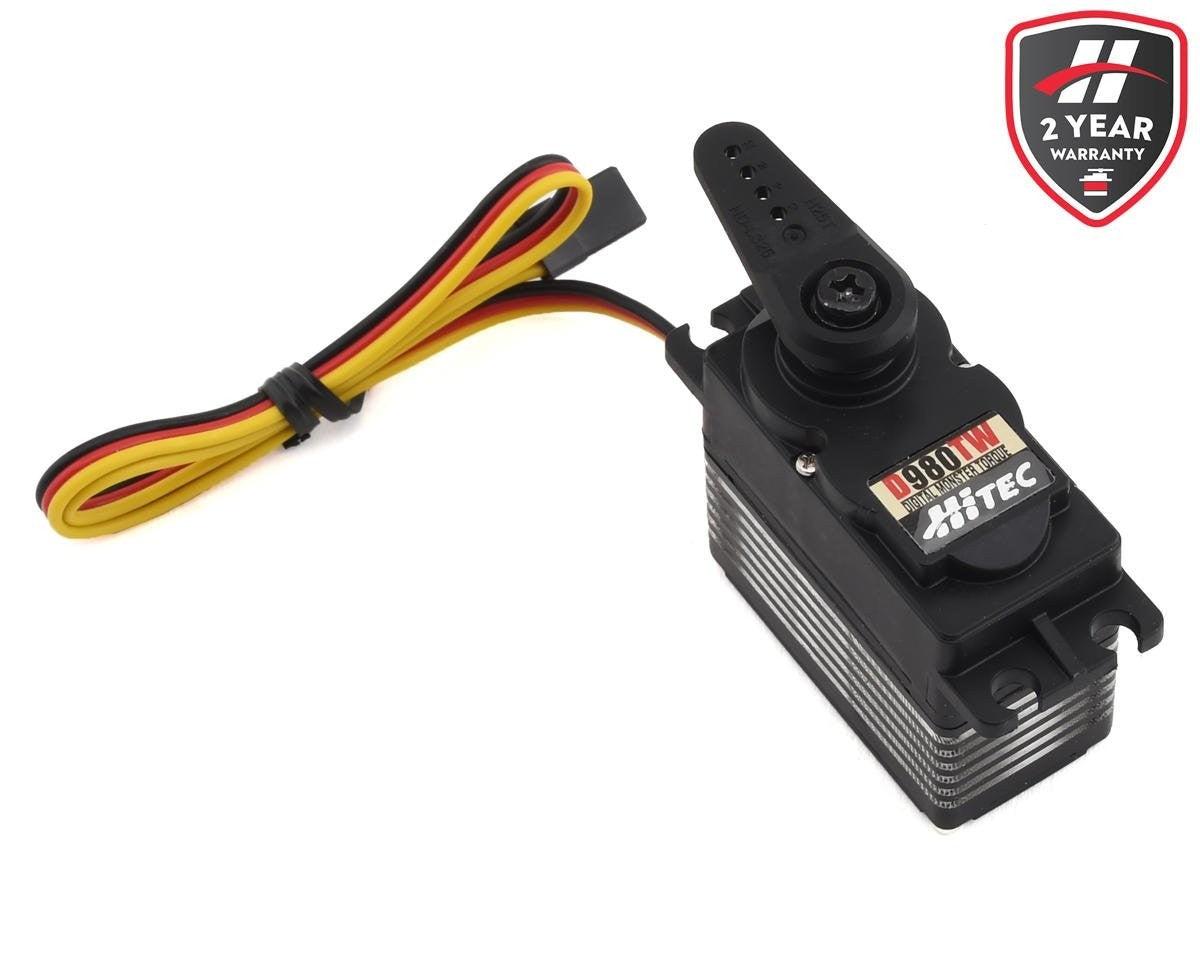

The Hitec titanium D-980TW monster torque, titanium gear servo is part of the cutting edge D-Series servo line. This servo combines industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU, and 12-bit ADC for unprecedented programmability and flexibility. The line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. The servo features an industry standard 25-tooth output spline with 3mm hex screw. This upgraded version of the Hs-7980TH delivers monster performance.
Features:
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
- Coreless Metal Brush Motors
- Nylon Reinforced Plastic Upper and Lower Case
- Diamond Cut Aluminum Heat Sink Center Case
- Dust Resistant and Splash Proof Case
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
Specifications:
-
Motor Type: Coreless
-
Bearing Type: Dual Ball Bearing
- Speed:
-
@6.0V: .21sec/60
-
@7.4V: .17sec/60
- Torque:
-
@6.0V: 500 oz-in
-
@7.4V: 611 oz-in
-
Size: 43.8x22.4x40.0mm (1.72 x 0.88 x 1.57)
-
Weight: 79.00g
Includes:

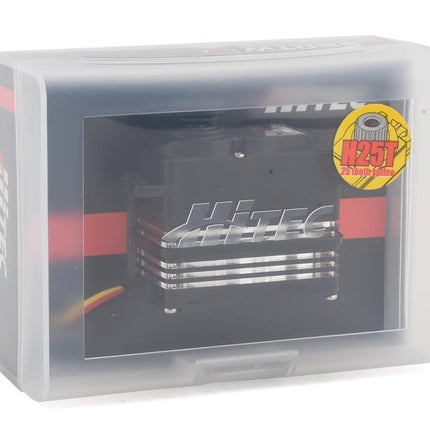

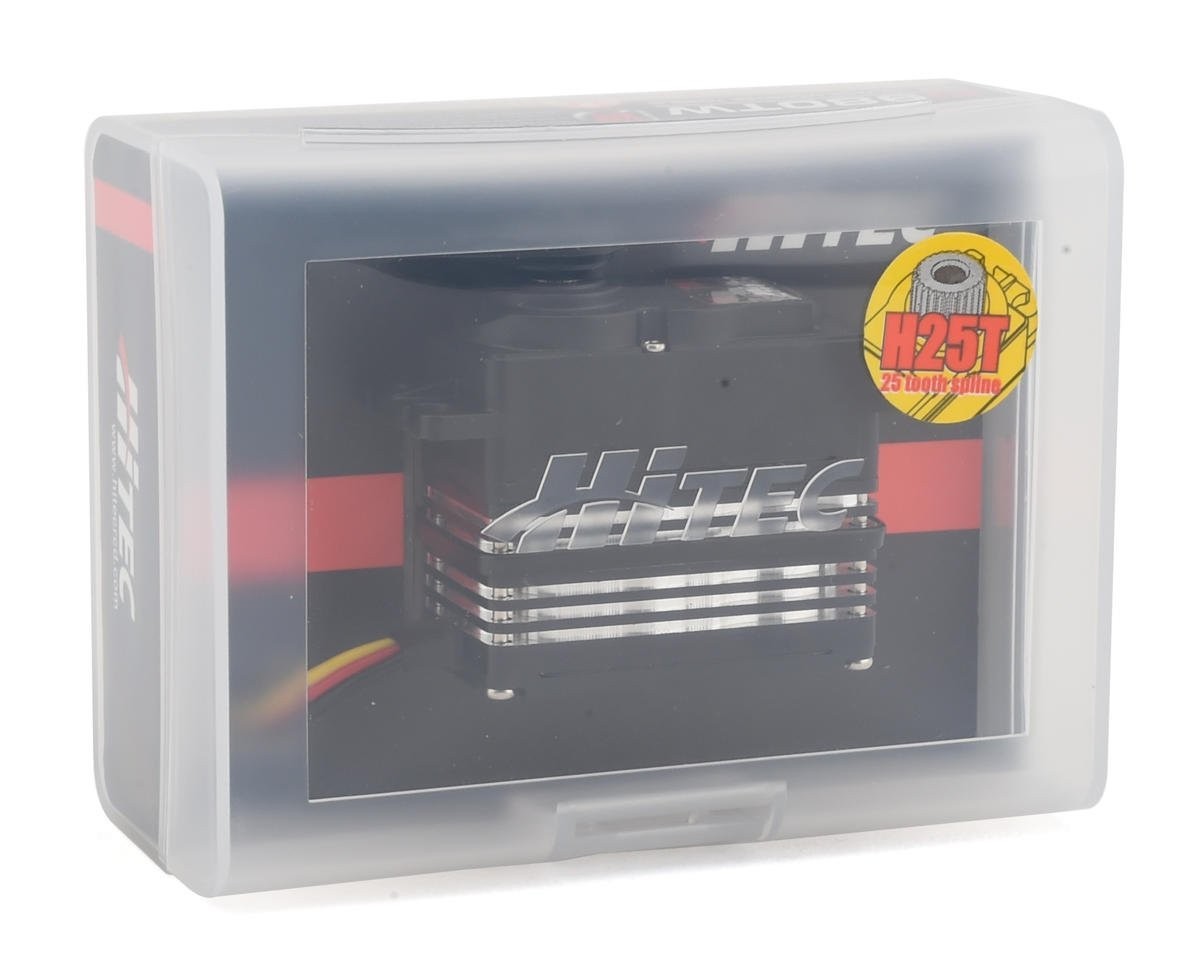

- (1) D-980TW Wide Voltage Monster Torque Servo

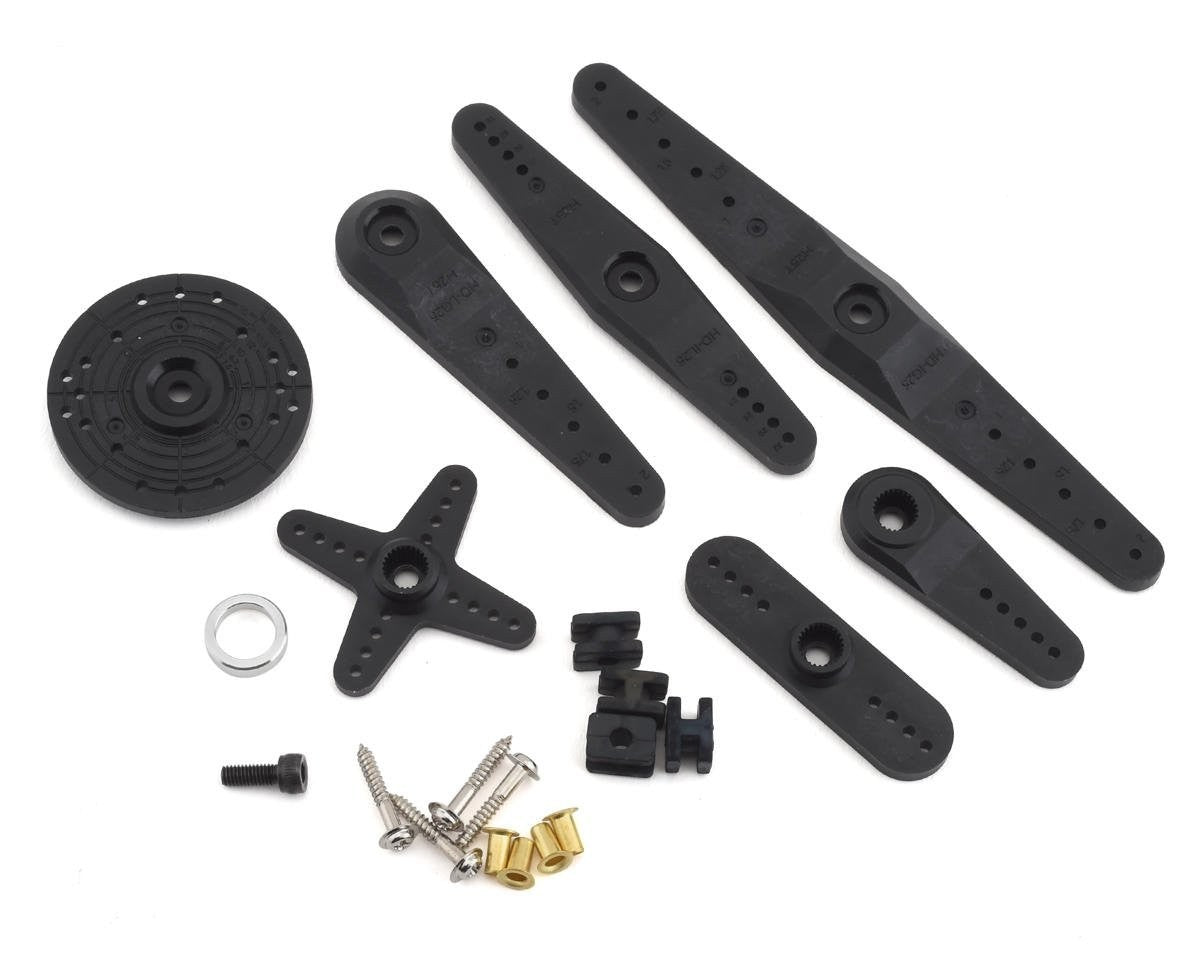

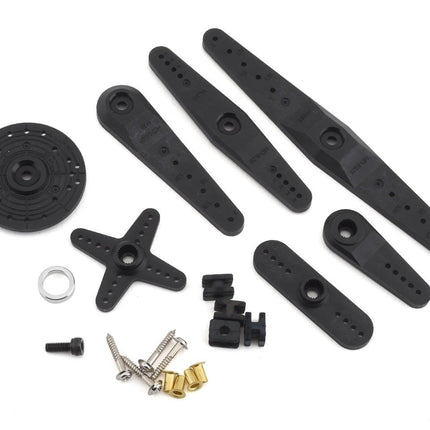

- (1) 0.98" (25mm) Single Arm servo horn
- (1) 1.2" (31.5mm) Single Arm servo horn
- (1) 1.7" (44mm) Double Arm servo horn
- (1) 2.2 " (55mm) Single Arm servo horn
- (1) 2.8" (72mm) Double Arm servo horn
- (1) 4.2" (108mm) Double Arm servo horn
- (1) 1.5" (38mm) 4-Point Horn
- (1) 1.4" (36mm) Round Horn
- (4) Grommets, Eylets and Mounting Screws
- (1) Metal Adapter Ring, extra Horn Screw
Limited Warranty:Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
