Futaba T3PV - Powerful Features & Intuitive Programming
The T3PV 4-Channel 2.4GHz T-FHSS Radio System from Futaba delivers advanced control, precision tuning, and dependable 2.4GHz performance for a wide range of RC vehicles. Designed for racers, crawlers, and large-scale models alike, this 4-channel system combines intuitive operation with powerful programming features.

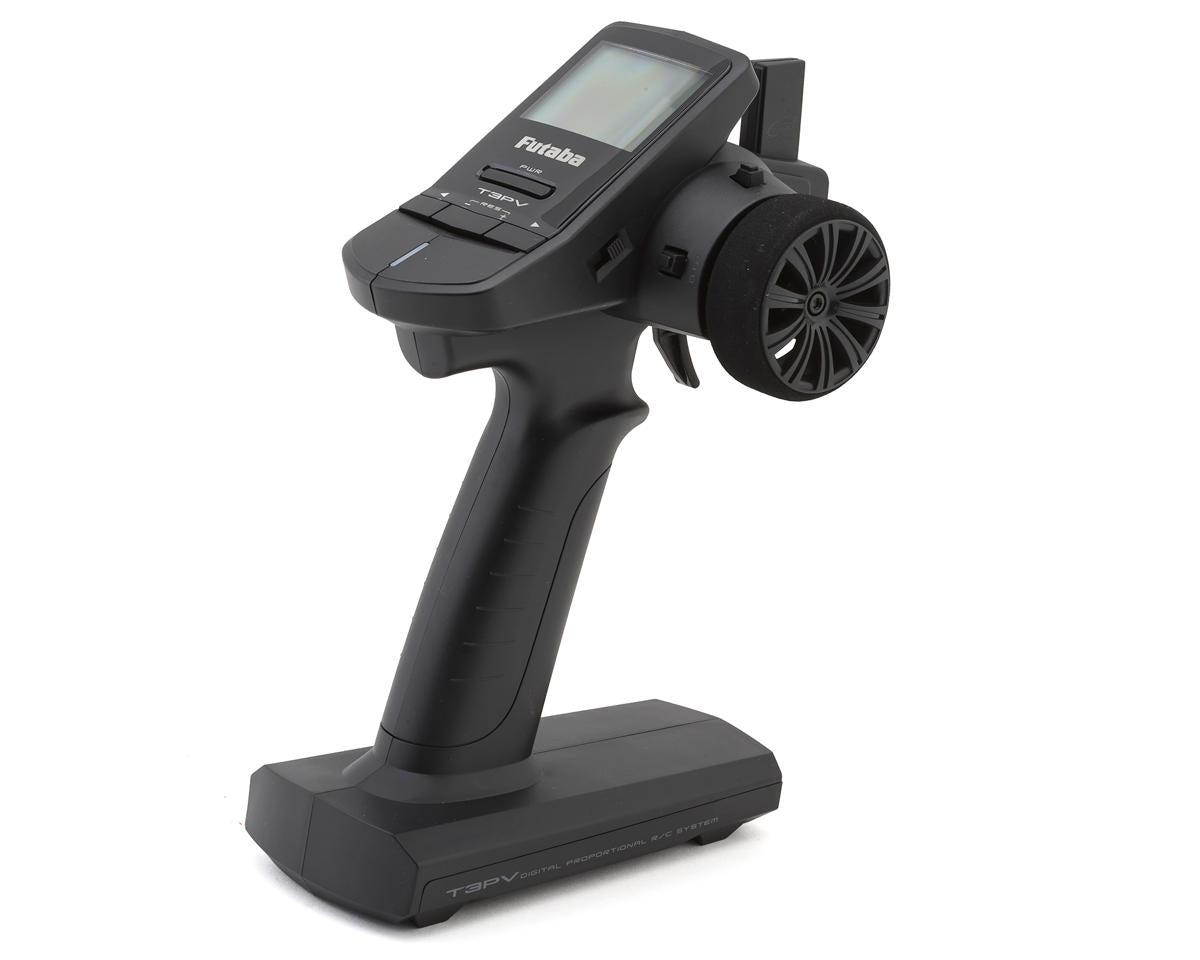

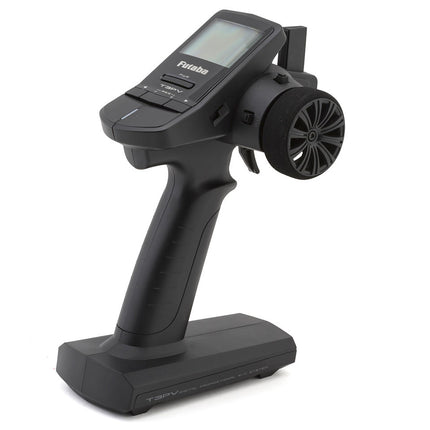

About the T3PV Transmitter
T-FHSS Telemetry Communication System
The T3PV transmitter utilizes Futaba’s T-FHSS bidirectional 2.4GHz communication protocol, allowing telemetry data to be transmitted back to the user when paired with compatible receivers. Automatic frequency channel shifting within the 2.4GHz band minimizes interference from other systems, eliminating the need for manual channel selection. This stable and responsive connection ensures precise control whether you’re racing or trail driving.
Advanced Mixing And 4-Channel Capability
With full 4-channel functionality, the system supports 4WS (four-wheel steering) and brake mixing setups. 4WS mixing allows independent front and rear steering control, ideal for crawlers and specialty builds. Brake mixing enables separate adjustment of front and rear brakes, making it well-suited for large-scale GP models. Independent channel trims and end point adjustments provide detailed setup flexibility.
Comprehensive Adjustability And Tuning Features
The T3PV offers steering and throttle trim, sub-trim, dual rates, and end point adjustment across all channels. Servo reversing on all four channels simplifies installation and compatibility with different vehicle configurations. Steering and throttle exponential functions fine-tune sensitivity around neutral, while the built-in ABS function pulses braking to help reduce skidding. With memory for up to 10 models, switching between vehicles is quick and convenient.
Features:
- T-FHSS Bidirectional Telemetry System
- 2.4GHz Automatic Channel Shifting
- 4-Channel Operation
- 10-Model Memory
- Steering And Throttle Trim Functions
- Steering Dual Rate Adjustment
- End Point Adjustment On All Channels
- 4WS And Brake Mixing Capability
- Steering And Throttle Exponential
- ABS Braking Function
