The Futaba 3PV Radio System is sophisticated, powerful and easy to use. Pick up the 3PV and instantly feel how lightweight it is. Once you access the programming menu on the easy-to-read screen, you will instantly recognize how sophisticated the programming is. But the real experience happens when you get to take advantage of the 3PV's super-fast response rate. This is a system that can make a difference on race day. You also get FHSS, S-FHSS and T-FHSS protocols, making it one of R/C's most versatile surface system.
This version of the 3PV with R304SB telemetry receiver (FUTK3200) is for those that want to keep an eye on their receiver voltage. But the 3PV is also available with a high-voltage R203GF receiver (FUTK3201) that is perfect for brushless ESCs and digital servos.
Features:
- FHSS/S-FHSS/T-FHSS* protocols
- 10-model memory
- Model Reset
- Model Name (4-Character)
- Low Battery Alarm
- Link Mode (T-FHSS only)
- DT3 Selection
- SW1
- Steering Trim
- Throttle Trim
- Channel 4 Trim
- Sub Trim
- Steering Dual Rates
- Steering End Point Adjustment spacer
- Throttle End Point Adjustment
- Channel 3 End Point Adjustment
- Channel 4 End Point Adjustment
- 4WS/Brake Mixing
- Steering Servo Reversing
- Throttle Servo Reversing
- Channel 3 Servo Reversing
- Channel 4 Servo Reversing
- Steering Exponential
- Throttle Exponential
- Throttle Fail Safe
- ABS Function
- Model Data Copy
- Auto Power-Off after 10 minutes
*NOTE: T-FHSS available only with R304SB receiver.
Specifications:

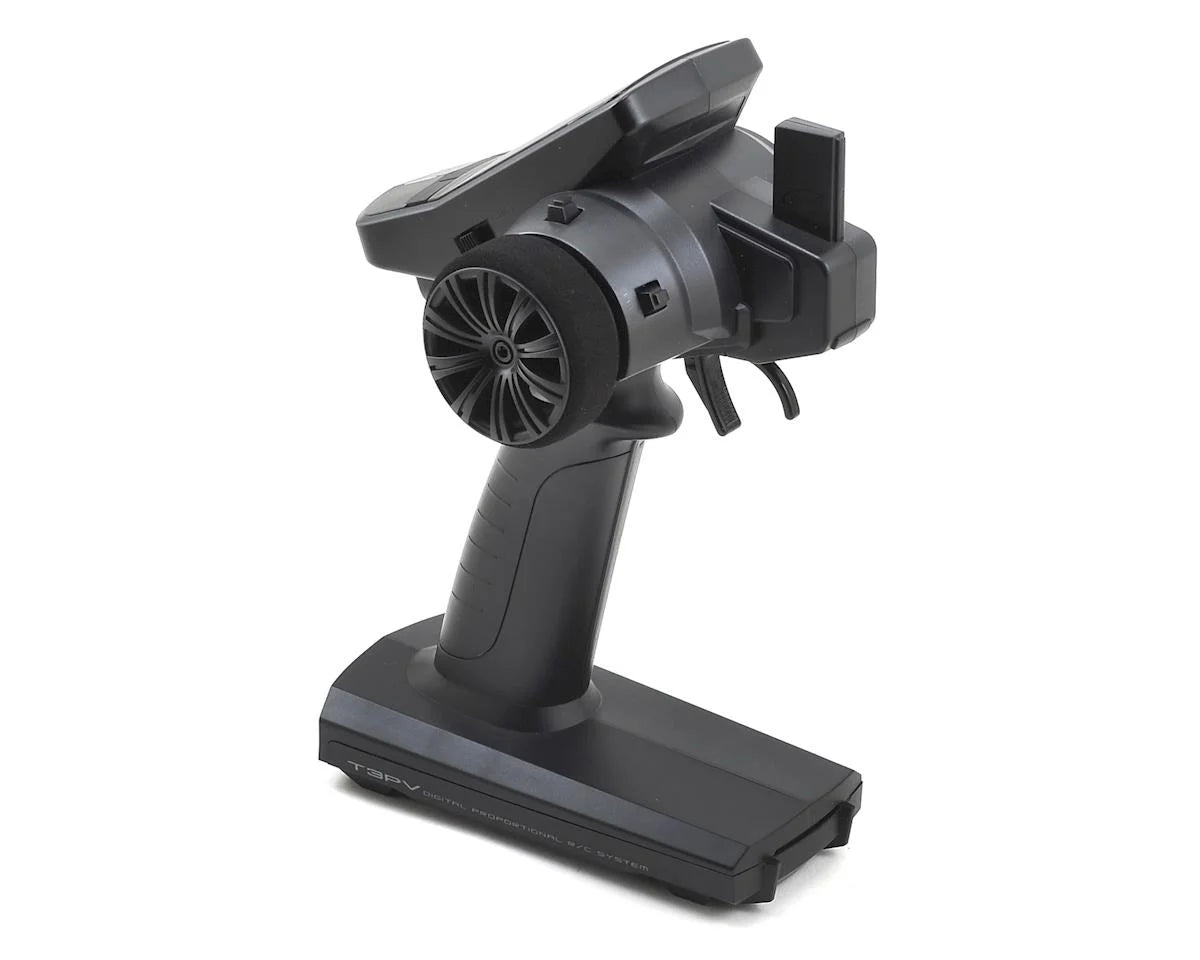

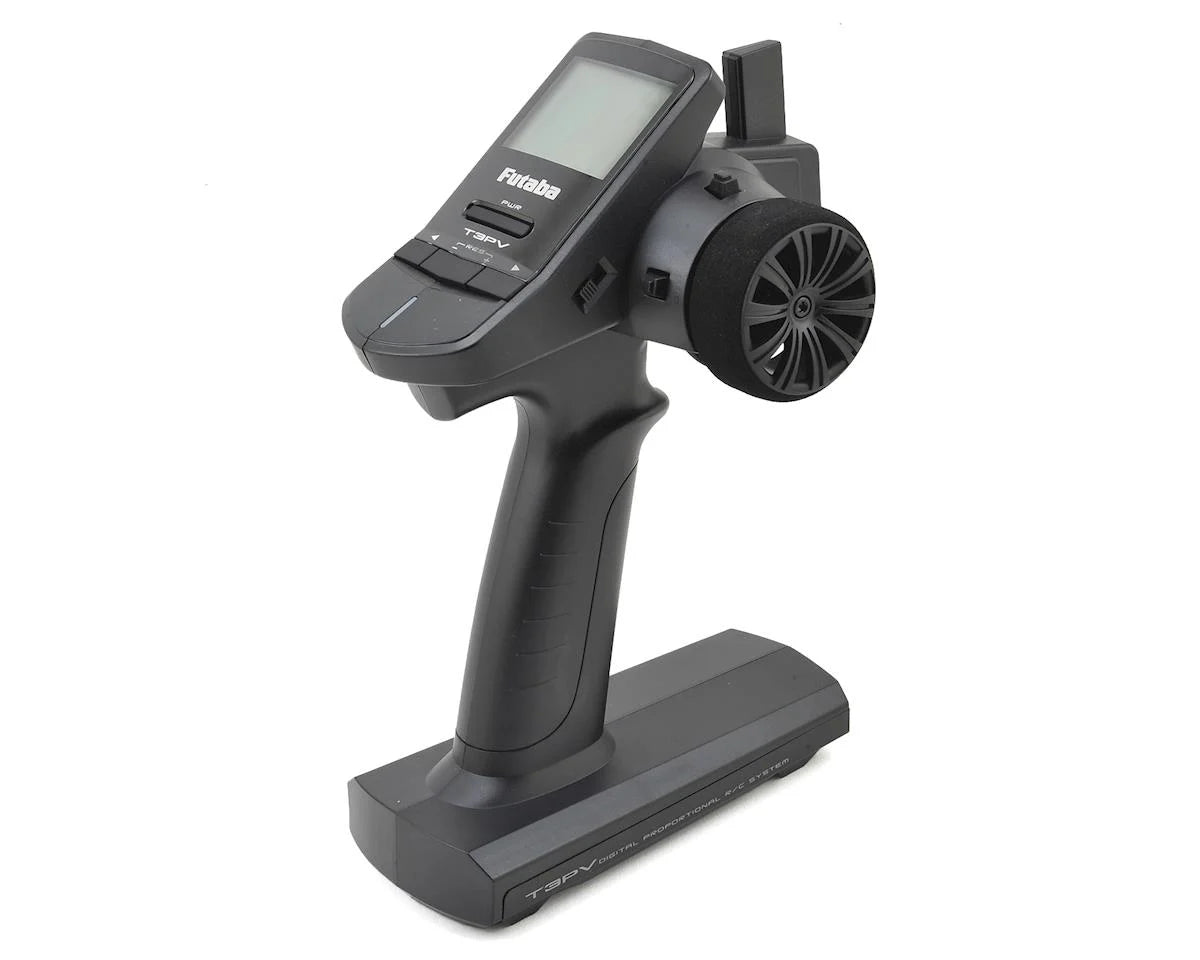

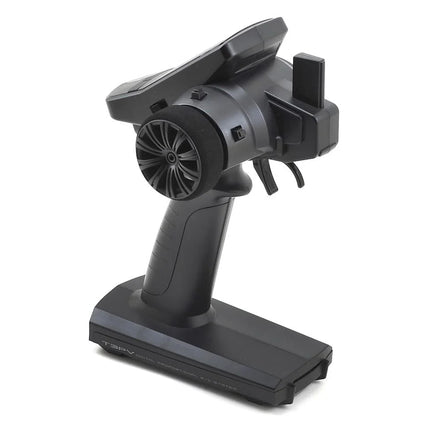

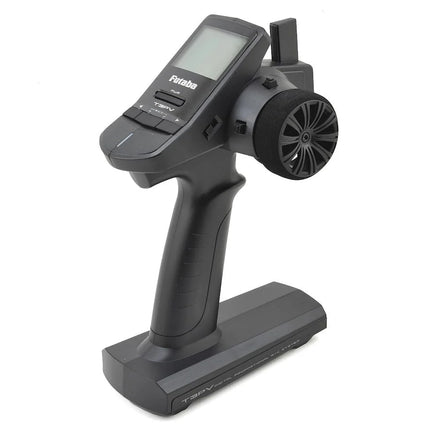

- 3PV Transmitter:
-
Type: 3-Channel FHSS/S-FHSS/T-FHSS*
-
Includes: 3-Channel R304SB Receiver
-
Requires: (4) "AA" alkaline batteries, or 6.6V 1900mAh LiFe battery (HCAM6521), or 6V NiMH Battery (FUTM1482)

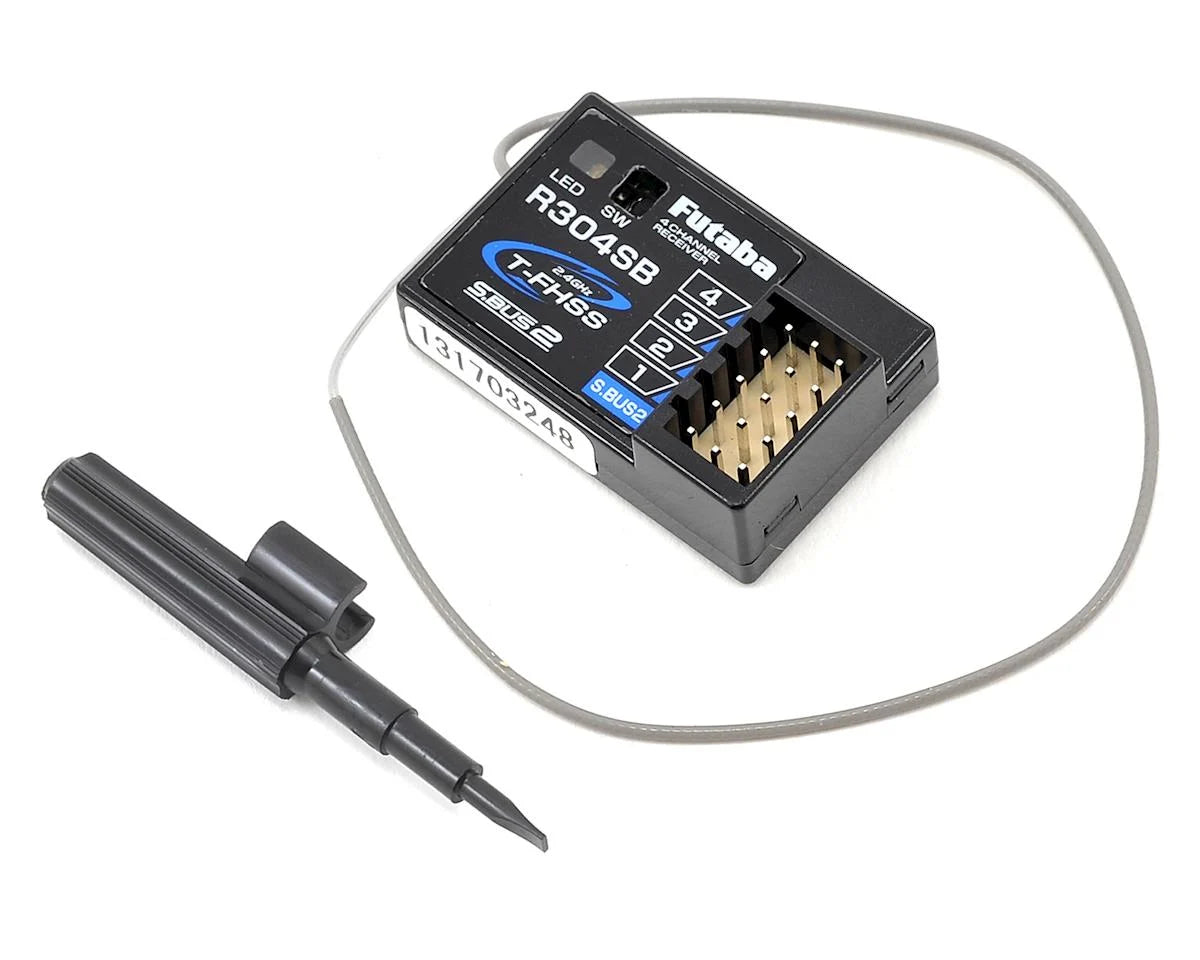

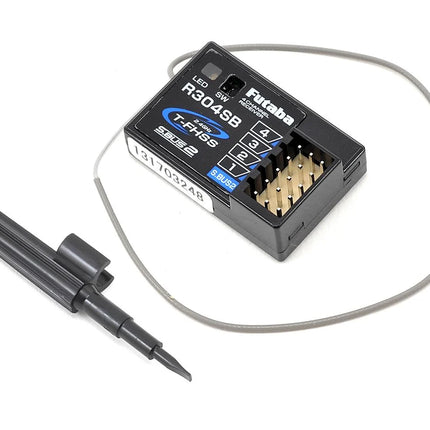

- R304SB Receiver:
-
Type: 3-Channel FHSS/S-FHSS/T-FHSS
-
Input Power: 4.8V-7.4V
-
Dimensions: 1.38 x 0.91 x 0.33 in (35.1 x 23.2 x 8.5 mm)
-
Weight: 0.23 oz (6.6 g)
