Description
UNITY PRO Combo Overview:

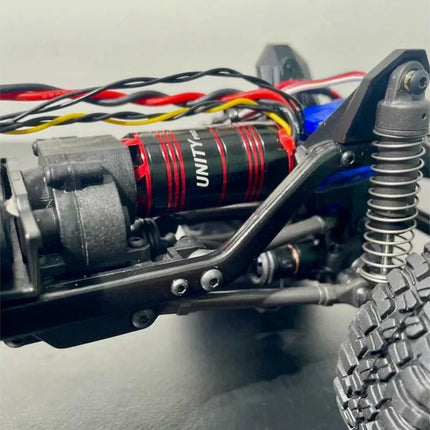

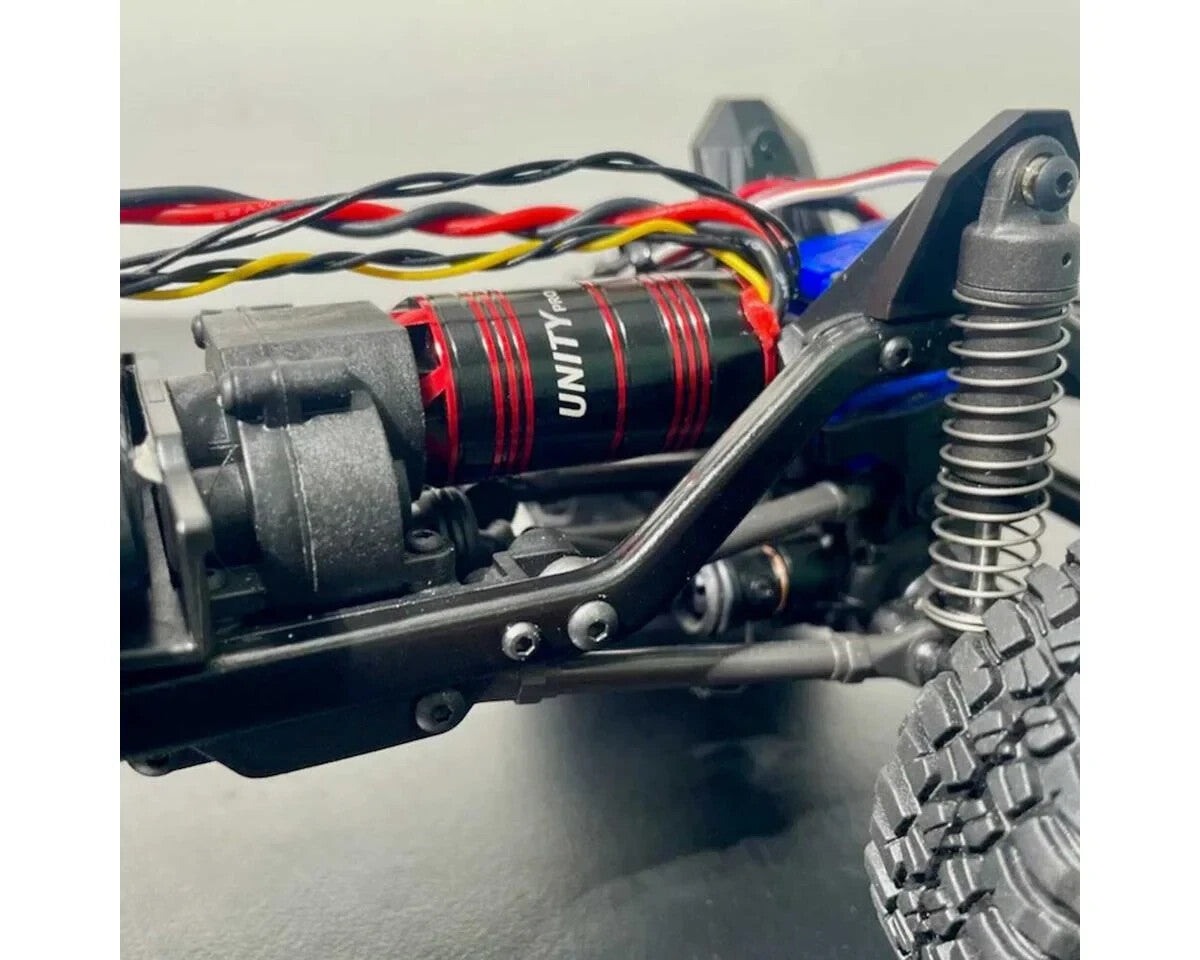

Furitek TRX-4M UNITY PRO 2-in-1 Micro FOC Brushless System. Introducing the Furitek UNITY PRO, a groundbreaking 2-in-1 brushless system designed specifically for 1/24 and 1/18 scale RC crawlers using low-reduction gearing. As a leader in mini crawler electronics, Furitek brings you cutting-edge technology with the UNITY PRO, combining a brushless motor and brushless ESC into a single, compact unit. Equipped with FOC technology, this system delivers exceptional smoothness, powerful start-up punch, and seamless power transitions. The UNITY PRO offers optimal performance and convenience. It's a perfect drop-in upgrade for the Traxxas TRX-4M, elevating your RC experience to the next level.
Note: For maximum performance, Furitek recommends using this motor on crawlers equipped with low-reduction gearing.
Features:
- FOC (Field-oriented control) technology
- Water-proof CNC-machined aluminum case
- Built-in wireless
- Built-in HV switchable BEC
- Built-in switch power
- Super easy programming via App on both Android and IOS
- Lifetime free firmware updates
Specifications:
- ESC:
-
Input Voltage: 2S-3S LiPo
-
Waterproof: Yes
-
BEC: 5.5V-8.4V Switchable
- Current:
-
Continuous: 30A
-
Peak: 50A
- Motor:
-
Motor Type: Inrunner
-
KV: 3500kV
-
Pole: 12-Pole
-
LiPo: 2-3S
-
Application: Micro Crawler
Includes:

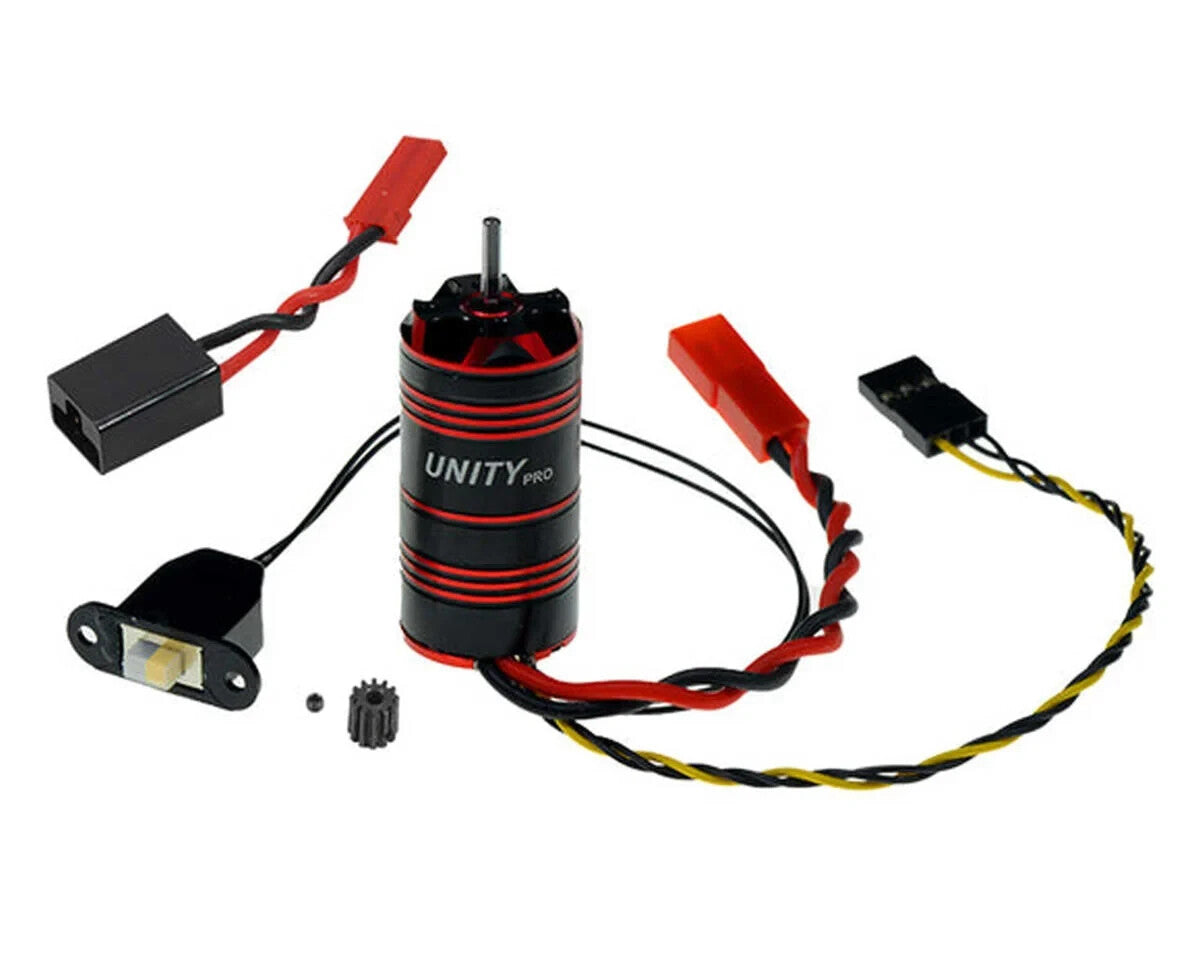

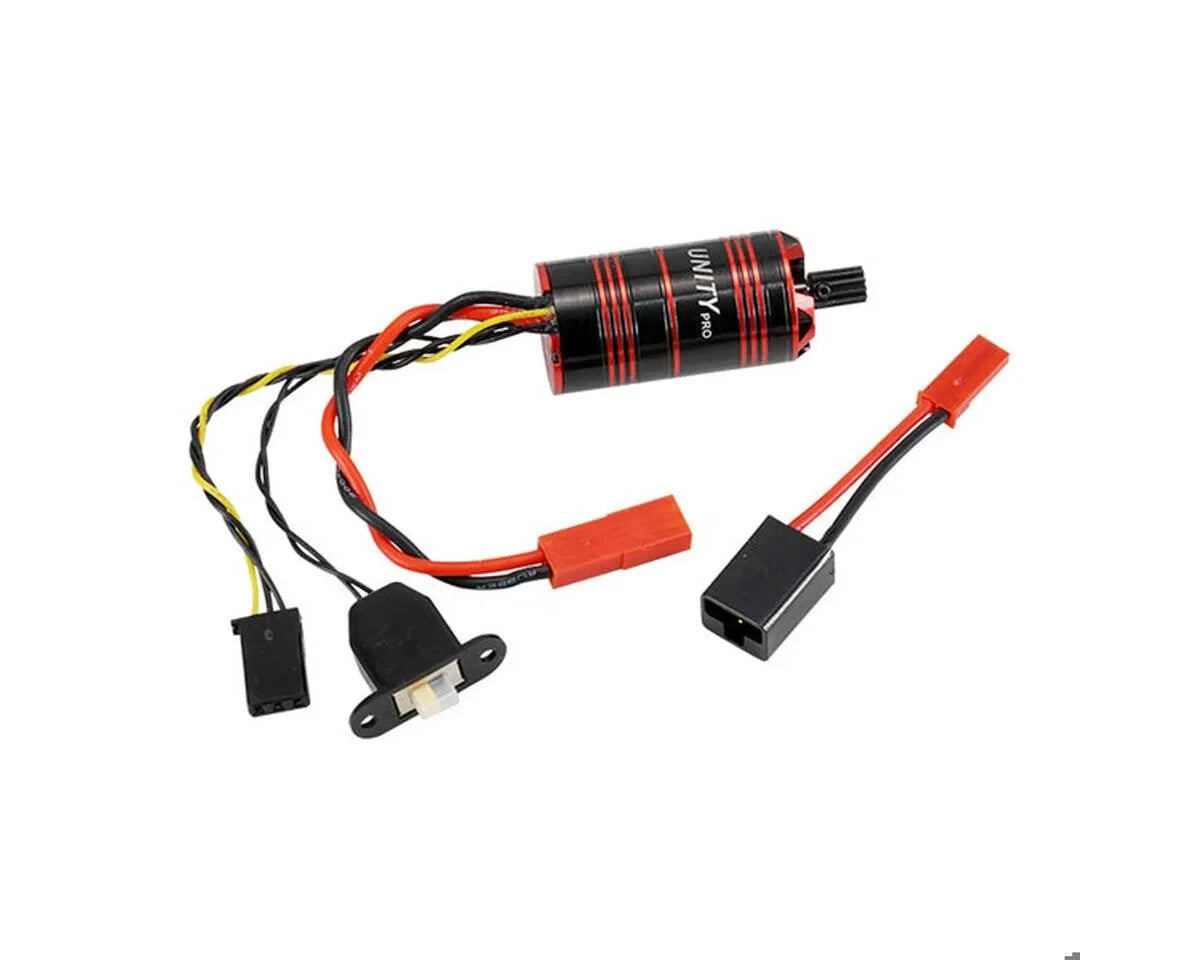

- (1) UNITY PRO 2-in-1 Micro FOC Brushless System
- (1) Battery Adapter
- (1) 11T Pinion
