Description
Combo Overview:

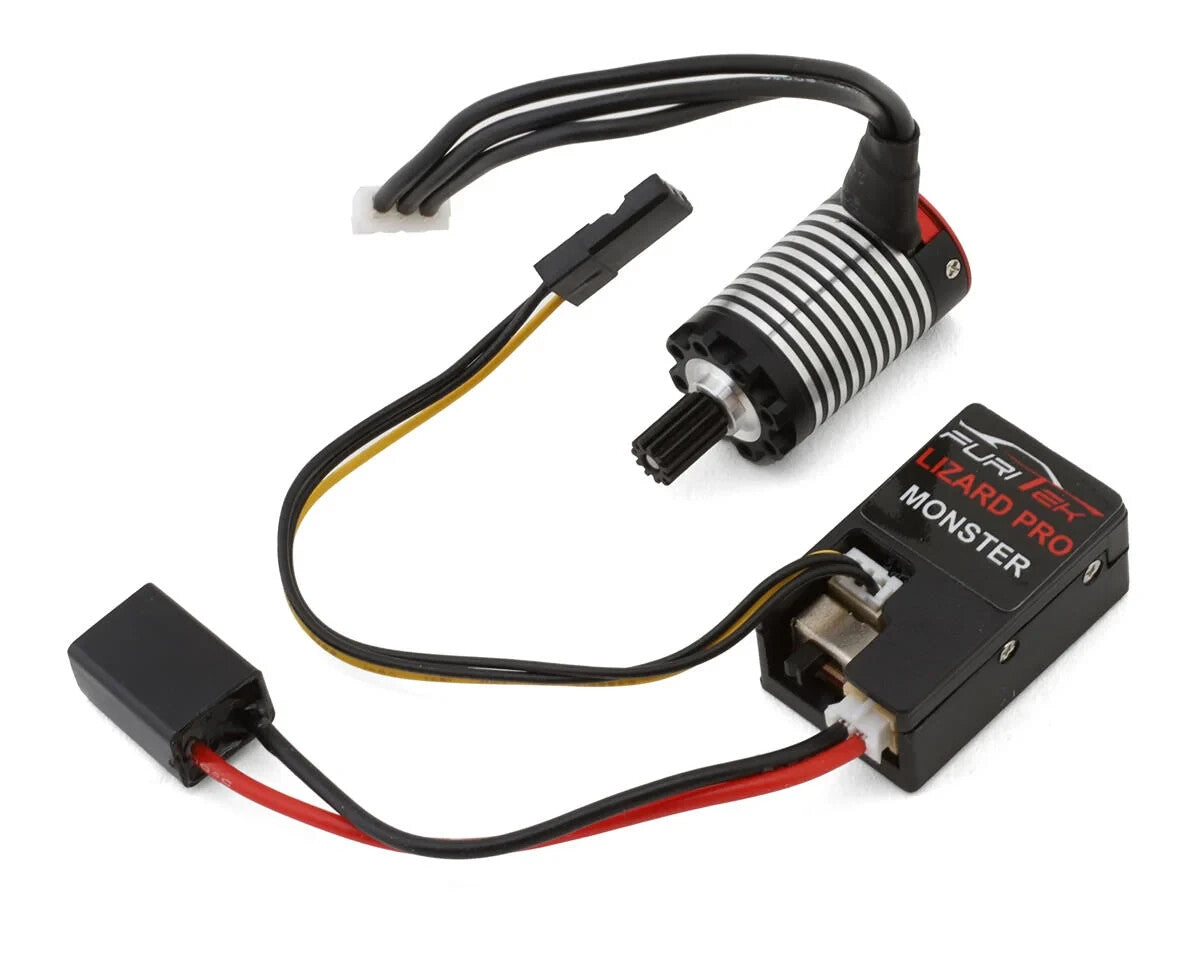

Furitek Traxxas TRX4M Monster brushless power system. Features the small size yet very powerful and fast Furitek Greyhound 1410 7500kV motor with the proven Lizard Pro Electronic Speed Controller. The Greyhound with special firmware from the Lizard Pro ESC is designed with high power for monster trucks to provide you with a powerful and reliable system. This power system is a complete drop-in/plug-and-play combo for the Traxxas TRX-4M allowing you to conveniently upgrade your TRX4-M to the brushless power it deserves! With the Furitek FuriCar mobile phone app and wireless module, users can set up any parameters on the fly without touching the truck, creating seamless adjustments for their favorite settings.
Features:
- ESC:
- Support Sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug and Play designed for the Traxxas TRX-4M micro truck
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery
- Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Real-time telemetry up to 10Hz
- Built-in power switch
- Motor:
- 2 Pole strong magnetic rotor hi-torque motor design
- High purity and higher temperature copper windings, lower copper losses, maximizes efficiency
- Super thin (0.2mm) stator lamination further maximizes efficiency
- High RPM ABEC5 bearings
- Precision balanced rotor, smoothness for best reliability and maximum 60,000 RPM
- CNC machined 6061 T6 aluminum heat sink vein can design
- Precision engineered for maximum energy conversion
- Specially designed end cap with side locking screws that firmly secures the end cap and PCB
Specifications:
- ESC:
-
Scale: 1/24
-
Type: Brushed/Brushless Switchable
-
Waterproof: No
-
Input Voltage: 2-3S LiPo
-
BEC Voltage: 5V or 6.5V
- Current
-
Continuous: 30A
-
Burst: 50A
-
Size (LxW): 28x15.5mm
-
Weight: 3.7g
-
Programmable: Built-in wireless
Motor:-
KV: 7500kV
-
Pole: 2P
-
Input Voltage: 2-3S LiPo
-
Resistance: 0.7 Ohms
-
No Load Current(@7.4V): 0.3A
-
Size (Diameter x Length): 15.5x25mm
-
Shaft (Diameter x Length): -
-
Weight: 17g
-
Application: 1/24 & 1/18 Monster Trucks

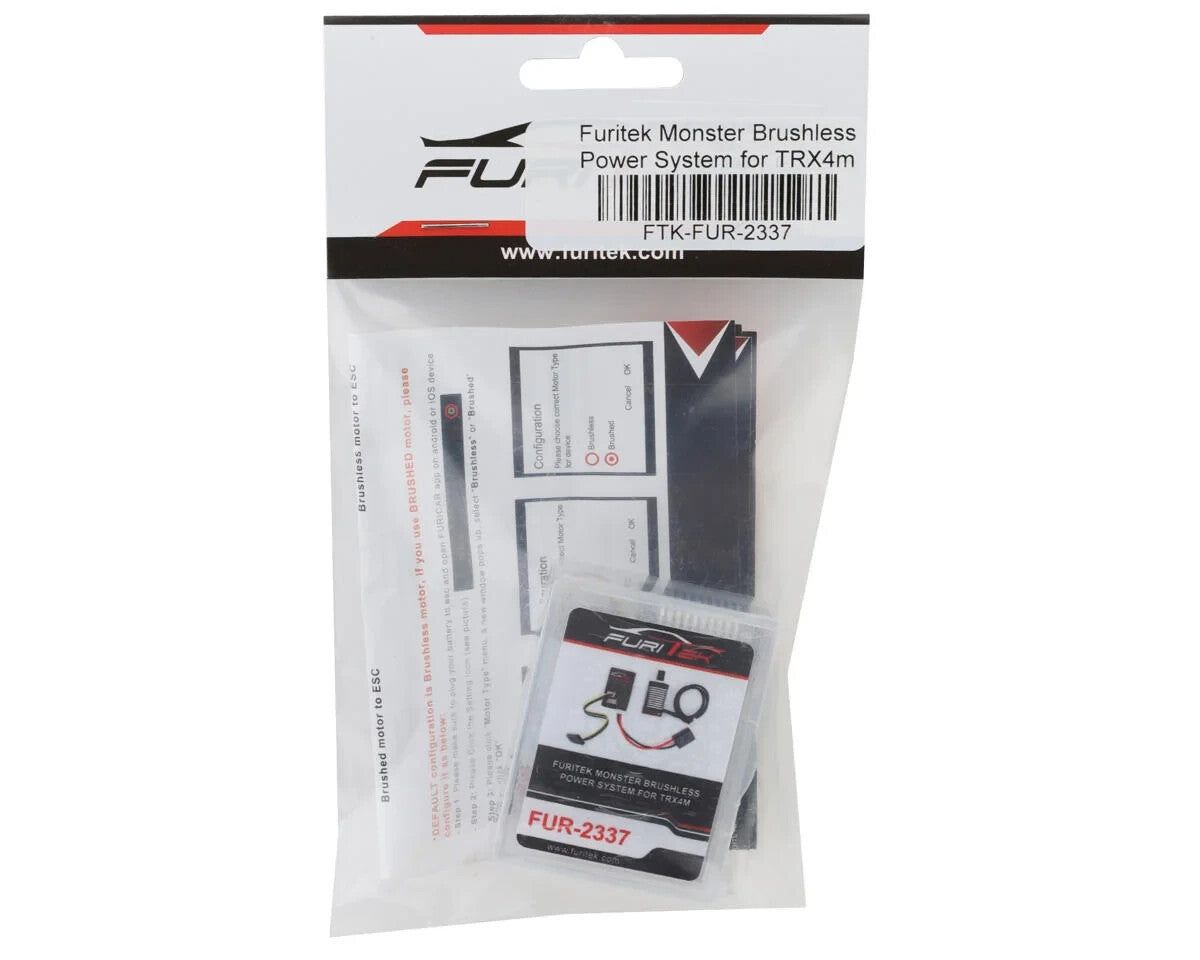

Includes:
- (1) Lizard Pro 30A/50A Brushed/Brushless ESC
- (1) Greyhound 1410 7500KV brushless motor
- (1) CNC Steel Pinion
