Description
ESC Combo Overview:

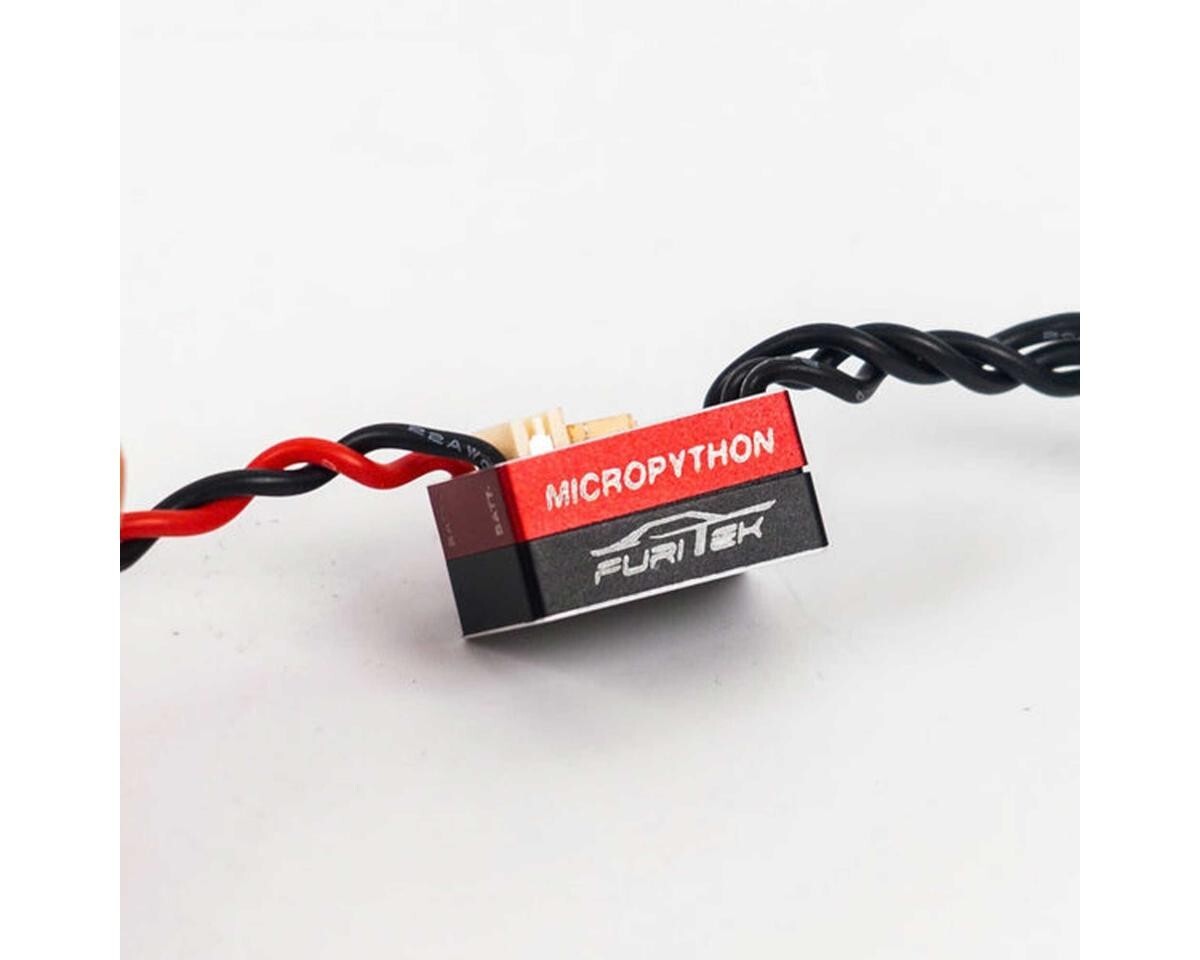

This is the MicroPython 25A Brushed/Brushless ESC from Furitek. Designed to revolutionize micro crawler performance, this ultra-compact ESC combines cutting-edge technology with unmatched space-saving features, making it the ultimate solution for tight truck builds. Its innovative upward wire configuration, powerful built-in BEC, and smooth control algorithm ensure superior performance without compromise.
Features:
- FOC (Field-Oriented Control) technology
- Live tuning via Furicar app
- Super slow and ridiculously smooth throttle control
- Micro size and lightweight for tight spaces
- Waterproof and dustproof CNC aluminum case
Specifications:
-
Suggested Application: 1/18-1/24 Crawlers
-
Motor Type: Brushless/Brushed
-
Input Voltage: 2-3S LiPo (7.4-11.1V)
-
Continuous Current: 25A
-
Peak Current: 50A
-
Dimensions (LxWxH): 0.87x0.55x0.39in (22x14x9.8mm)
-
Weight: 0.27oz (7.6g)
-
Motor Limits: -
-
BEC Voltage: 5.5V/7.4V
-
BEC Continuous Current: 5A
-
BEC Peak Current: -
-
Motor Connector: 3 Pin
-
Battery Connector: JST
-
Motor Wire: -
-
Battery Wire: -
-
Programmable: Furicar App
Includes:
- (1) MicroPython 25A Brushed/Brushless ESC
- (1) Wireless module for app control
- (1) Wiring Harness
Needed to Complete:
- 2-3S lipo battery
- Compatible motor (brushed or brushless)
- Micro crawler setup
