Description
Motor Overview:

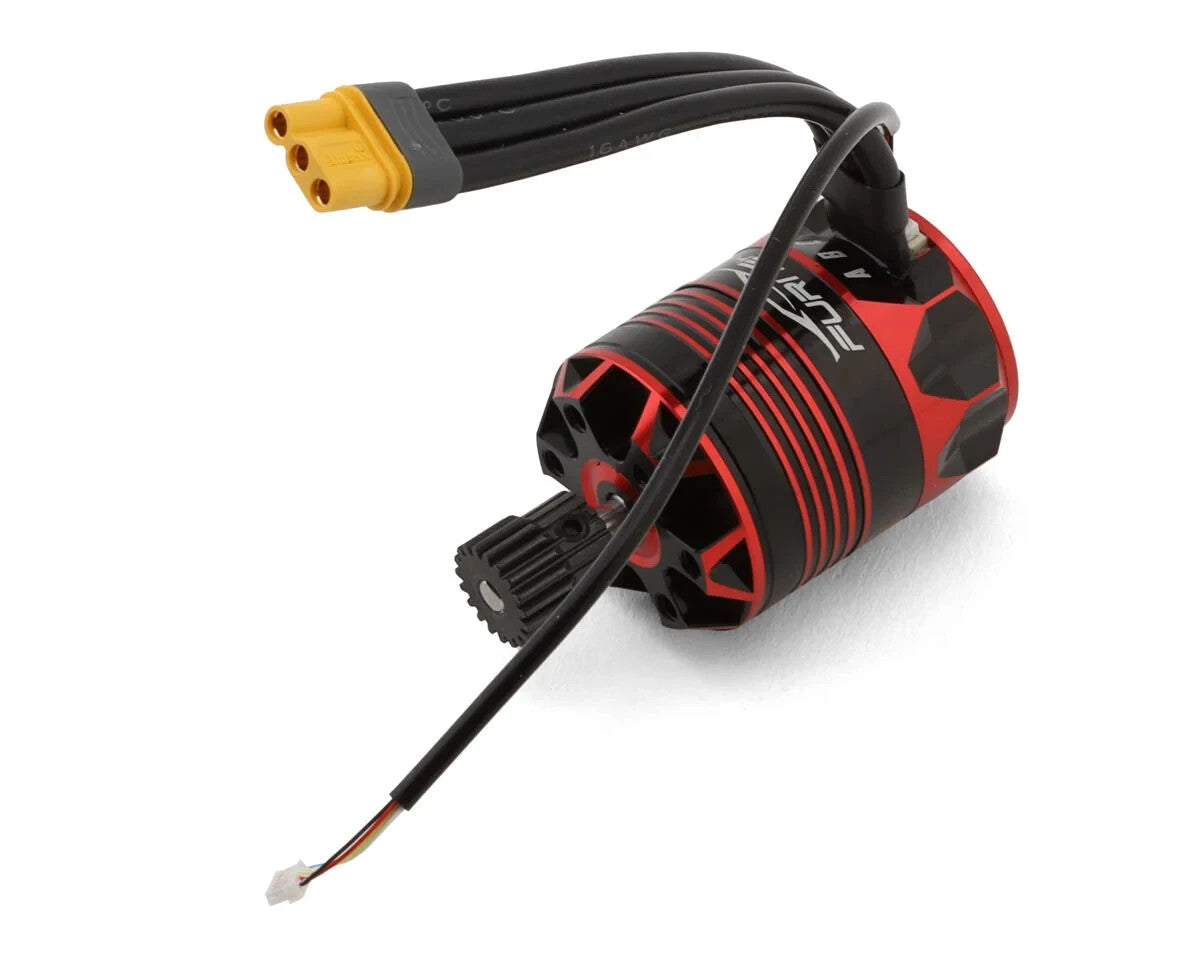

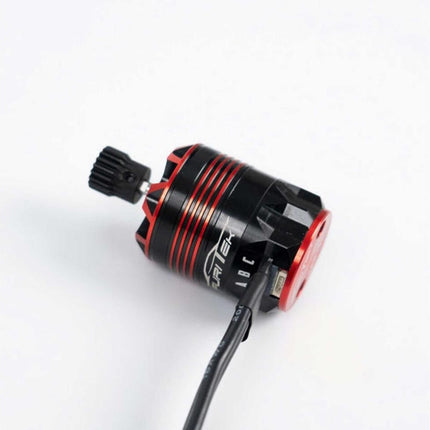

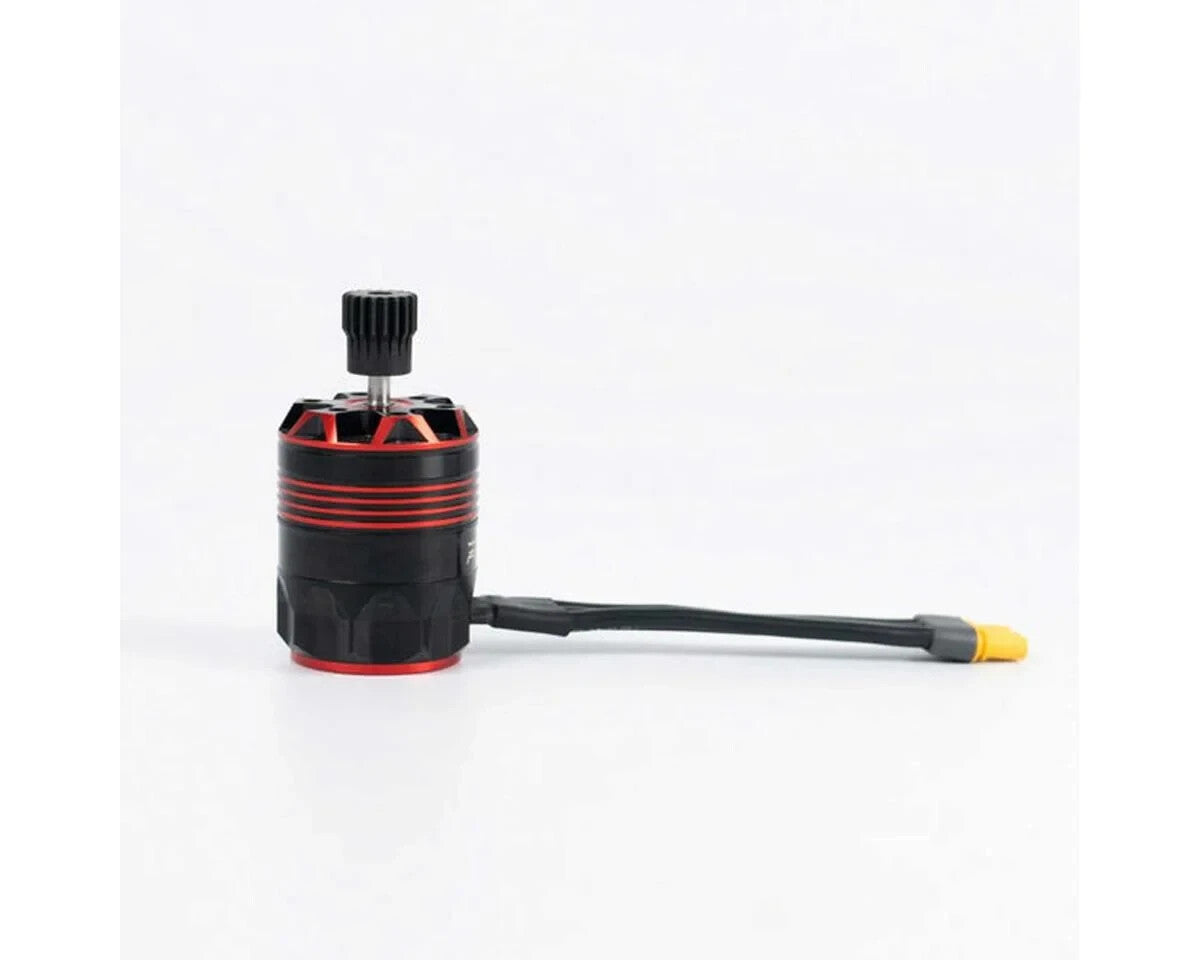

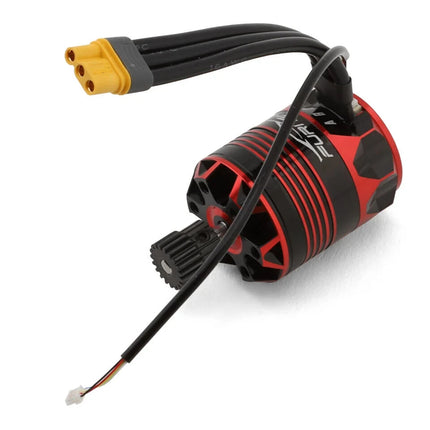

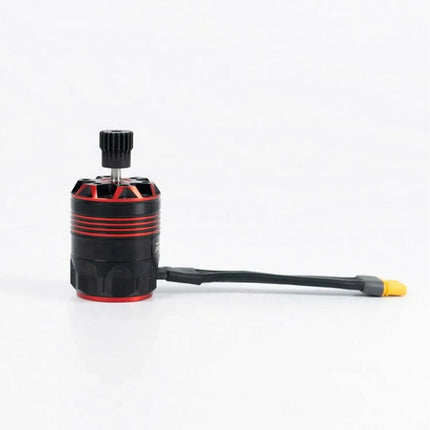

The Furitek IMPULSE PRO 5600kV Brushless Sensored Motor is designed for high-performance 1/18 scale RC vehicles, including the Arrma Grom and Losi NASCAR platforms. This high-torque, sensored motor delivers smooth and precise throttle control, offering a responsive driving experience. Equipped with advanced features like high-purity copper windings and super-thin stator laminations, the motor minimizes copper losses, reduces eddy currents, and maximizes efficiency. This makes it the perfect choice for hobbyists looking for a reliable, powerful motor that guarantees exceptional performance and durability.
Features:
- 4-pole high-torque motor for smooth and precise throttle control
- High purity copper windings for reduced copper losses and improved efficiency
- Super thin stator laminations to minimize eddy currents and enhance performance
- Precision balanced rotor for improved smoothness and maximum RPM
- CNC machined billet aluminum heatsink can for optimal heat dissipation
- Lightweight and compact design for responsive handling and control
Specifications:
-
Suggested Application: 1/18
-
Size: 5600kV
-
Type: Brushless-Sensored
-
Voltage: 2S LiPo
-
Watts: 450W
-
Connector: 3 Pin
-
Dimensions: 1.102x1.377in (28x35mm)
-
Shaft Length: 0.47in (12mm)
-
Shaft Diameter: 0.124in (2mm)
-
Weight: 2.11oz (60g)
Includes:
- (1) Furitek 5600kV IMPULSE Brushless Sensored Motor
- (1) Sensored Cable
- (1) Signal Cable
