Description
Brushless Combo Overview:
Furitek Torpedo RXGT5 Brushless Power System for Axial SCX24. The Torpedo RXGT5 Brushless Power System is a high-performance upgrade designed specifically for Axial SCX24, 1/24, and 1/18 micro crawlers. Using Furitek's advanced Field-Oriented Control (FOC) technology, this power system delivers precise and buttery-smooth control. Compatible with both Sensorless brushless and brushed DC motors, this system is engineered to elevate your micro crawler's performance with its lightweight and compact design. The Torpedo RXGT5 Brushless Power System offers easy programming through its built-in wireless capability, ensuring seamless control. Its durable, water and dustproof CNC aluminum case, along with a powerful, switchable HV BEC, guarantees reliability in any terrain.
The Cedar Inrunner Brushless Motor with Steel Pinion for Axial SCX24 is a top-tier upgrade, offering unmatched efficiency and performance in a compact, waterproof, and dustproof design. Featuring a specially engineered 12-pole Inrunner configuration, this motor delivers exceptional torque and control, making it ideal for slow-speed crawling while still providing high-speed capabilities when needed. Its precision-balanced rotor, combined with high-purity copper windings and ultra-thin 0.2mm stator laminations, ensures maximum energy conversion and minimizes heat loss. Encased in CNC-machined 6061 T6 billet aluminum, the motor not only dissipates heat effectively but also features a sleek, anodized red and black finish that adds to its durability and style. The inclusion of high RPM ABEC5 bearings and a perfectly fitting steel pinion gear ensures smooth, reliable operation on SCX24 platforms. With the added convenience of easy installation in tight spaces and the resilience to handle rugged terrains, the Cedar motor is the ultimate power solution for serious crawling enthusiasts.
Features:
- The ultimate upgrade for 1/24 & 1/18 micro crawlers
- Support Sensorless brushless and brushed DC motors (Default is brushless)
- FOC (Field-oriented control) technology
- Buttery smooth control
- Built-in powerful up to 8.4V HV switchable BEC
- Super compact and lightweight design
- Pressed steel pinion gear specially for SCX24 platforms
- Super easy programming via built-in wireless
- Compatible with FLYSKY FS-GT5 & Radio Master MT12 4-in-1 protocols
- Water and dustproof design with a CNC aluminum case
Specifications:
- ESC:
-
Applications: 1/24 & 1/18 Crawlers
-
Type: Brushless - Sensorless
-
Input Voltage: 2S-3S LiPo (7.4-11.1V) LiPo
-
BEC: 5.5-8.4V Switchable
- Current:
-
Continuous: 40A
-
Peak: 70A
-
Dimension (LxWxH): 0.75x1.45x0.6in. (19x37x15mm)
-
Weight: 19g (0.67oz)
- Motor:
-
Motor Type: Inrunner
-
KV: 3456kV
-
Pole: 12-Pole
-
Resistance: 0.17Ohm
-
LiPo: 2-3S
-
Size: 0.7x1in. (18x25mm)
-
Weight: 20g (0.7oz)
-
Application: 1/24 & 1/18 Crawlers

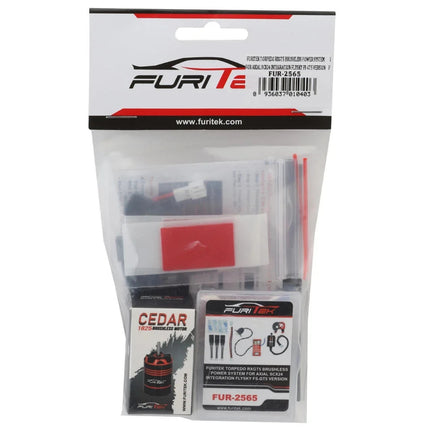

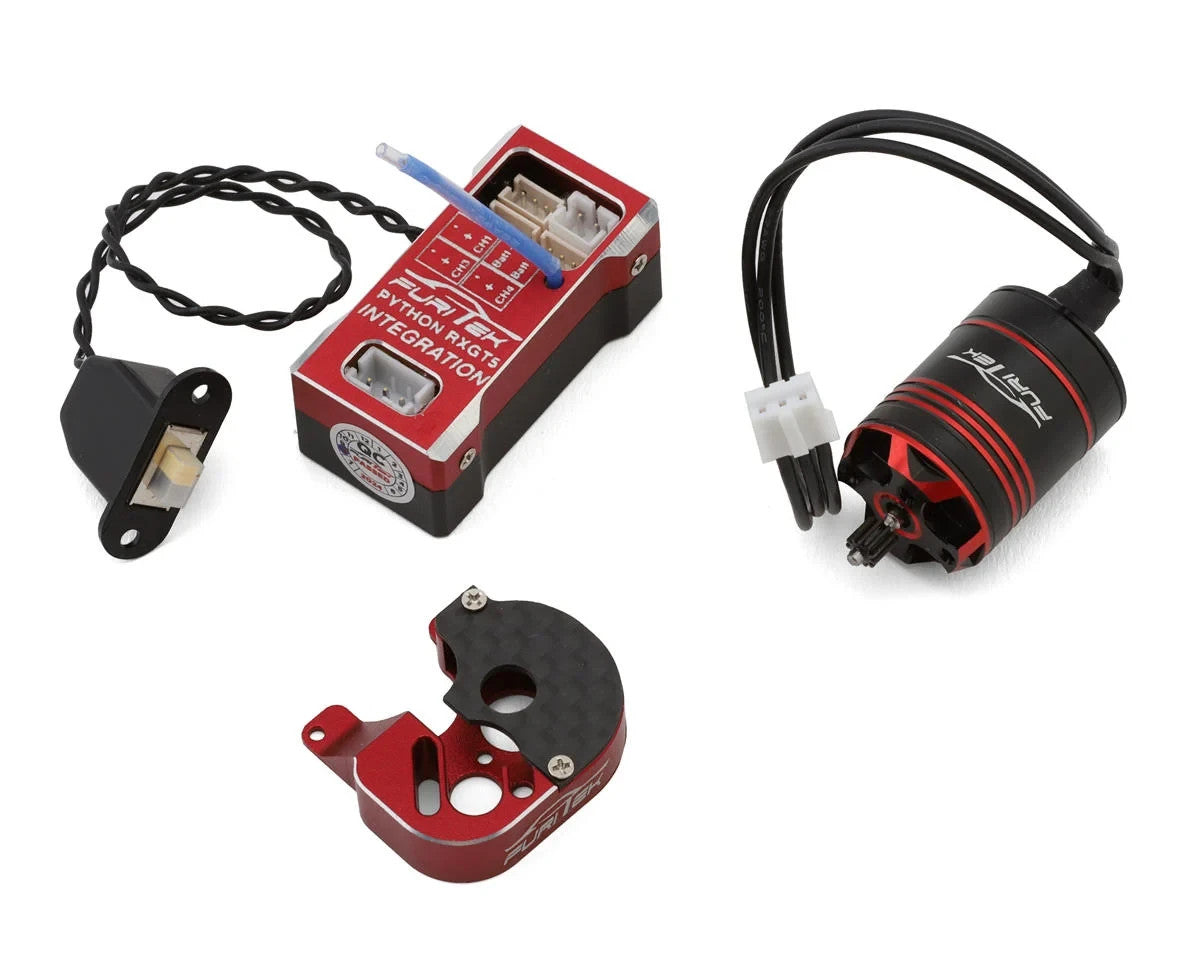

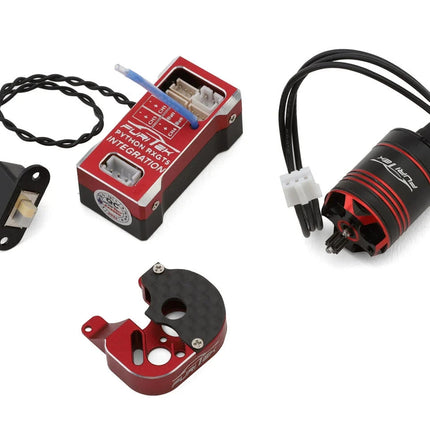

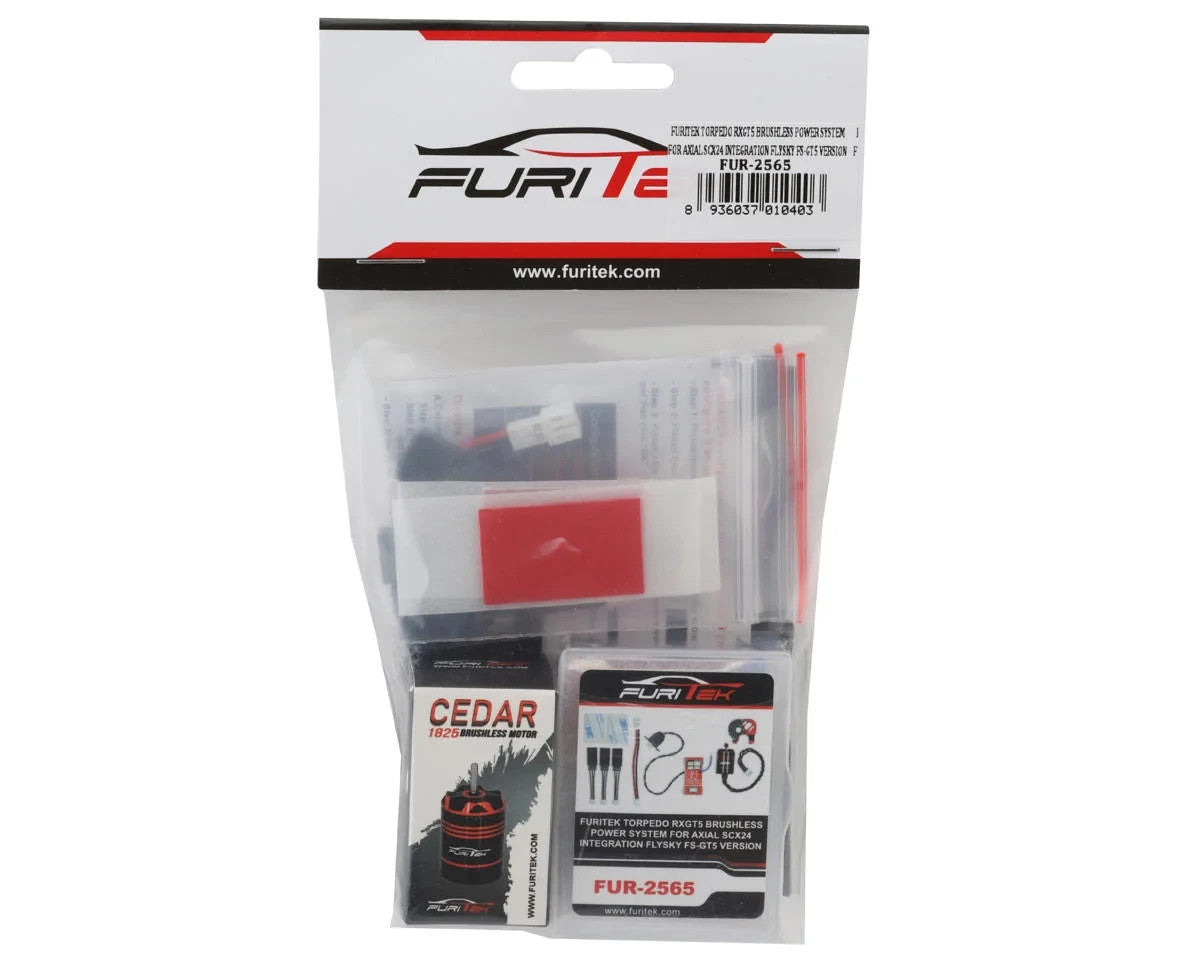

Includes:

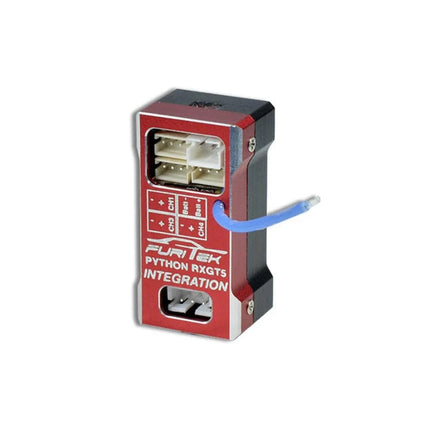

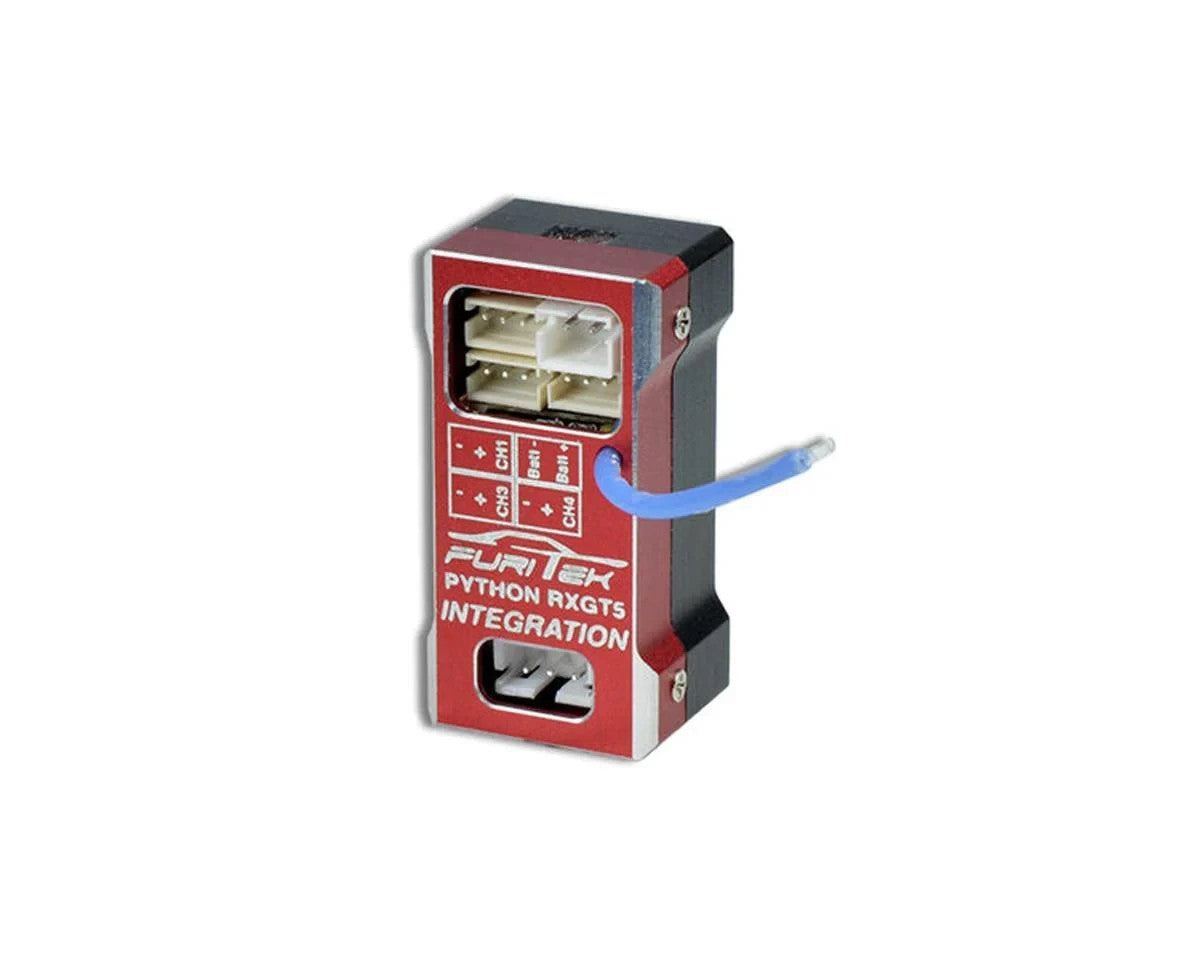

- (1) Python RXGT5 ESC/Receiver Unit
- (1) Cedar Motor for SCX24

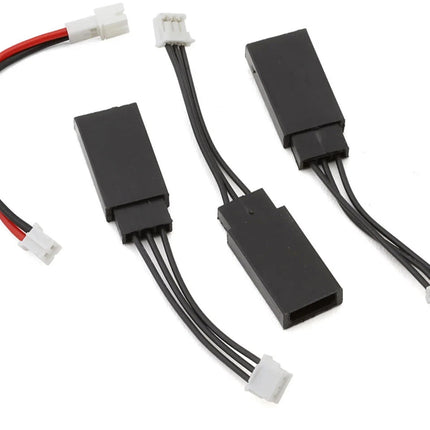

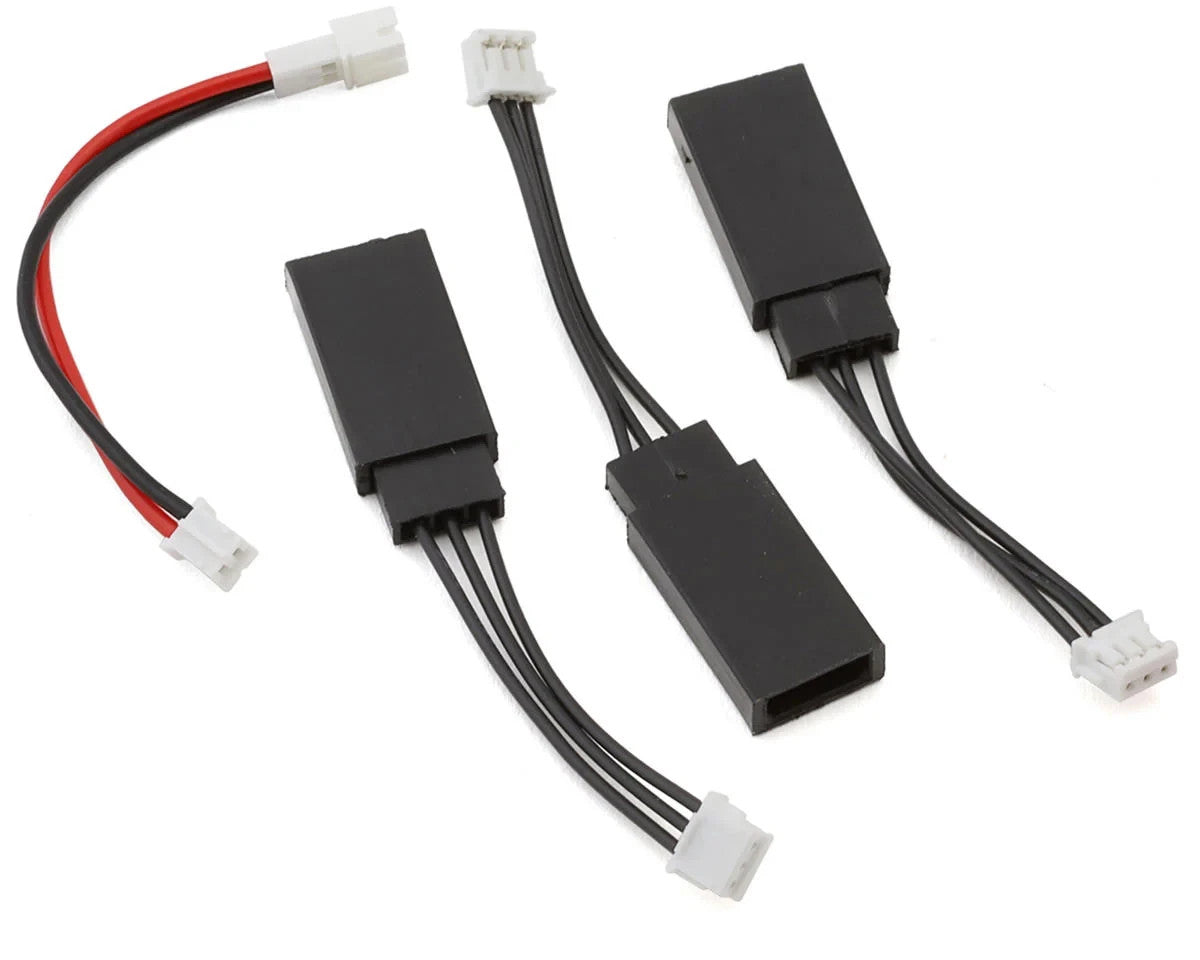

- (1) JST-RCY TO 2-Pin JST-PH Cable
- (1) Servo Extension cable
- (1) Water-proof power switch
