Description

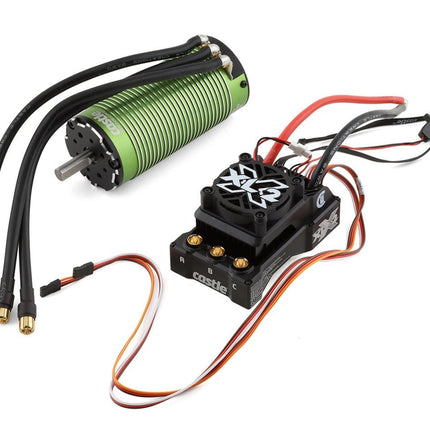

The Castle Creations Mamba XLX 2 1/5 Scale Sensored Brushless Combo with 1721 1260Kv motor is a product guaranteed to redefine the limits of large scale RC. Though it shares the name of its predecessor, the Mamba XLX, this is an ESC that lives in a class of its own.
Reengineered from the ground up, the Mamba XLX 2 is packed with a potent combination of design, hardware and software advancements that will set a a higher standard for large-scale power systems. Designed for 1/5 Scale models weighing up to 42 lbs, the XLX 2 is an incredible power upgrade for the Arrma Kraton 8S and Outcast 8S, or Traxxas X-Maxx models! If you are looking for the ultimate upgrade for your speed run, drag racing or off-road rigs - the XLX 2 is a true heavyweight, with no contenders.
NOTE:
- Some vehicles may require aftermarket parts to allow ESC and/or motor fitment.
- The XLX 2 is not meant to operate while fully submerged in water.
- ESC fan is not water resistant
Features:
- Sensored, Sensorless and SmartSense™ running modes
- Powerful Integrated 20A Peak Adjustable BEC (5.25V-8.0V)
- Premium forged heatsink for superior airflow and increased heat dissipation
- Oversized factory equipped thermally controlled 50mm fan
- Waterproof design for all weather conditions
- ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the components and promote efficient heat transfer
- Data-logging capability to capture and record performance data from your vehicle
- Auxiliary wire functionality for “on-the-fly” adjustments using your transmitter
- Audible alerts for easy diagnosis of possible issues such as motor over-temperature and low voltage cutoff
- Convenient transmitter programming for six adjustable settings such as cutoff voltage and drag brake
- Easily tune and update ESC with USB and Bluetooth™ programming options
- Castle Link USB programming kit (coupon included with purchase)
- Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store
- Proudly designed and manufactured in Olathe, Kansas USA and backed by Castle Creations’ 1-year warranty
Specifications:
- ESC:
-
Input voltage range: 3S-8S LiPo
-
Length: 3.98” (101.2mm)
-
Width: 2.49” (63.3mm)
-
Height: 2.2” (55.8mm)
-
Weight: 13.1oz (371g)
-
On/Off Switch: Yes, Waterproof
-
Cooling Fan: Yes, thermally controlled factory equipped (50mm) fully removable**
-
Running Modes: Sensored, Brushed, Sensorless and SmartSense™ when paired with a Castle 4-POLE 12-SLOT Sensored Motor. (Dust cover included in package for non-sensored operation)
-
Wire Gauge: 8AWG
-
Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX, T7PXR Transmitters
- Motor:
-
Application: 1:5th Scale vehicles weighing up to 25lbs such as the Arrma Kraton 8s, Arrma Outcast 8s, Traxxas X-Maxx
-
Input Voltage Range: 3S(11.1V) - 8S(33.6V) LiPo
-
Kv Rating: 1260Kv
-
Max. RPM: 45.000
-
Diameter: 1.87" (47.6mm)
-
Length: 3.99" (101.2mm)
-
Shaft Size: 22mm(Length), 8mm(Diameter)
-
Weight(w/wires): Approx. 44oz/1.25kg
-
Mounting Hole Specifications: (Holes) 4mm & 3mm / (Spacing) 25mm
-

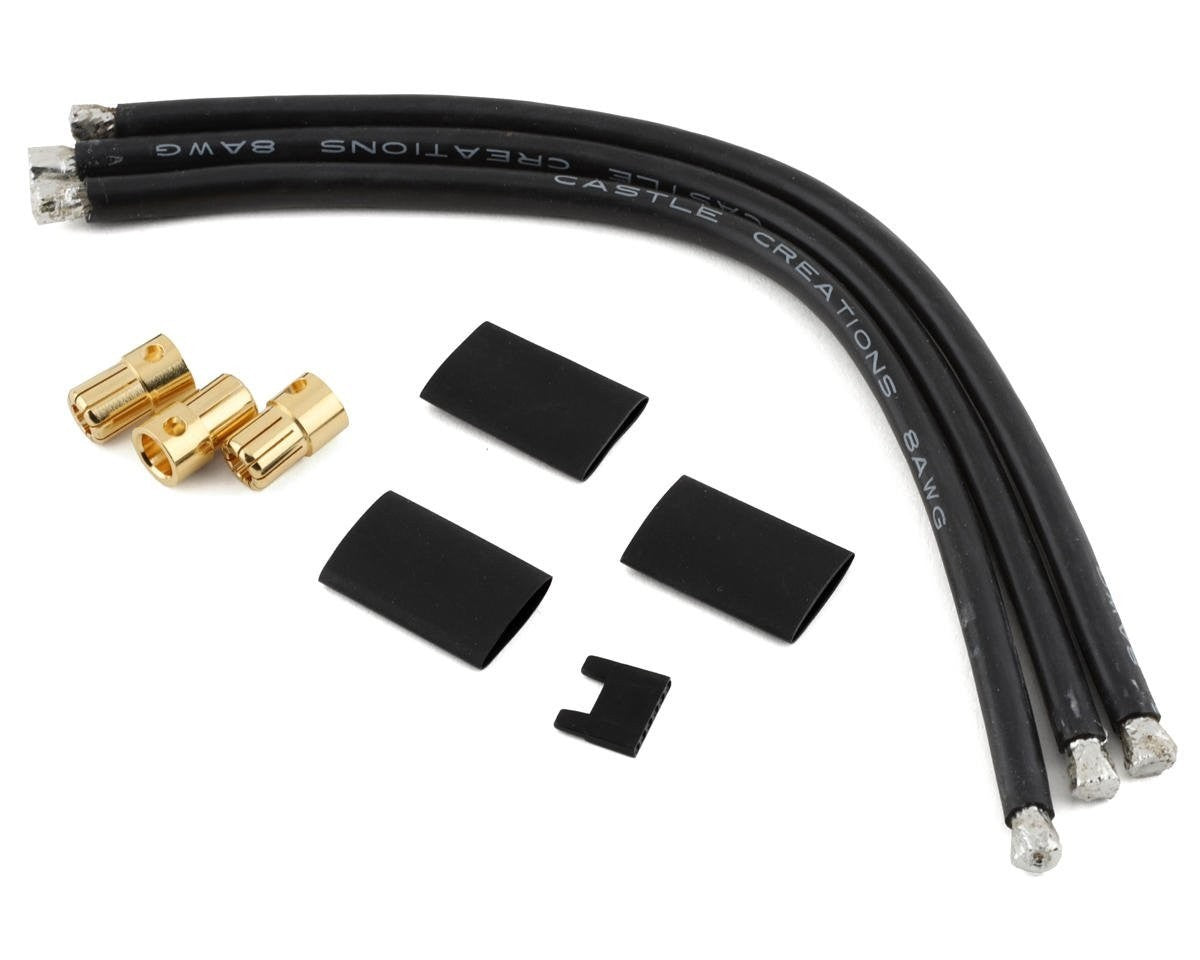

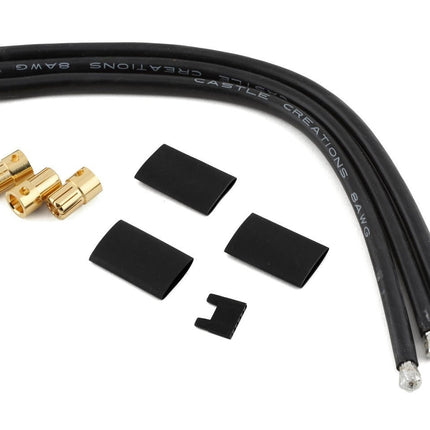

Connectors: 8.0mm male connectors, 300mm Direct Connect Sensor Wire
Includes:
- (1) Mamba XLX2 ESC

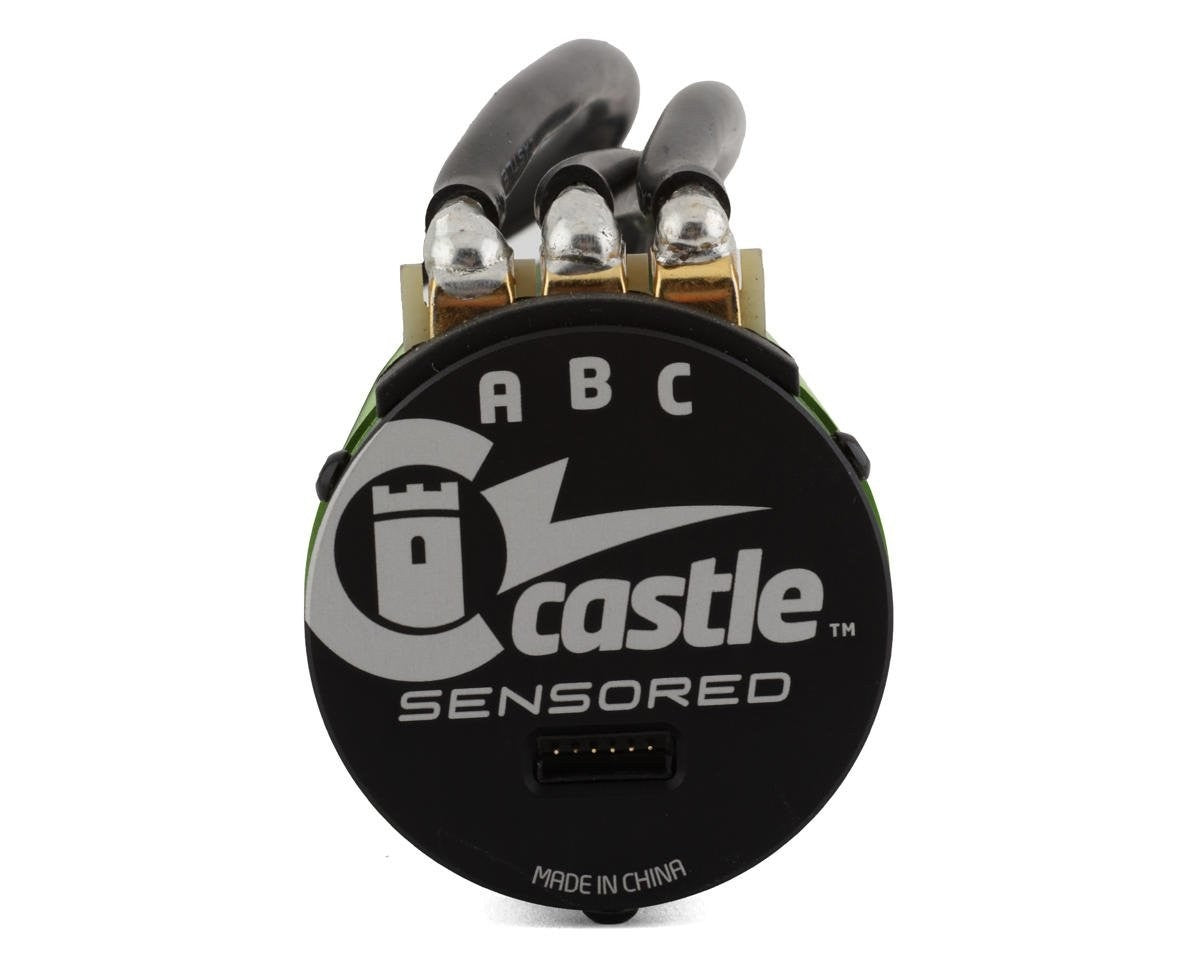

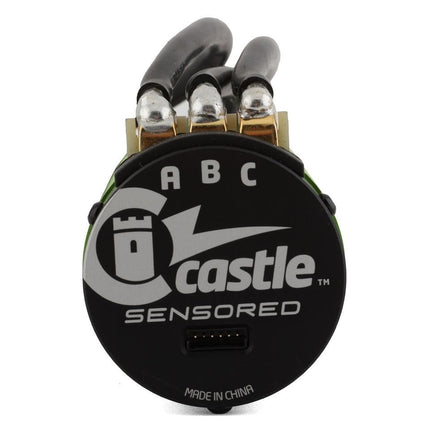

- (1) 1721-1260kv Sensored Brushless Motor

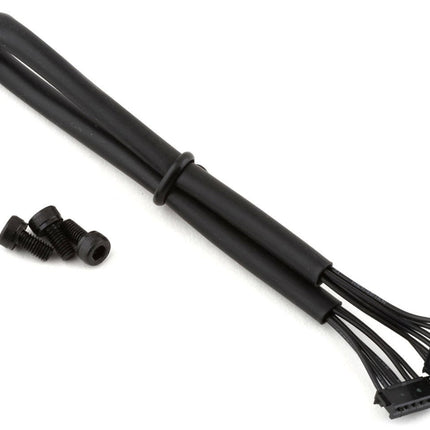

- (1) 300mm Direct Connect Sensor Wire
- (1) Mamba XLX2 Quick Start Guide
- (1) Coupon for free Castle Link USB
- (1) Mamba Decal Sheet
