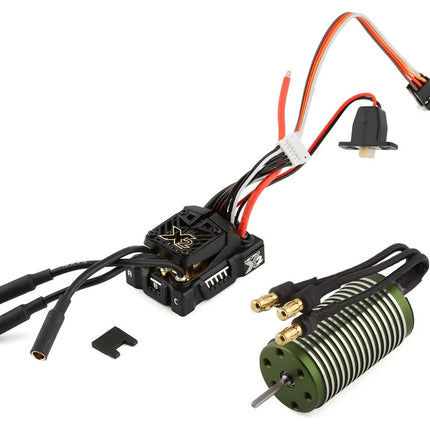

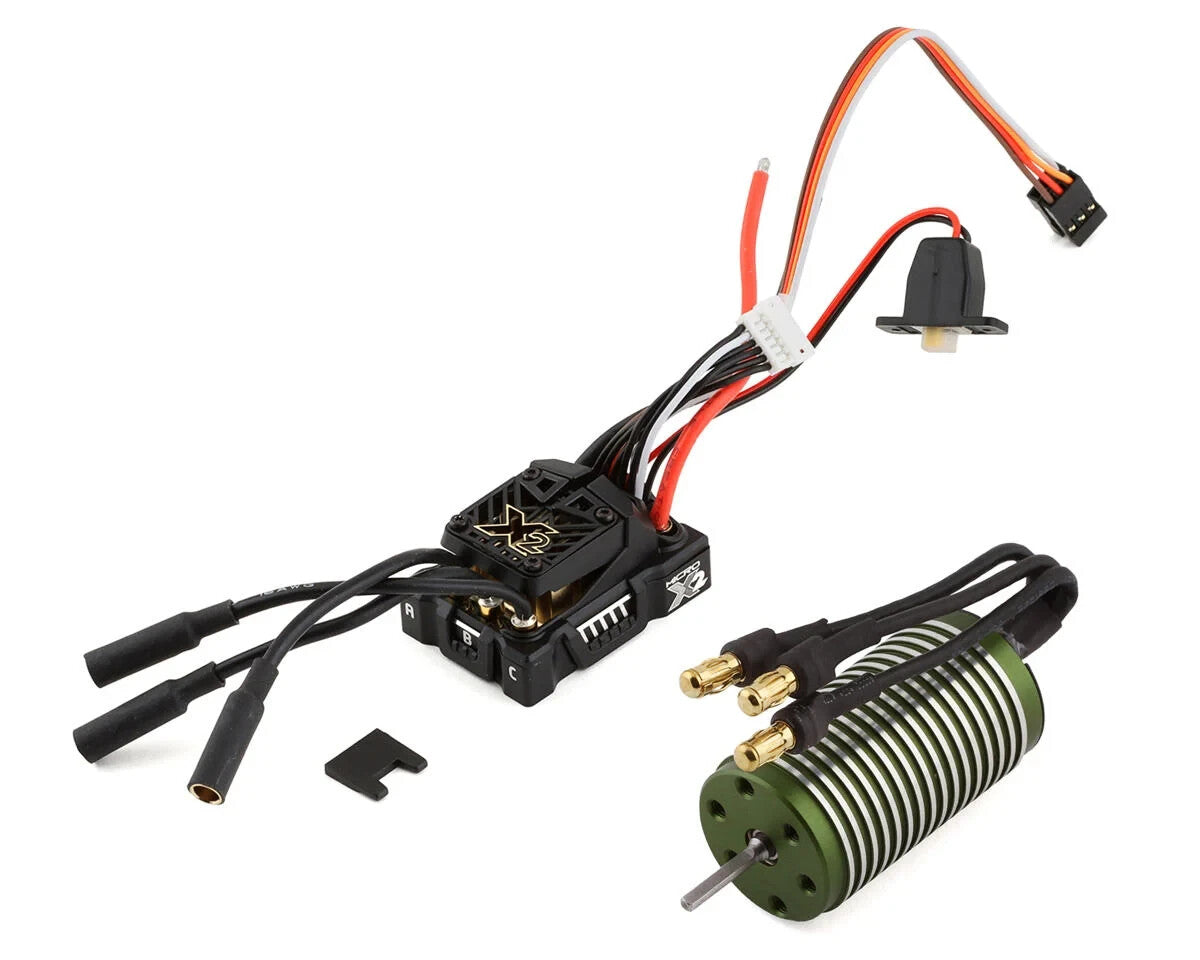

Castle Creations 010-0169-02 Mamba Micro X2 WP 1/18 Scale Brushless Combo 5300Kv CSE010016902

    Description

    The Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless Combo with 0808-5300Kv motor is the perfect upgrade for 1:18 scale RC vehicles, up to 3S LiPo and weighing in at up to 2lbs. Vehicles include: Losi Mini-T 2.0, Traxxas LaTrax Rally, Traxxas LaTrax Teton, and Axial Yeti Jr.

    The Mamba Micro X2 ESC increases the maximum input voltage to 4s, with added DATA LOGGING and CRYO-DRIVE TECHNOLOGY that allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof* and offers SENSORED MOTOR SUPPORT. This is the perfect upgrade for 1:18th scale 2WD or 4WD vehicles up to 2.25 lbs. The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing).

    ESC Features:

    • Input Voltage range 2S-4S
    • Waterproof design
    • Sensored Motor capable (with optional sensor harness)
    • Convenient transmitter programming for six common adjustable settings
    • Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
    • Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
    • Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake
    • Audible Alerts that will notify you of possible issues with calibrations and error conditions
    • Designed and manufactured in Olathe, Kansas and is backed by manufacturer 1-year warranty
    Specifications:

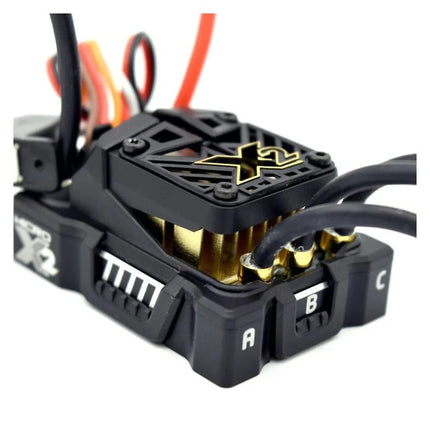

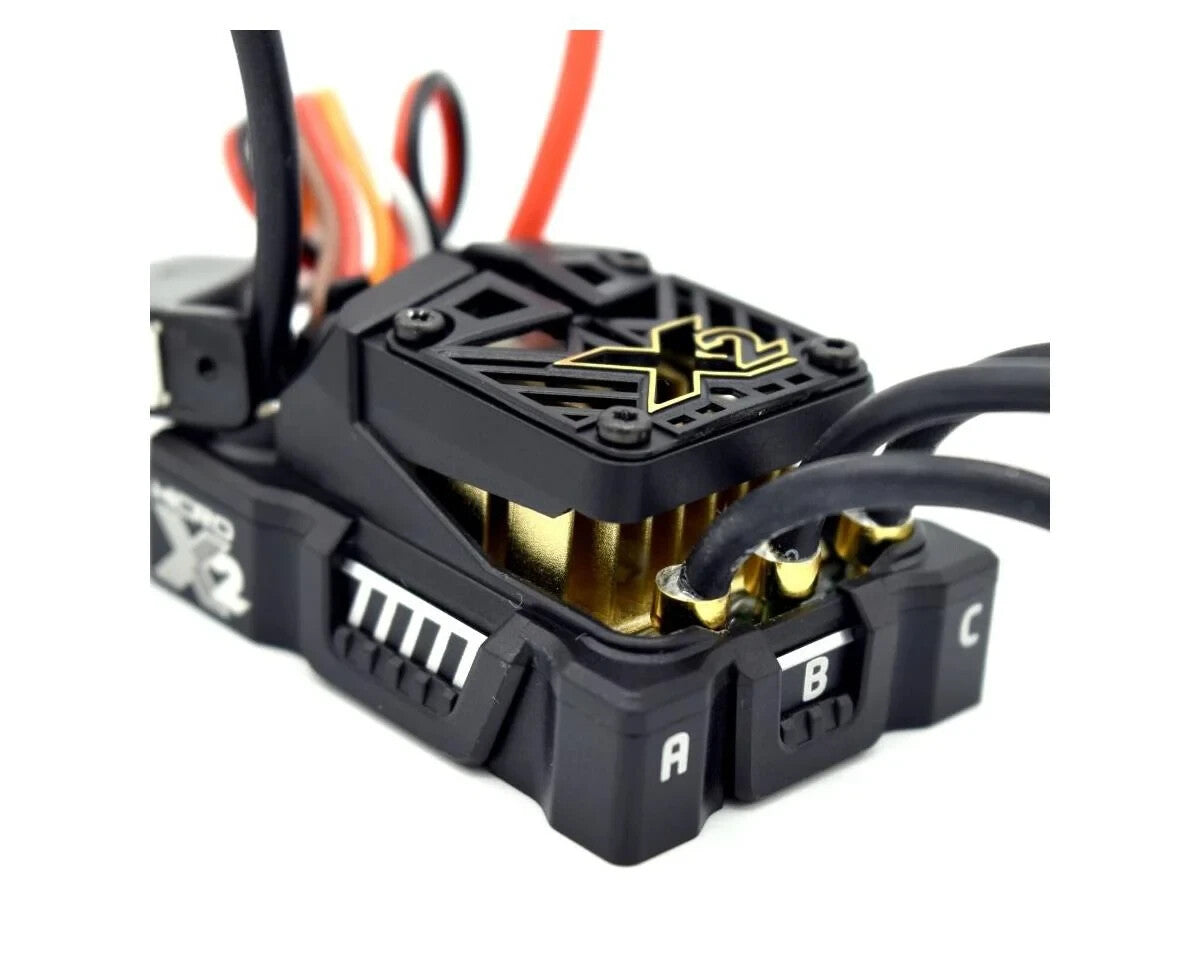

    • ESC:
      • Input Voltage Range: 2S-4S LiPo (16.8V Max)
      • BEC: 2A Peak, 5.5v or 7.5v (5.5v default)
      • Operating Environment: Waterproof* design allows for use in nearly any environment
      • Brake: Proportional
      • Reversible: Yes, but may be disabled
      • On/Off Switch: Yes, waterproof
      • Cooling Fan: Not included
      • Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
      • Weight (with wires): 1.66 oz / 47 grams
      • Connectors: 3.5 mm bullets
      • Application Guidelines: 1:18 scale RC hobby vehicles weighing up to 2.25lbs.
      • Recommended Motors:
      • Castle 0808 4100Kv: Max Cells: 3S Lipo or 8 NiMH
      • Castle 0808 5300Kv: Max Cells: 3S Lipo or 8 NiMH
      • Castle 0808 8200Kv: Max Cells: 2S Lipo or 8 NiMH
      • Max. Recommended Vehicle Weight: 2.25 lbs, with batteries, ready-to-run
      • Programmability: Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
      • Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.

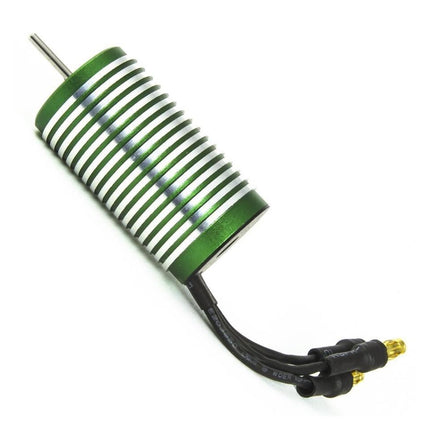

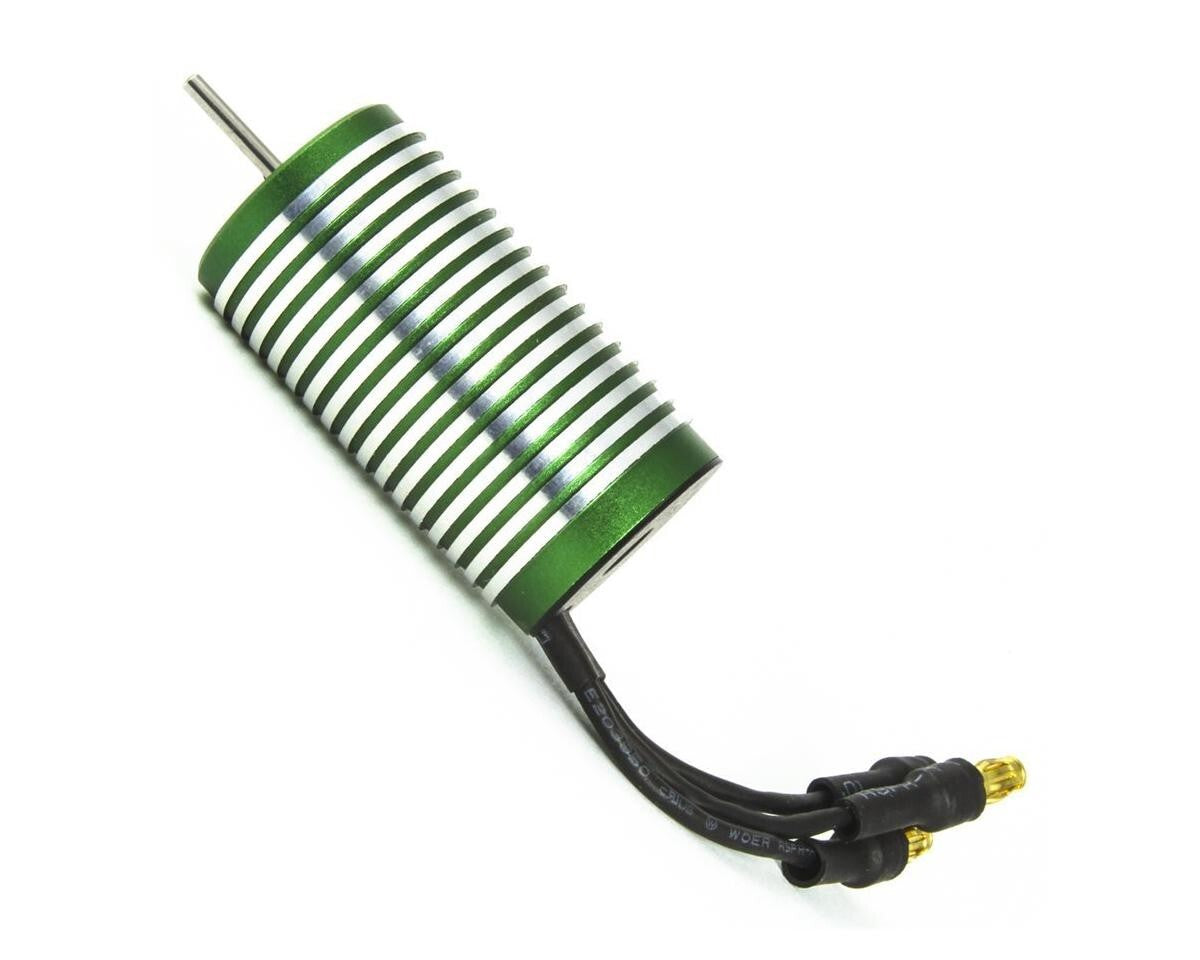

    • Motor:
      • Input Voltage Range: 2S-3S LiPo, 4-9 cell NiMH
      • Kv: 5300
      • Max. RPM: N/A
      • Size: Length: 1.5" (38mm)
      • Diameter: 0.79" (20mm)
      • Weight (w/wires): 1.8 oz. (50g)
      • Shaft Size: Length: N/A
      • Diameter: 0.08" (2mm)
      • Mounting Hole Specifications: 2.5mm holes @ 1/2”, 14MM, 5/8”
      • Cooling Fan: No
      • Connectors: 3.5mm male bullets
      • Application Guidelines: Up to 3S LiPo and weighing in at up to 2lbs. Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo)
      • Max. Recommended Vehicle Weight: 2lbs
    Product Use Statements:
    • Applying voltages higher than 16.8 volts will cause irreparable damage to your controller, voiding your warranty.
    • Minimum recommended battery capacity for 1:18 scale vehicles is 1500mAh. Castle recommends using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
    • Mamba Micro X has 3.5mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. Castle recommends a high current connector rated for at least 40 amps.
    • Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, Castle suggests users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
    • Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
    Includes:
    • Mamba Micro X2 ESC
    • 0808-5300Kv Brushless Sensorless Motor
    • Coupon for free Castle Link USB adapter
    • Quick Start Guide
    • Castle Decals
          Needed to Complete:
          • Battery Connector: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.
