Description
Large Scale Performance with Advanced Programming Features
The Castle Creations Cobra 5 8S ESC is engineered to push the limits of 1/7th and 1/5th scale RC performance. With cutting-edge 32-bit processing power, enhanced data logging, and precision braking adjustments, this ESC delivers unparalleled control and efficiency. Its advanced current-sensing and thermal protection system ensures durability, even in the most demanding high-load applications. Whether tackling rugged off-road terrain or high-speed circuits, the Cobra 5 provides the reliability and power serious RC enthusiasts demand.
About the Cobra 5 ESC
Advanced Performance and Data Logging
The Cobra 5 introduces enhanced data logging capabilities, doubling the sample frequency of previous models while increasing logging time by eight times. The addition of ESC electrical motor timing data and an onboard accelerometer provides deeper performance insights, allowing users to fine-tune their setups with precision. An updated looping feature ensures continuous recording, preventing data loss and interruptions during critical runs.
Precision Braking and Tuning Control
With adjustable braking curves and independent reverse settings, the Cobra 5 minimizes drivetrain stress and enhances vehicle control. These improvements reduce the risk of snapped driveshafts and blown differentials while providing smoother throttle transitions. The highly adjustable internal BEC (ranging from 5.0V to 8.5V in 0.1V increments) offers flexibility to optimize power delivery for servos and other electronics.
Extreme Durability and Thermal Protection
Built for durability, the Cobra 5 features a rugged CNC aluminum case, waterproof epoxy sealing, and CRYO-DRIVE™ technology to minimize heat buildup. A premium forged heatsink with elliptical fins ensures superior airflow, while the oversized 50mm cooling fan actively regulates temperature. Combined with upgraded current-sensing and thermal protection, this ESC withstands aggressive, high-load driving conditions without compromising performance.
Features:
- 32-bit processing for smoother motor control
- Enhanced data logging with increased sample frequency
- ESC electrical motor timing and acceleration data logging
- Looping feature prevents data log interruptions
- Adjustable braking and reverse curves for drivetrain protection
- Highly adjustable BEC (5.0V - 8.5V in 0.1V increments)
- CRYO-DRIVE™ technology for improved thermal performance
- CNC aluminum case with waterproof epoxy sealing
- Premium forged heatsink with elliptical fins for heat dissipation
- Oversized 50mm thermally controlled cooling fan

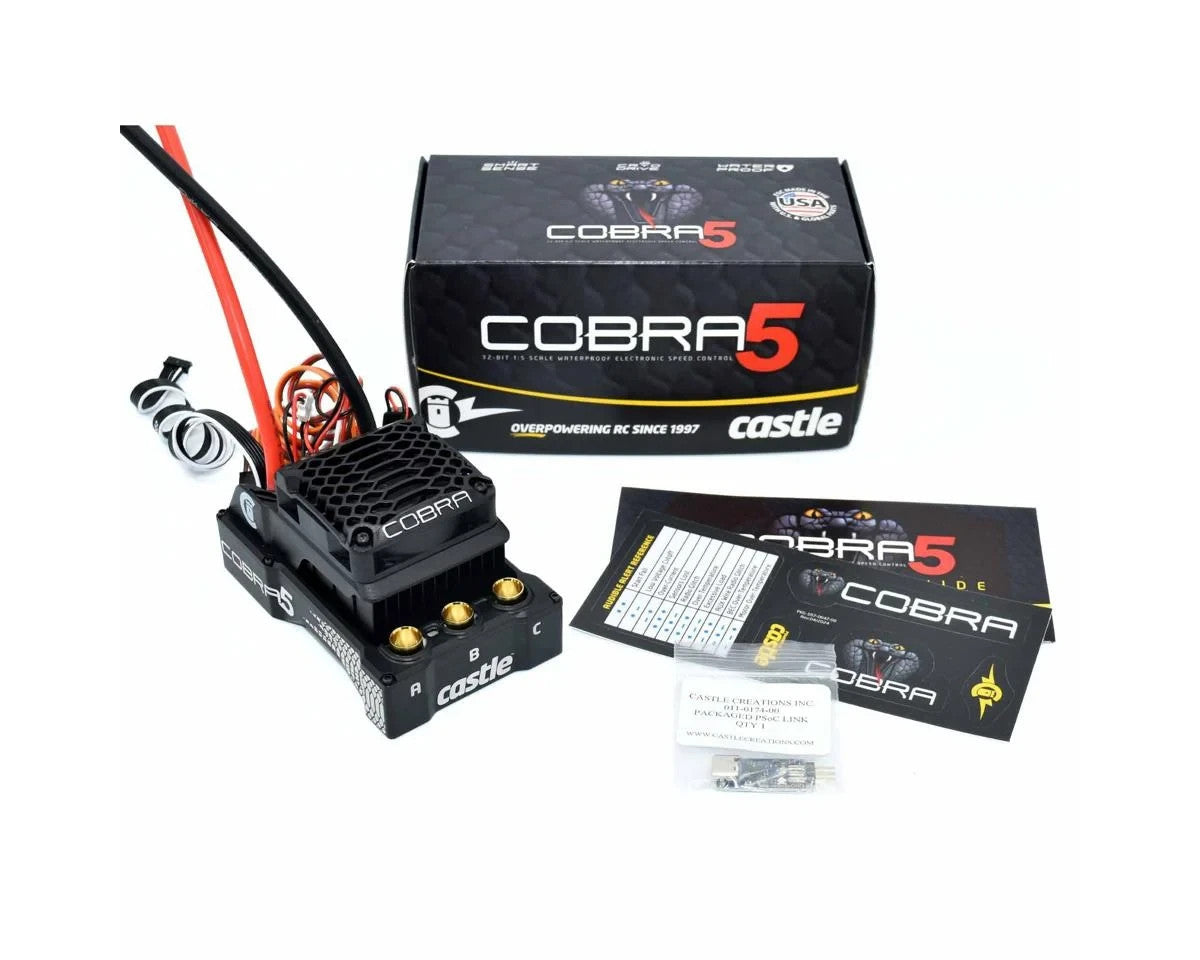

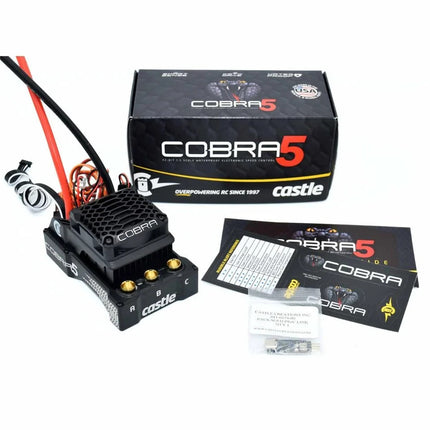

Includes:
- (1) Cobra 5 ESC
- (1) 300mm Direct Connect Sensor Wire
- (1) Castle Link V4 USB Adapter
- (1) Cobra Quick Start Guide
- (1) Cobra Decal Sheet
Specifications:
| Suggested Application |
1/5 |
| Motor Type |
Brushless - Sensored |
| Input Voltage |
3-8S LiPo (11.1-33.6V) |
| Continuous Current |
- |
| Burst Current |
- |
| Dimensions (LxWxH) |
3.98x2.49x2.35in (101.2x63.3x59.5mm) |
| Weight |
13.2oz (374g) |
| Motor Limits |
- |
| BEC Voltage |
5.5-8.5V (Adjustable) |
| BEC Continuous Current |
- |
| BEC Peak Current |
20A |
| Motor Connector |
8.0mm Bullet |
| Battery Connector |
Bare Wire |
| Motor Wire |
- |
| Battery Wire |
- |
| Programmable |
Yes |
