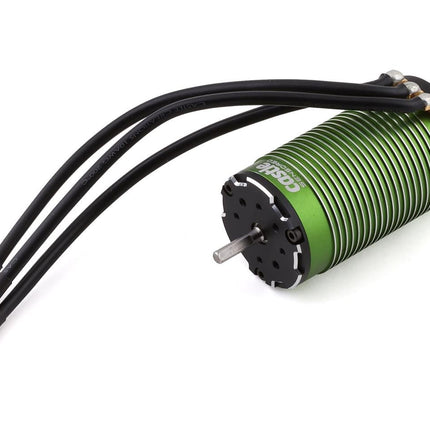

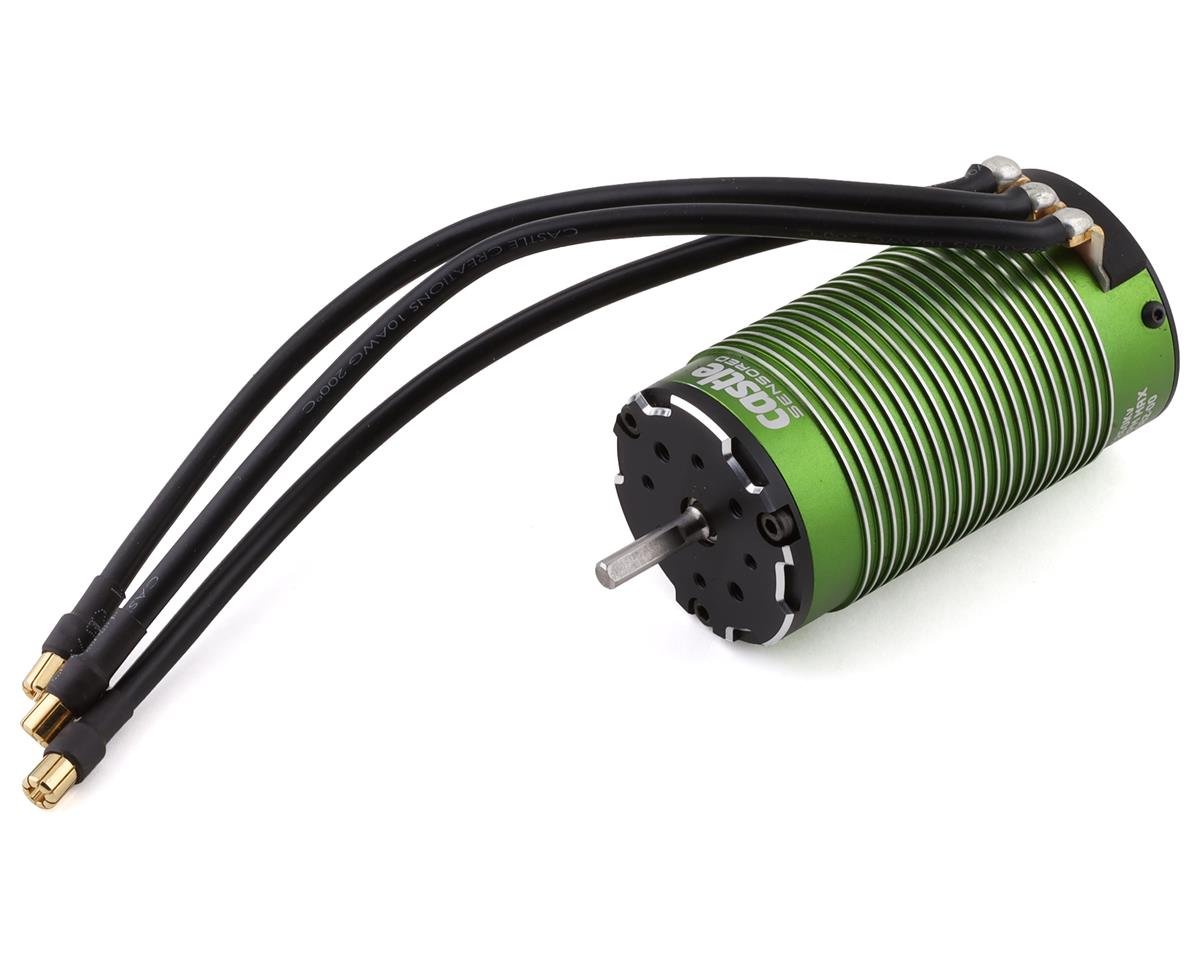

Castle Creations 060-0082-00 1717-1260Kv 4-Pole Sensored Brushless Motor CSE060008200

    Description

    This is a 1717-1260Kv 4-pole sensored brushless motor by Castle Creations.

    Features:

    • 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
    • Proprietary stator winding produces low internal resistance for a cooler running motor
    • Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
    • High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
    • Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty

    Includes:

    • 4-POLE Sensored 1717-1260KV Motor
    • Motor Quick Start Guide

    Specifications:

    • RPM/Volt (Kv): 56,000/1260Kv
    • Motor Type: Brushless
    • Shaft Diameter: 0.196" (5 mm)
    • Number of Poles: 4
    • Product Weight: 21.08oz (597.6g) with wires
    • Input Voltage: 3-8S LiPo
    • Battery Connector: None
    • Motor Design: Inrunner
    • Outer Diameter: 1.87" (47 mm)
    • Adjustable Timing: Yes
    • Product Length: 3.35" (85 mm)
    • Application: 1/6 scale vehicles weighing up to 20lbs runnning up to 8S LiPo, Upgrade for heavier 1/8 scale, and lighter 1/6 scale vehicles
    • Connector Type: 6.5mm Bullet
    • Recommended Speed Control: Castle Creations Mamba Monster X 8S 33.6V
    • Voltage: 7.4 - 33.6V
    • Water-Resistant: Yes
    Product form

    SKU: 060-0082-00
    Barcode: 819326012402

    Free pickup in our shop(s)

    Be quick! Only 1 products left in stock!

    1 in stock Ships within 24hr of Purchase

    $189.95

      • Guaranteed secure & safe checkout.

        shop pay
      • Free shipping on orders over $150
      Pay whenever you want

      Easily pay within 30 days after you have received your package.
      Read more

      Description

      This is a 1717-1260Kv 4-pole sensored brushless motor by Castle Creations.

      Features:

      • 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
      • Proprietary stator winding produces low internal resistance for a cooler running motor
      • Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
      • High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
      • Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty

      Includes:

      • 4-POLE Sensored 1717-1260KV Motor
      • Motor Quick Start Guide

      Specifications:

      • RPM/Volt (Kv): 56,000/1260Kv
      • Motor Type: Brushless
      • Shaft Diameter: 0.196" (5 mm)
      • Number of Poles: 4
      • Product Weight: 21.08oz (597.6g) with wires
      • Input Voltage: 3-8S LiPo
      • Battery Connector: None
      • Motor Design: Inrunner
      • Outer Diameter: 1.87" (47 mm)
      • Adjustable Timing: Yes
      • Product Length: 3.35" (85 mm)
      • Application: 1/6 scale vehicles weighing up to 20lbs runnning up to 8S LiPo, Upgrade for heavier 1/8 scale, and lighter 1/6 scale vehicles
      • Connector Type: 6.5mm Bullet
      • Recommended Speed Control: Castle Creations Mamba Monster X 8S 33.6V
      • Voltage: 7.4 - 33.6V
      • Water-Resistant: Yes
