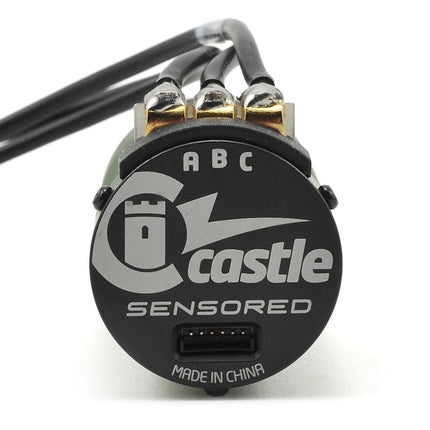

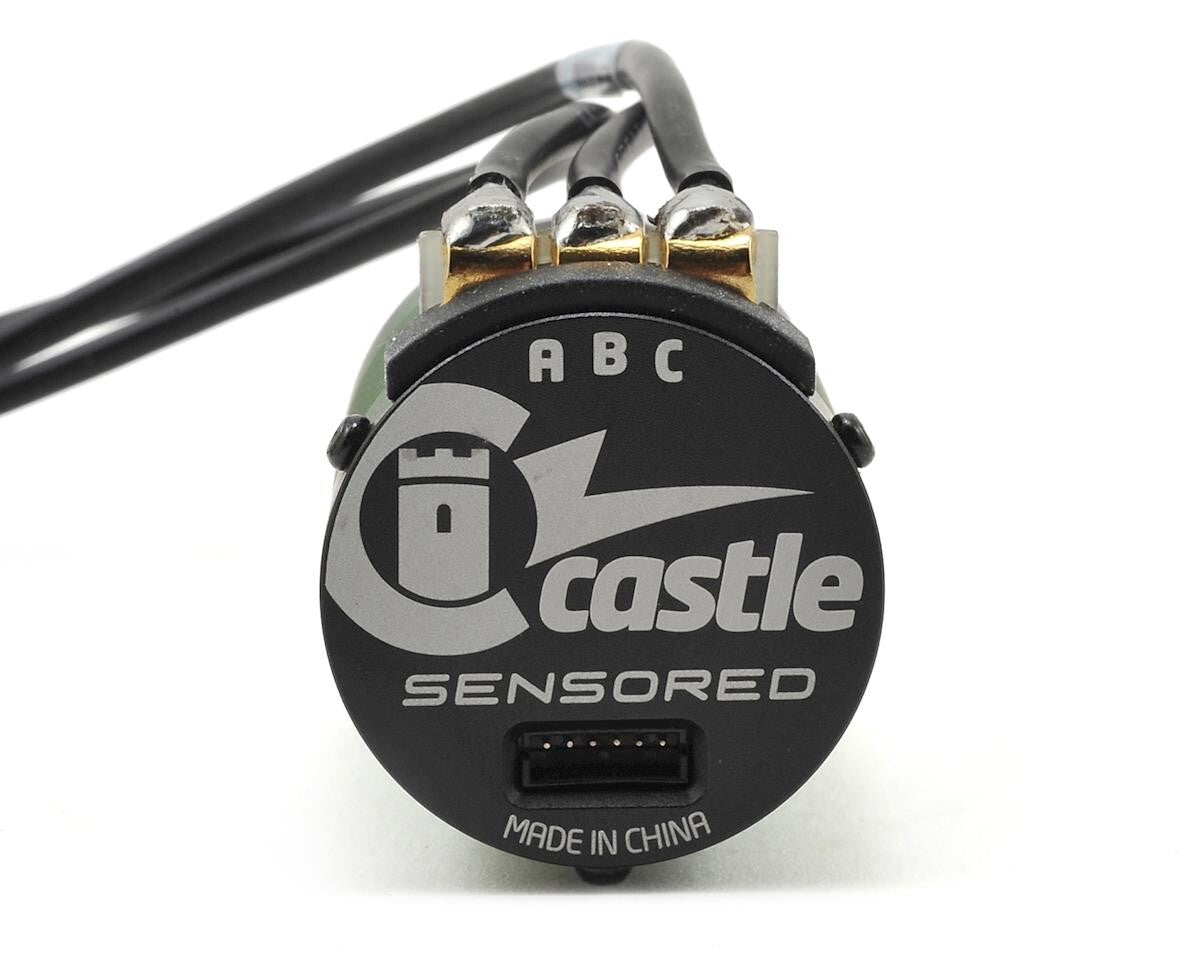

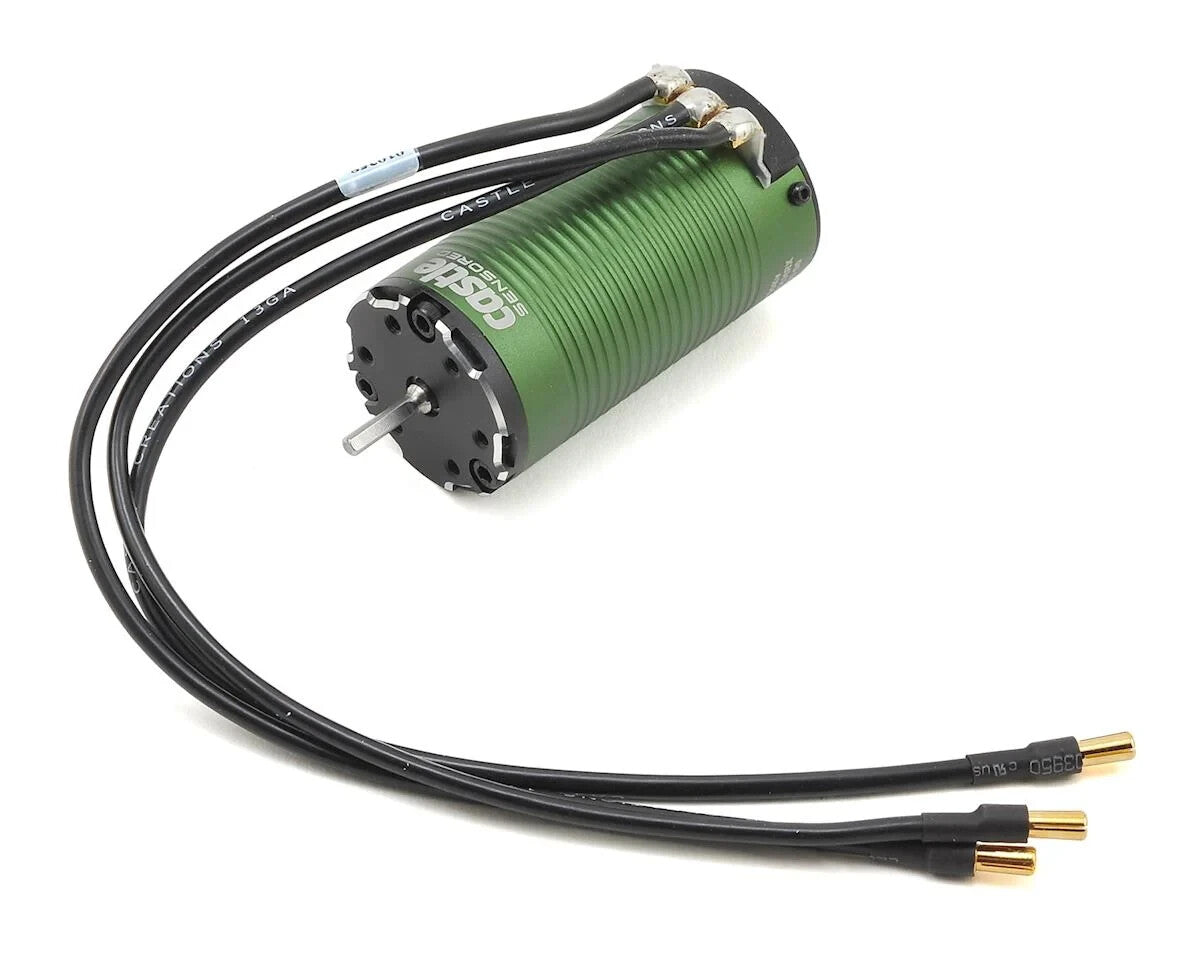

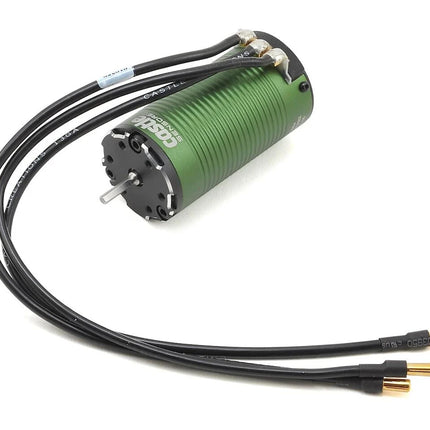

Castle Creations 060-0060-00 1415 1Y 4-Pole Sensored Brushless Motor (2400kV) CSE060006000

    Description

    Castle Creations 1415 1Y Sensored 4-Pole Brushless Motors combine rotor position sensor technology with an improved high power and high efficiency motor design to deliver ultra smooth startup, precise low speed control, predictable power delivery, incredible torque, and lightning fast response in your 2wd or 4wd short course truck. Through the use of Castle's Smart Sense technology, the position of the rotor is always known by the ESC. This eliminates the possibility of encountering cogging or inconsistency during startup, and allows the 1415 to deliver PRECISE throttle control and BUTTERY SMOOTH starts - with the RAW POWER and LONGER RUN TIMES that Castle motors are known for

    EFFICIENCY IS KEY
    The higher the efficiency of a motor the more power it can produce without overheating, which allows you to safely run higher gear ratios. The higher the efficiency of a motor, the less power it takes to produce the same output power, which allows you to run longer on a single charge. The higher the efficiency of the motor, the less energy it turns into heat; keeping it cool under extreme loads. Efficiency equals performance.

    RELIABILITY CAN’T BE IGNORED
    Without a robust and reliable design, efficiency will only go so far. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it. Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible. High-strength, high-temperature grade neodymium sintered magnets combined with a high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions. Proprietary winding techniques allow Castle to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction required careful component selection; each verified through internal testing to ensure the highest efficiency possible. In the end, the result is a motor with unmatched quality, performance, and reliability.

    INTEGRATED SOPHISTICATION
    Castle engineers always add a little something extra in their designs that takes your performance to the next level. When paired with a Castle Creations sensor supported ESC, like the MAMBA MICRO X, MAMBA MAX PRO or MAMBA MONSTER X, you can unlock advanced tuning capabilities that Castle Link provides specifically for sensored motors. With a Castle sensored ESC and sensored motor you will have the ULTIMATE POWER PLANT for your vehicle.

    SMARTSENSE™
    SMARTSENSE uses the motors sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA- EFFICIENT sensorless mode. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at all load points. Using mechanical timing adjustments alone, you can only target one driving condition, such as higher start power or higher top end speed. This sacrifices performance and efficiency during the other driving phases. Electronic timing in SMARTSENSE will advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless drive.

    Features:

    • 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT
    • Oversized gold plated solder tabs for LESS RESISTANCE and easy soldering
    • QUIETSENSE™ Technology shields magnetic field noise generated from the motor coils and keeps motor and ESC in sync at all times
    • HIGHER PRECISION and MORE EFFICIENT startups
    • OPTIMIZED design eliminates the need for mechanical timing adjustments
    • Sensor alignment method delivers uniform timing and torque in both directions, automatically
    • REBUILDABLE design allows users to replace front end bell with bearings or rotors with shaft
    • ROAR standard sensor port and labeled connections
    • High strength 180°C neodymium sintered magnets
    • High quality, temperature-stabilized sensors
    • High-purity, high-temperature copper windings
    • Hardened stainless steel shaft
    • 13 AWG high strand wire with silicone insulation
    • Kevlar wrapped rotor
    • 6061-T6 Billet aluminum heatsink can
    • High RPM NMB oversized bearings
    • High quality 0.2mm steel laminations
    • Low resistance gold plated bullet connectors

    Specifications:
    Input Voltage Range: 3-4S LiPo
    Kv: 2400
    Max. RPM: 75,000
    Length: 69.5mm
    Diameter: 36mm
    Weight (w/wires): 318g / 11.2oz
    Shaft Length: 15.5mm
    Shaft Diameter: 1/8" (3.17mm)
    Mounting Hole Specifications: M3 @ 25mm
    Cooling Fan: Optional - not included
    Connectors: 4mm male Castle Bullet Connectors
    Application Guidelines: Ideal for 1:10 scale 2WD and 4WD SCT up to 6.5lb (3-4S).
    Recommended ESC(s): Mamba Max Pro, Mamba X, Monster X
    Product form

    SKU: EB-156904809027
    Barcode: 819326011443

    Free pickup in our shop(s)

    Be quick! Only 1 products left in stock!

    1 in stock Ships within 24hr of Purchase

    $112.95

      • Guaranteed secure & safe checkout.

        shop pay
      • Free shipping on orders over $150
      Pay whenever you want

      Easily pay within 30 days after you have received your package.
      Read more

      Description

      Castle Creations 1415 1Y Sensored 4-Pole Brushless Motors combine rotor position sensor technology with an improved high power and high efficiency motor design to deliver ultra smooth startup, precise low speed control, predictable power delivery, incredible torque, and lightning fast response in your 2wd or 4wd short course truck. Through the use of Castle's Smart Sense technology, the position of the rotor is always known by the ESC. This eliminates the possibility of encountering cogging or inconsistency during startup, and allows the 1415 to deliver PRECISE throttle control and BUTTERY SMOOTH starts - with the RAW POWER and LONGER RUN TIMES that Castle motors are known for

      EFFICIENCY IS KEY
      The higher the efficiency of a motor the more power it can produce without overheating, which allows you to safely run higher gear ratios. The higher the efficiency of a motor, the less power it takes to produce the same output power, which allows you to run longer on a single charge. The higher the efficiency of the motor, the less energy it turns into heat; keeping it cool under extreme loads. Efficiency equals performance.

      RELIABILITY CAN’T BE IGNORED
      Without a robust and reliable design, efficiency will only go so far. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it. Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible. High-strength, high-temperature grade neodymium sintered magnets combined with a high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions. Proprietary winding techniques allow Castle to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction required careful component selection; each verified through internal testing to ensure the highest efficiency possible. In the end, the result is a motor with unmatched quality, performance, and reliability.

      INTEGRATED SOPHISTICATION
      Castle engineers always add a little something extra in their designs that takes your performance to the next level. When paired with a Castle Creations sensor supported ESC, like the MAMBA MICRO X, MAMBA MAX PRO or MAMBA MONSTER X, you can unlock advanced tuning capabilities that Castle Link provides specifically for sensored motors. With a Castle sensored ESC and sensored motor you will have the ULTIMATE POWER PLANT for your vehicle.

      SMARTSENSE™
      SMARTSENSE uses the motors sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA- EFFICIENT sensorless mode. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at all load points. Using mechanical timing adjustments alone, you can only target one driving condition, such as higher start power or higher top end speed. This sacrifices performance and efficiency during the other driving phases. Electronic timing in SMARTSENSE will advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless drive.

      Features:

      • 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT
      • Oversized gold plated solder tabs for LESS RESISTANCE and easy soldering
      • QUIETSENSE™ Technology shields magnetic field noise generated from the motor coils and keeps motor and ESC in sync at all times
      • HIGHER PRECISION and MORE EFFICIENT startups
      • OPTIMIZED design eliminates the need for mechanical timing adjustments
      • Sensor alignment method delivers uniform timing and torque in both directions, automatically
      • REBUILDABLE design allows users to replace front end bell with bearings or rotors with shaft
      • ROAR standard sensor port and labeled connections
      • High strength 180°C neodymium sintered magnets
      • High quality, temperature-stabilized sensors
      • High-purity, high-temperature copper windings
      • Hardened stainless steel shaft
      • 13 AWG high strand wire with silicone insulation
      • Kevlar wrapped rotor
      • 6061-T6 Billet aluminum heatsink can
      • High RPM NMB oversized bearings
      • High quality 0.2mm steel laminations
      • Low resistance gold plated bullet connectors

      Specifications:
      Input Voltage Range: 3-4S LiPo
      Kv: 2400
      Max. RPM: 75,000
      Length: 69.5mm
      Diameter: 36mm
      Weight (w/wires): 318g / 11.2oz
      Shaft Length: 15.5mm
      Shaft Diameter: 1/8" (3.17mm)
      Mounting Hole Specifications: M3 @ 25mm
      Cooling Fan: Optional - not included
      Connectors: 4mm male Castle Bullet Connectors
      Application Guidelines: Ideal for 1:10 scale 2WD and 4WD SCT up to 6.5lb (3-4S).
      Recommended ESC(s): Mamba Max Pro, Mamba X, Monster X
