| Technical Specs |
|---|
| Input Voltage Range: |
10S MAX |
| Kv: |
1100 |
| Max. RPM: |
45,000 |
| Size: |
Length: 4.4" (112.7mm)
Diameter: 2.2" (56.3mm) |
| Weight (w/wires): |
44 oz./1.25kg |
| Shaft Size: |
Length: 30mm
Diameter: 0.315" (8mm) |
| Mounting Hole Specifications: |
4mm @ 30mm
|
| Cooling Fan: |
Available, but not included. See 011-0153-00 here.
|
| Connectors: |

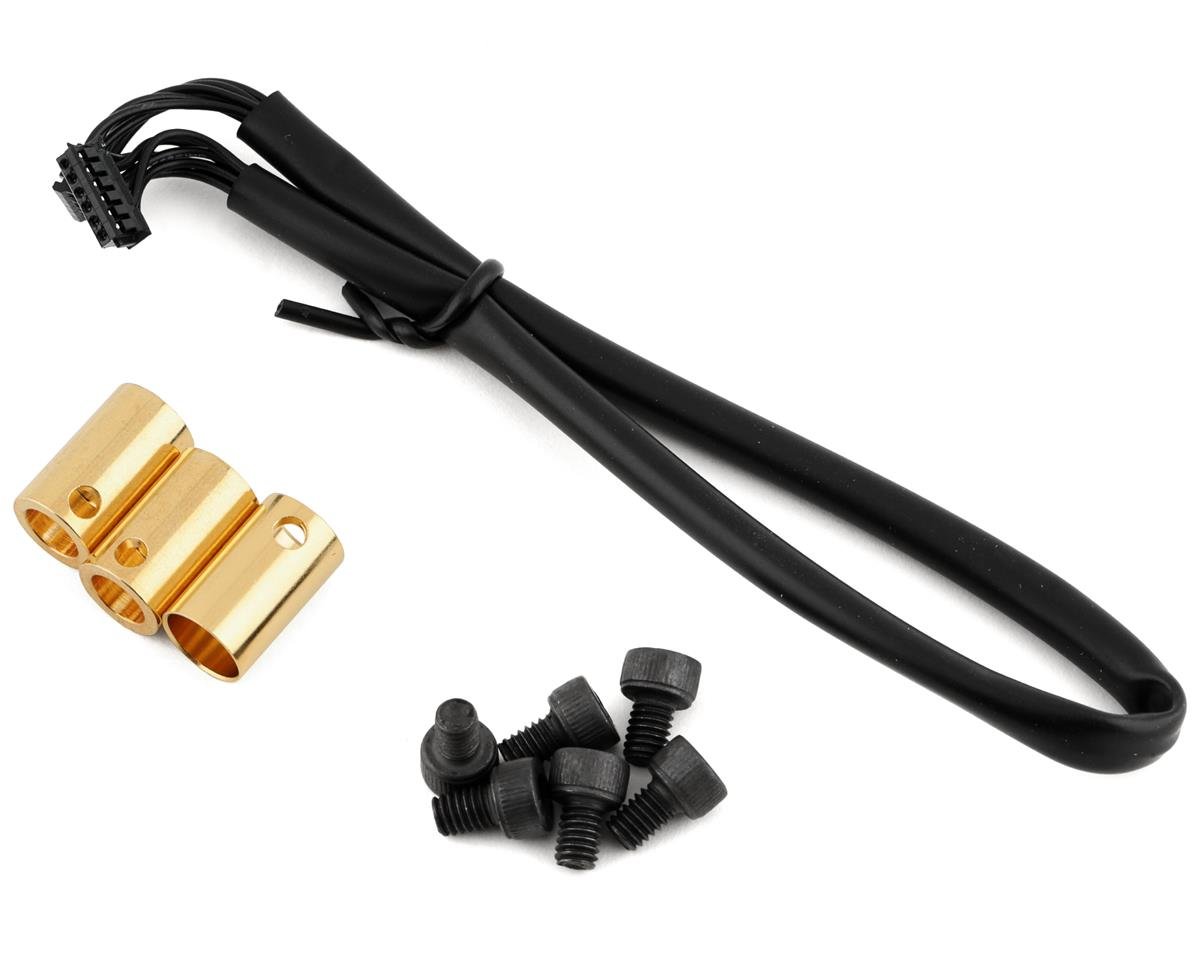

8.0mm male connectors, 250mm sensor wire.
|
| Items Needed for Operation: |
Compatible Electronic Speed Control (ESC) (see Recommended ESC(s) below)
|
| Product Use Statements: |
Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
Do not use mounting screws that extend more than 5mm into the front of the motor. Using too long of a screw can result in damage to the motor's windings and will not be covered by the warranty.
|
| Application Guidelines: |

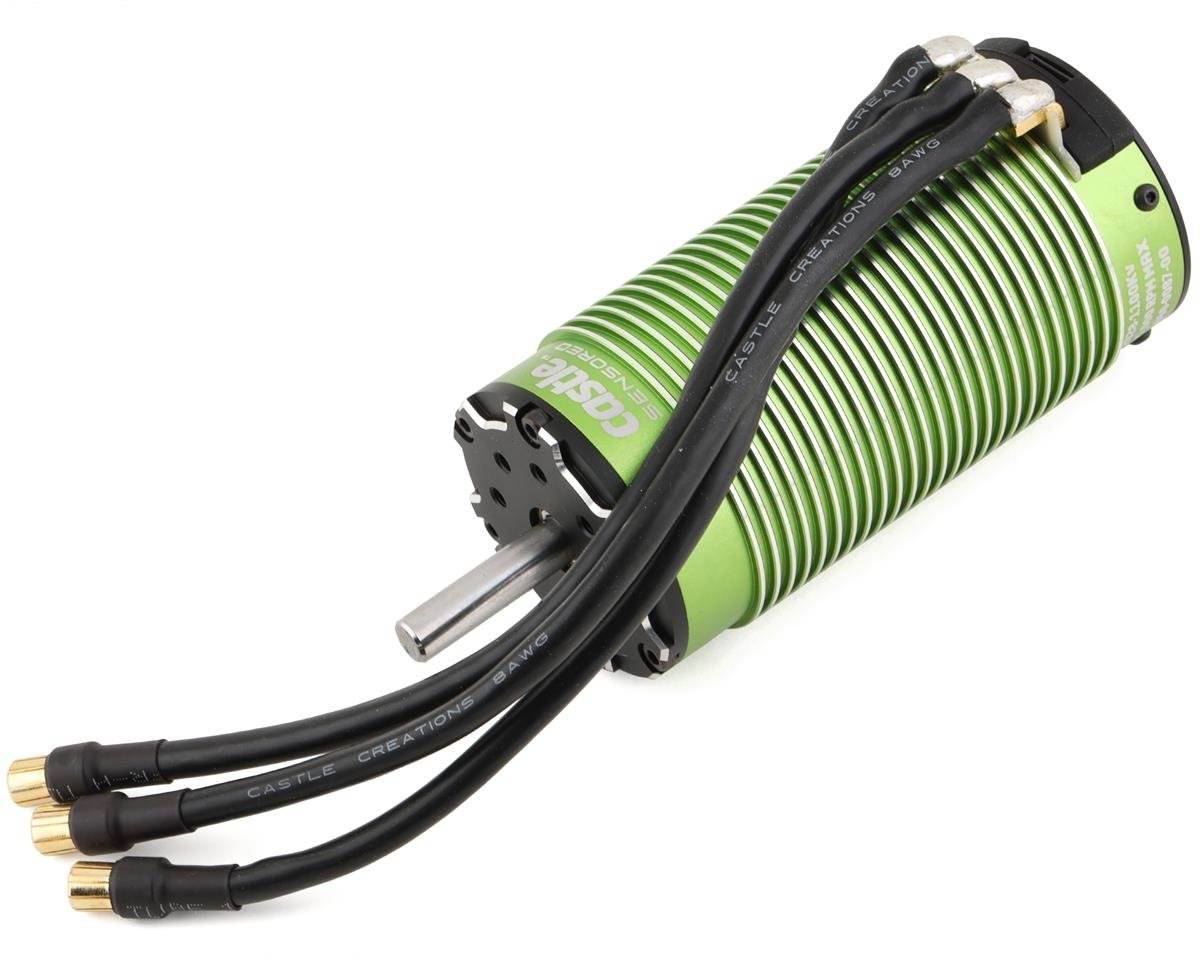

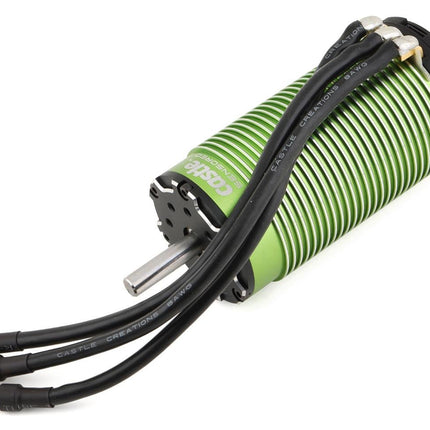

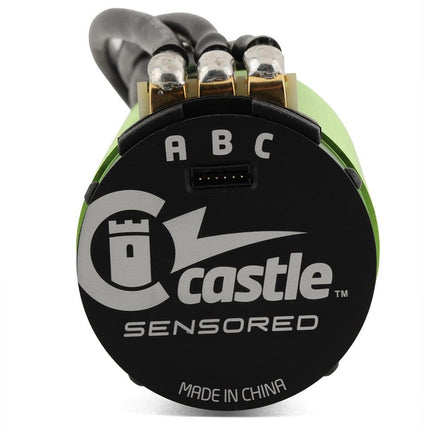

The 2028-1100KV is a water resistant design. The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. We recommend applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
Recommend starting gearing (pinion/spur) for 8s operation in popular vehicles:
Traxxas X-Maxx - 23/35 (mod 1.5) or 34/54 (mod 1.0)
Arrma Kraton 8s - 32/47
Tire size, driving style, driving conditions, battery quality and connectors can impact vehicle performance and acceptable gearing.
|
| Recommended ESC(s): |
Mamba XL X
Mamba XLX2
|
| Max. Recommended Vehicle Weight: |
RC vehicles weighing less than 30lbs.
|
| Tech Notes: |
Running modes: Sensorless and Sensored |
