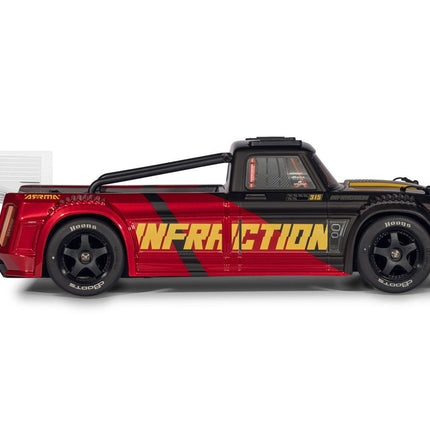

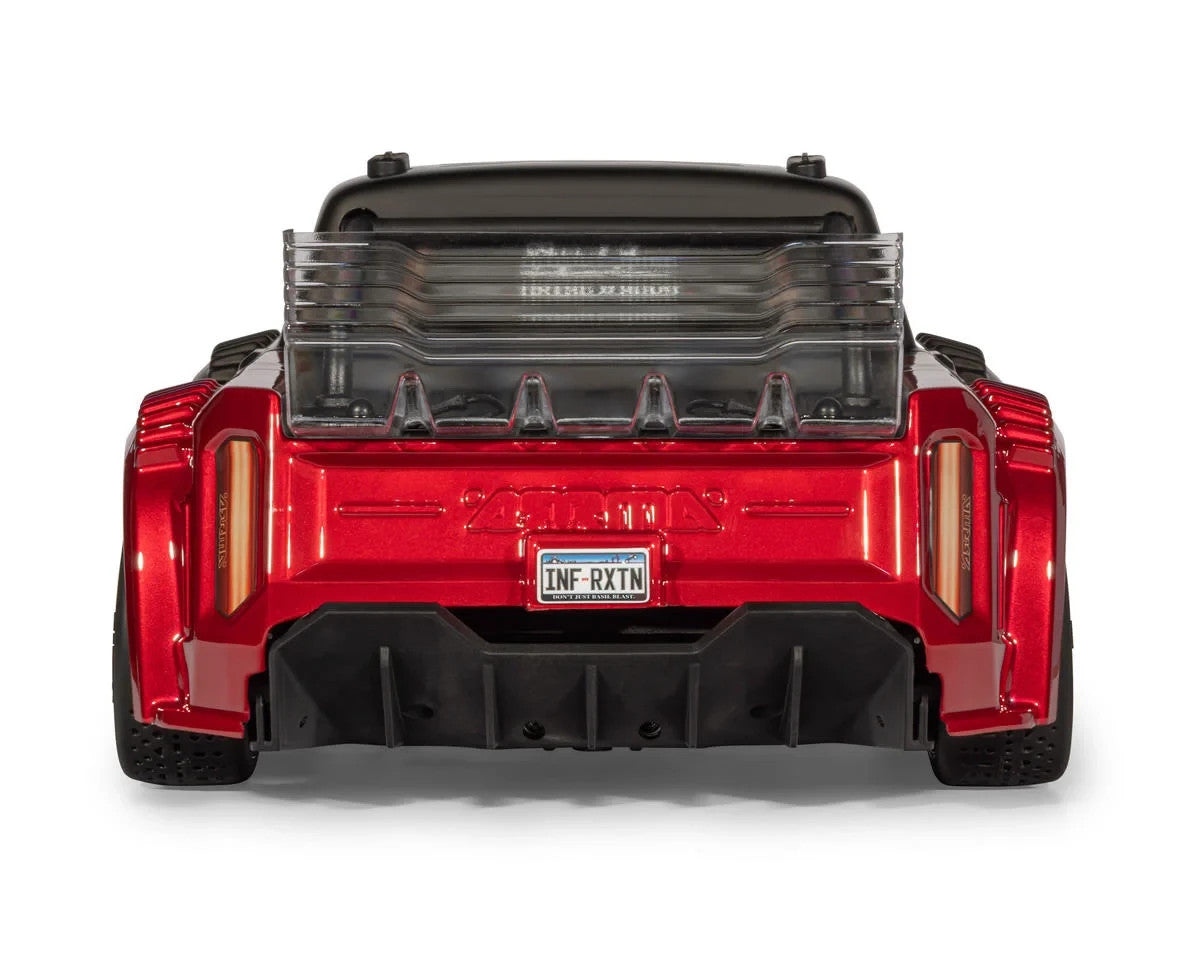

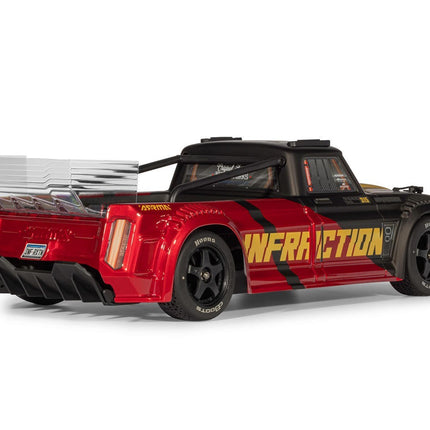

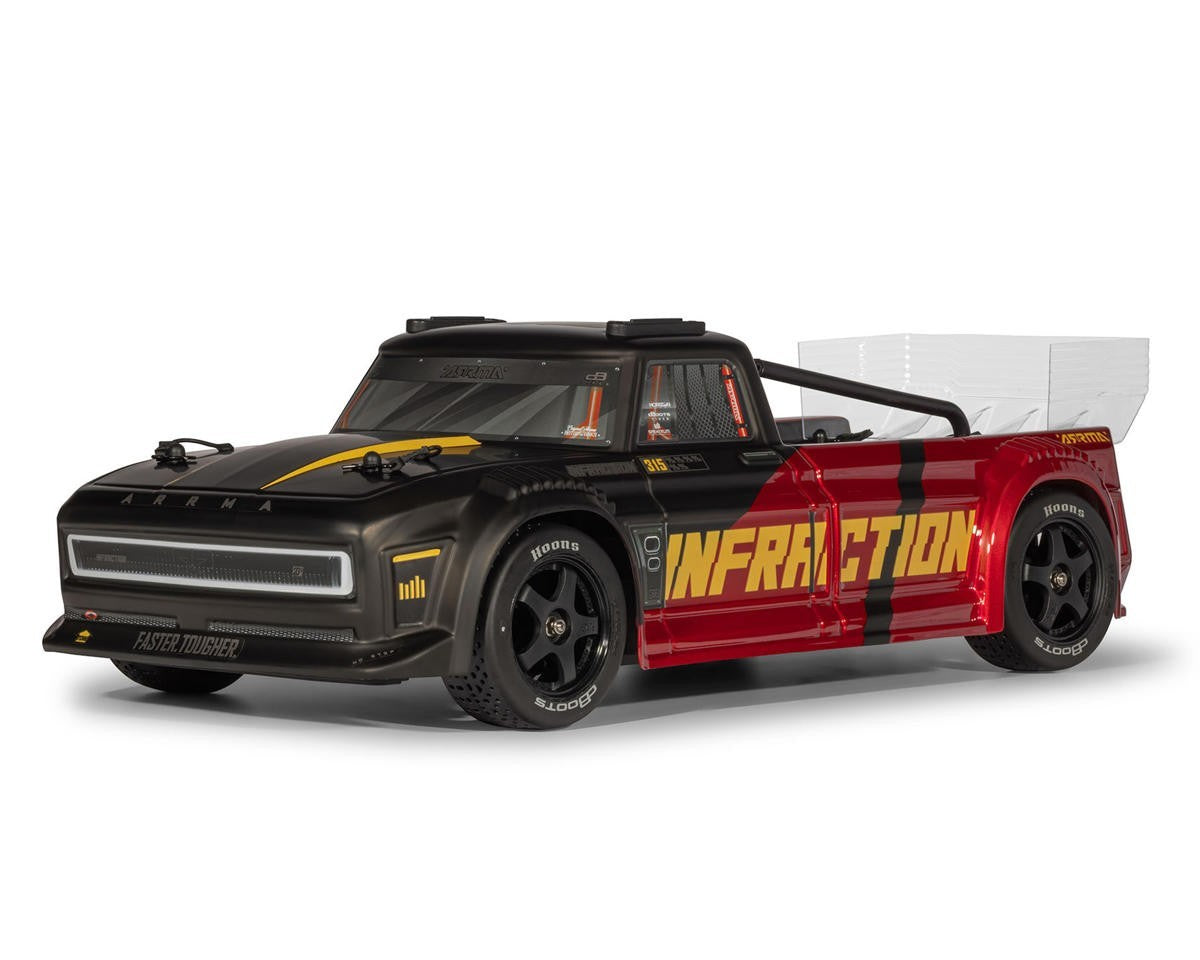

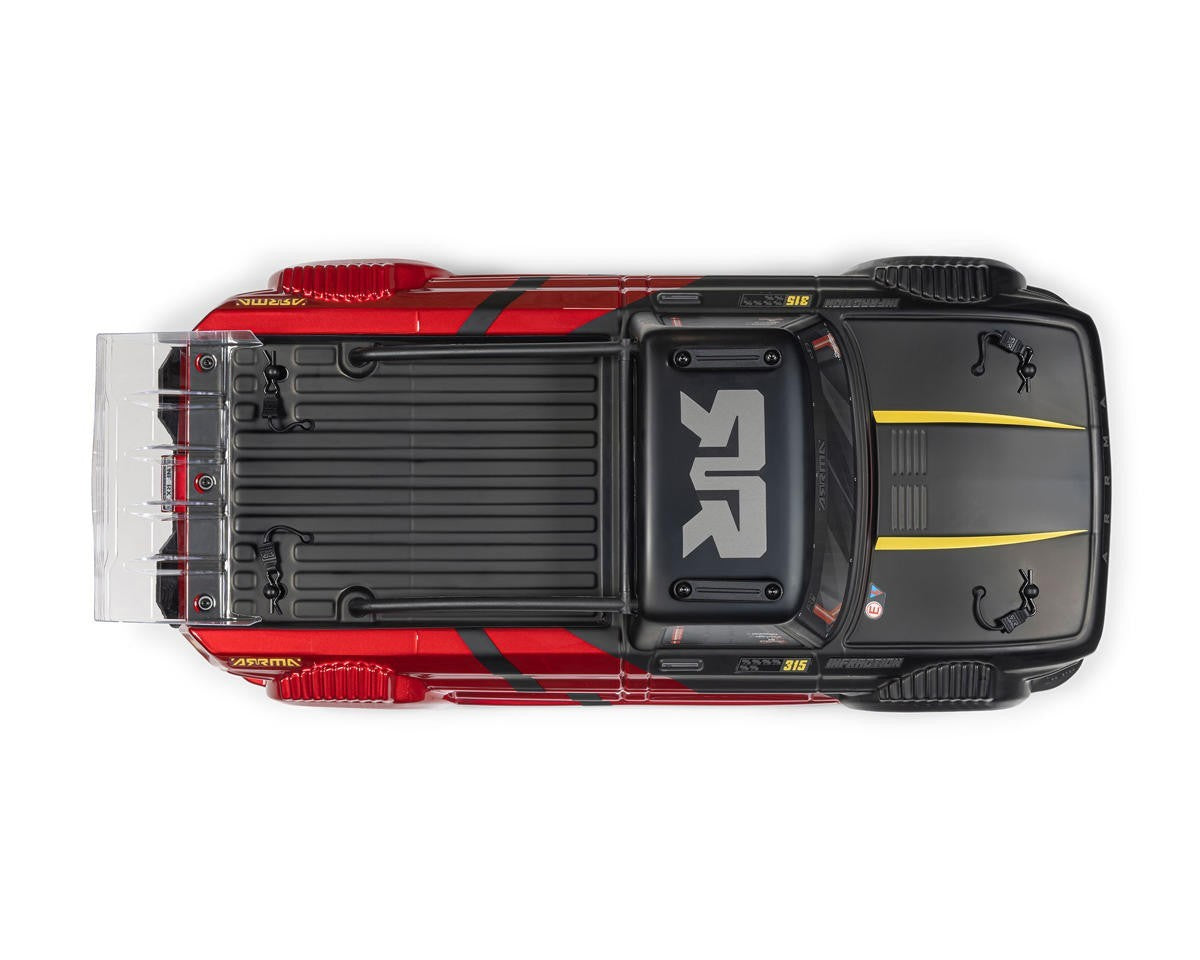

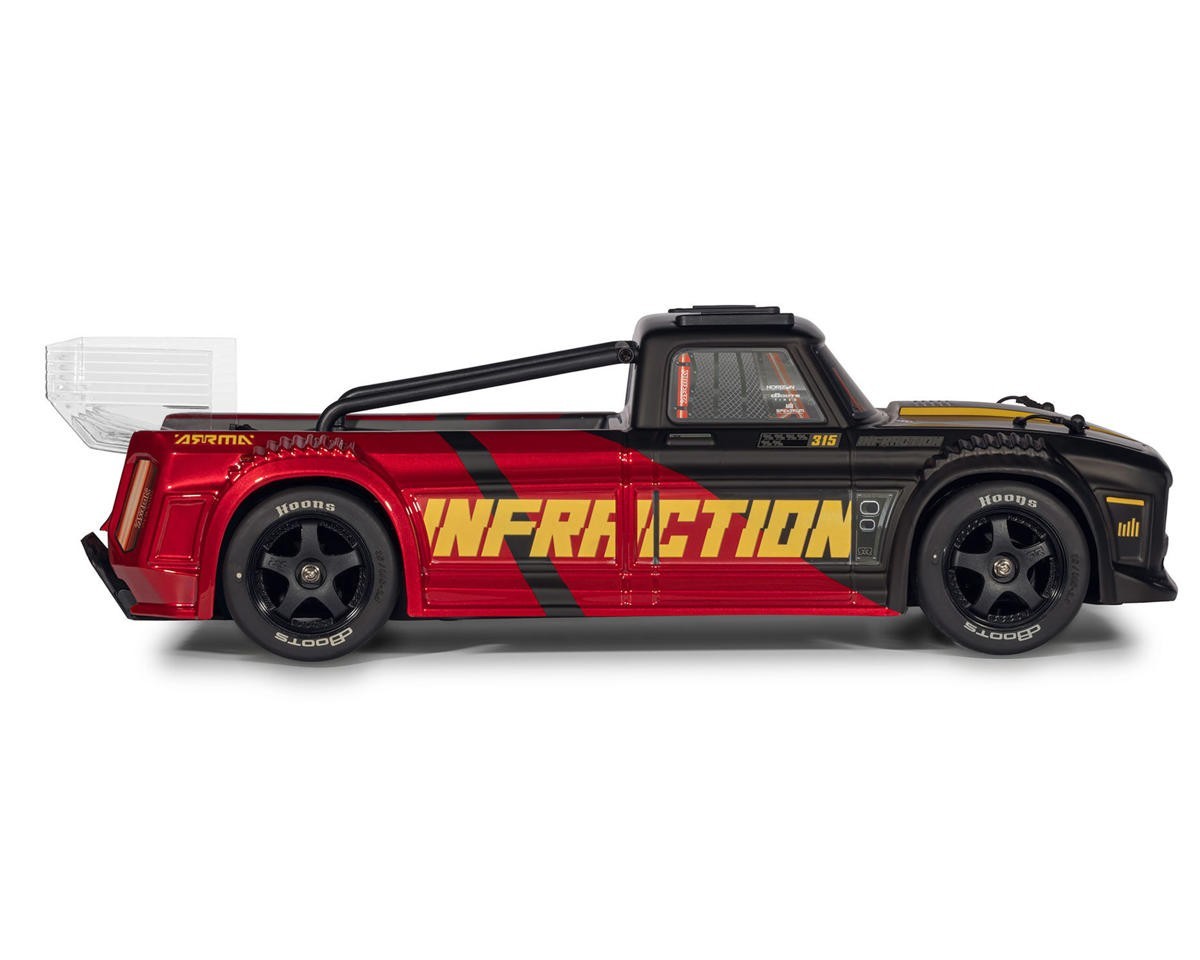

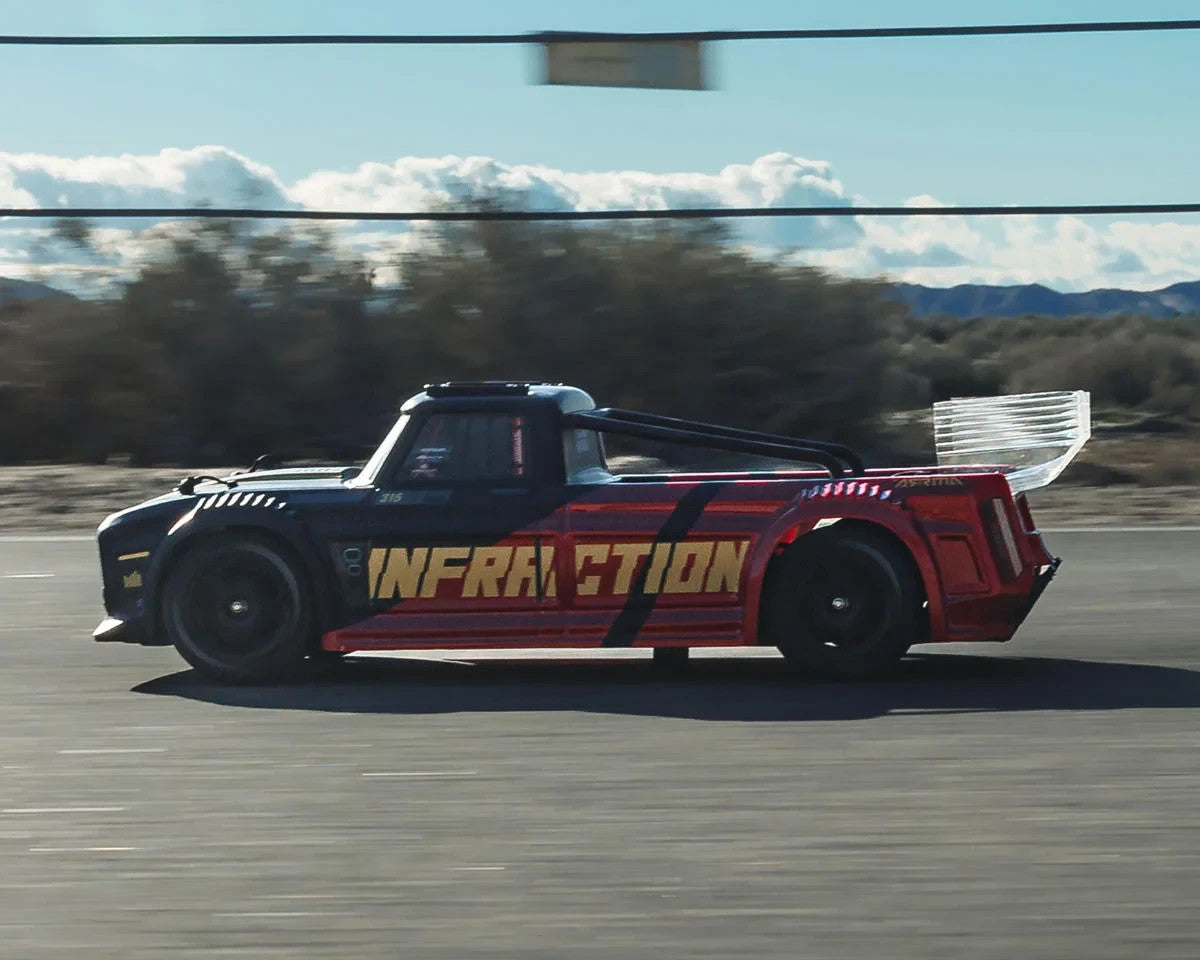

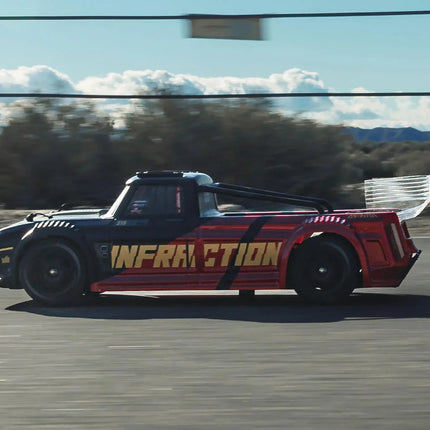

ARRMA INFRACTION 223S BLX DSC 4X4 RTR RC Truck Introduction
The meanest 1/8 scale street machine just got meaner.
The ARRMA INFRACTION™ 223S BLX DSC 4X4 RTR is a full generational upgrade built to make 65+ MPH feel more accessible, more controllable, and more durable than ever before.
This is the sweet spot in the ARRMA lineup: too fast to ignore, too smart to intimidate. Whether you're graduating from 1/10 scale or ready to roast tires without jumping straight into 6S territory, the 223S is built precisely for you. Parking lots, driveways, cul-de-sacs, practically every paved stretch becomes your personal test track. Lay into the throttle, break the rear loose, and start the smoke on your terms.

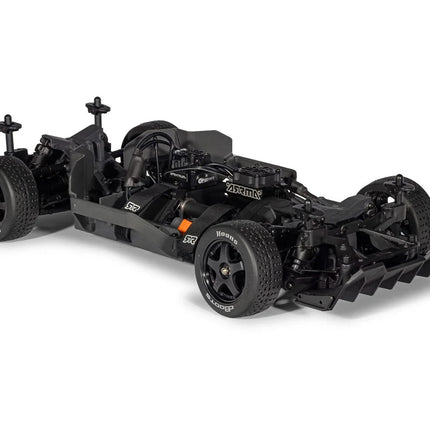

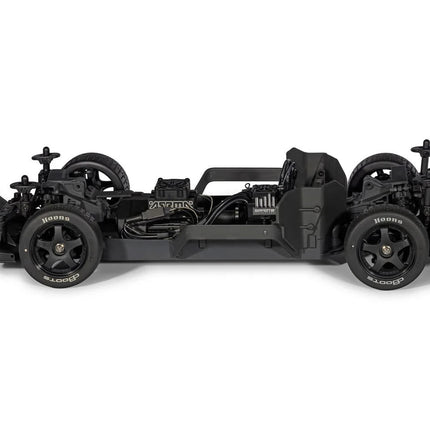

Under the aggressive Infraction body sits a re-engineered drivetrain. Metal-geared 37T 1.35 MOD differentials, steel input gears, and dual rubber-sealed bearings throughout mean this platform is built to absorb punishment run after run. The transmission overload coupling handles shock loads and protects your gears without requiring any slipper clutch tuning. All you need to do is bash and let the system take care of itself. It means you get cleaner launches on high-grip asphalt with fewer blown diffs.
Built on the new 223S BLX architecture, this version introduces Spektrum™ Dynamic Stability Control (DSC). With four selectable modes, DSC automatically applies steering corrections so you can drift hard and keep it pointed right. Whether you're a first-time street basher learning to manage the roost or an experienced driver dialing in your slide angles, DSC keeps your tires screaming and your run intact. When you're ready to go full send on your own terms, simply turn it off and trust your reflexes.

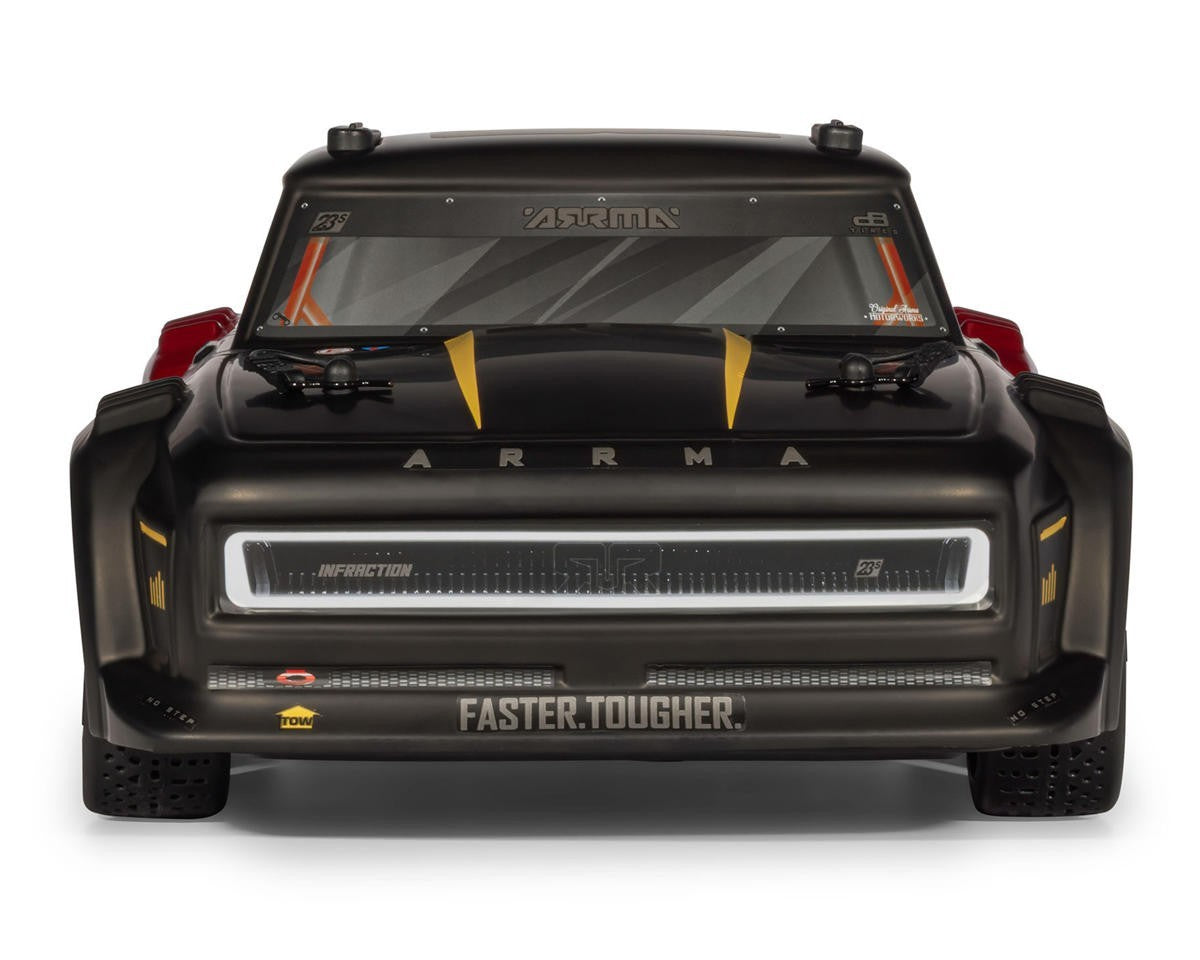

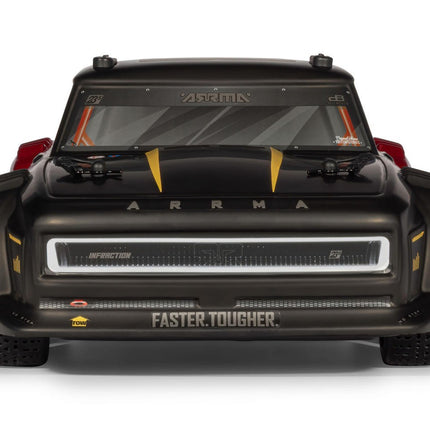

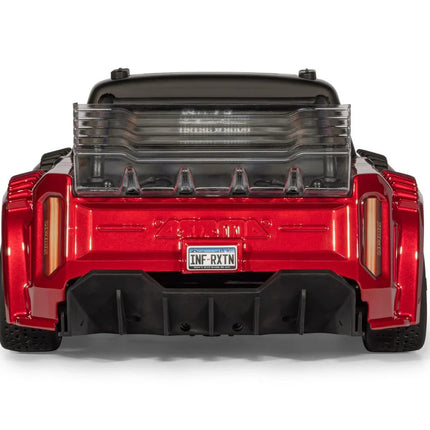

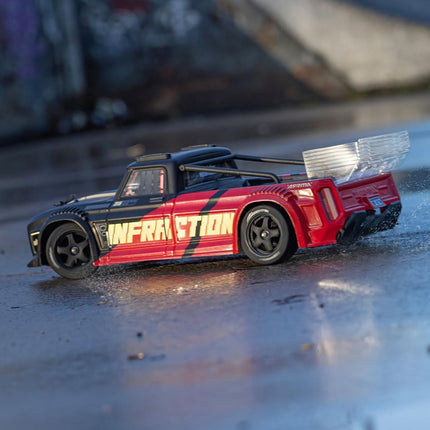

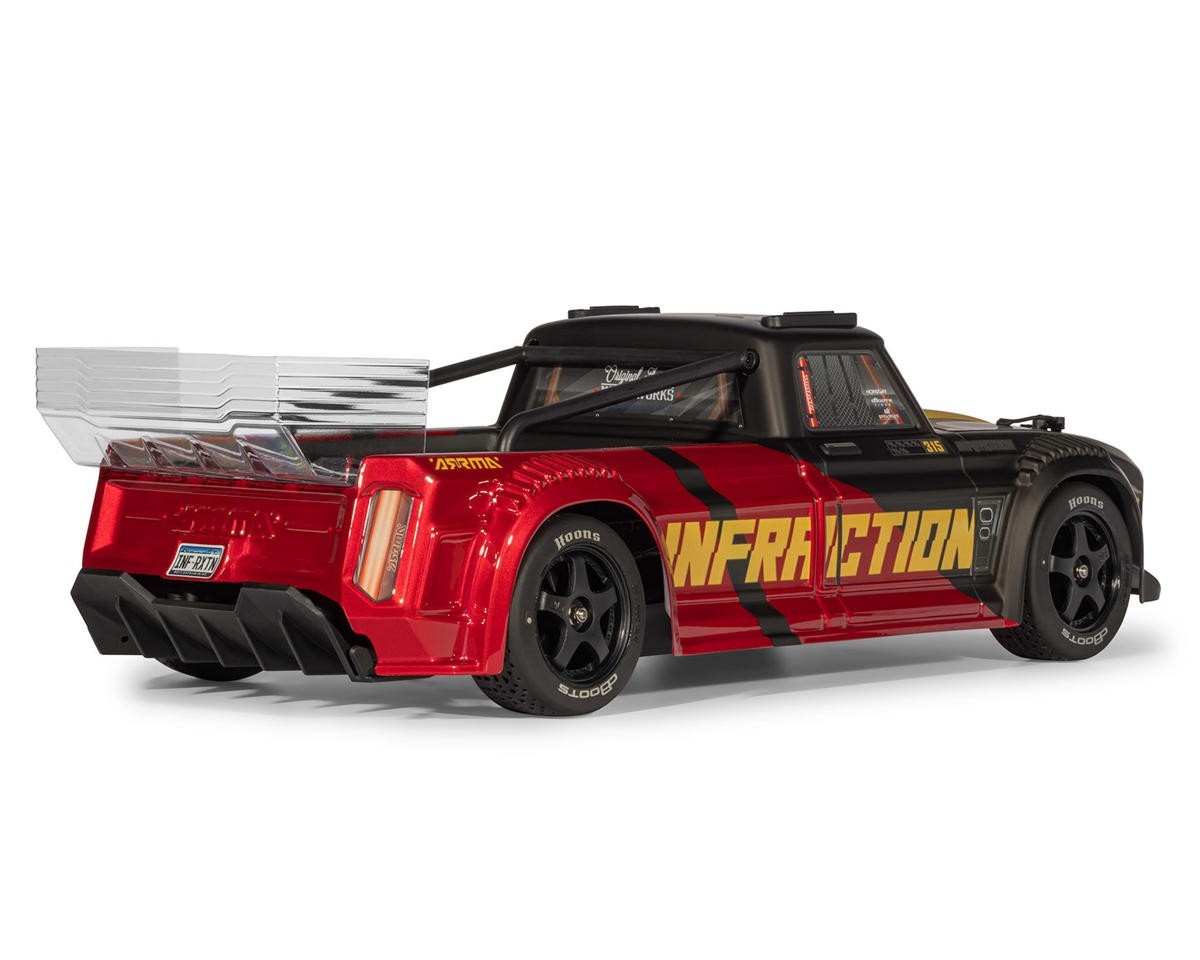

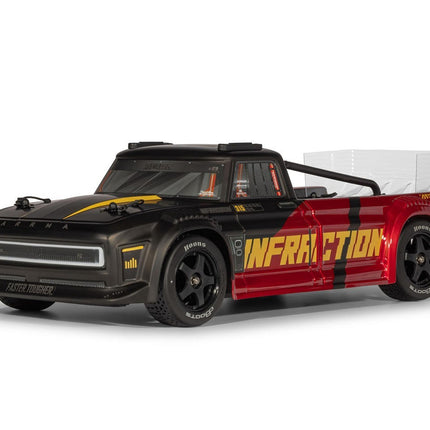

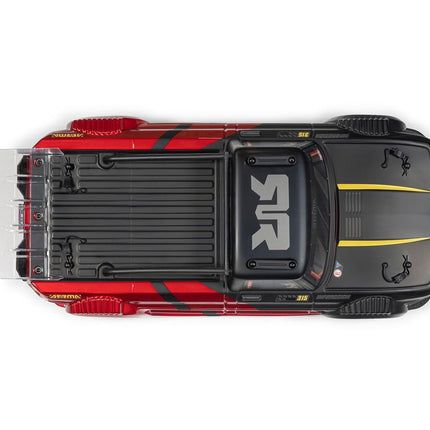

High performance dBoots Hoons belted tires are standard, delivering the all-road grip you need for tarmac, gravel, and everything in between. The iconic Infraction body, available in Blue/Red, Red/Black, and Teal/Pink, turns heads before you've even hit the throttle. Waterproof Spektrum electronics keep the fun rolling through puddles and mud and provide clean, responsive control and easy serviceability. The Spektrum SLT3™ transmitter adds helpful control as you level up. Add your 2S or 3S LiPo and discover how much ground a 65+ MPH street machine can cover.
The ARRMA INFRACTION 223S BLX DSC 4X4 RTR delivers. Because the street is better at full speed.
ARRMA INFRACTION 223S BLX DSC 4X4 RTR RC Truck Features
- 65+ MPH with included speed pinion (using 3S LiPo)
- Spektrum DSC with 4 selectable modes automatically applies steering correction for controllable stunt action
- Throttle limiting for confidence-building speed management

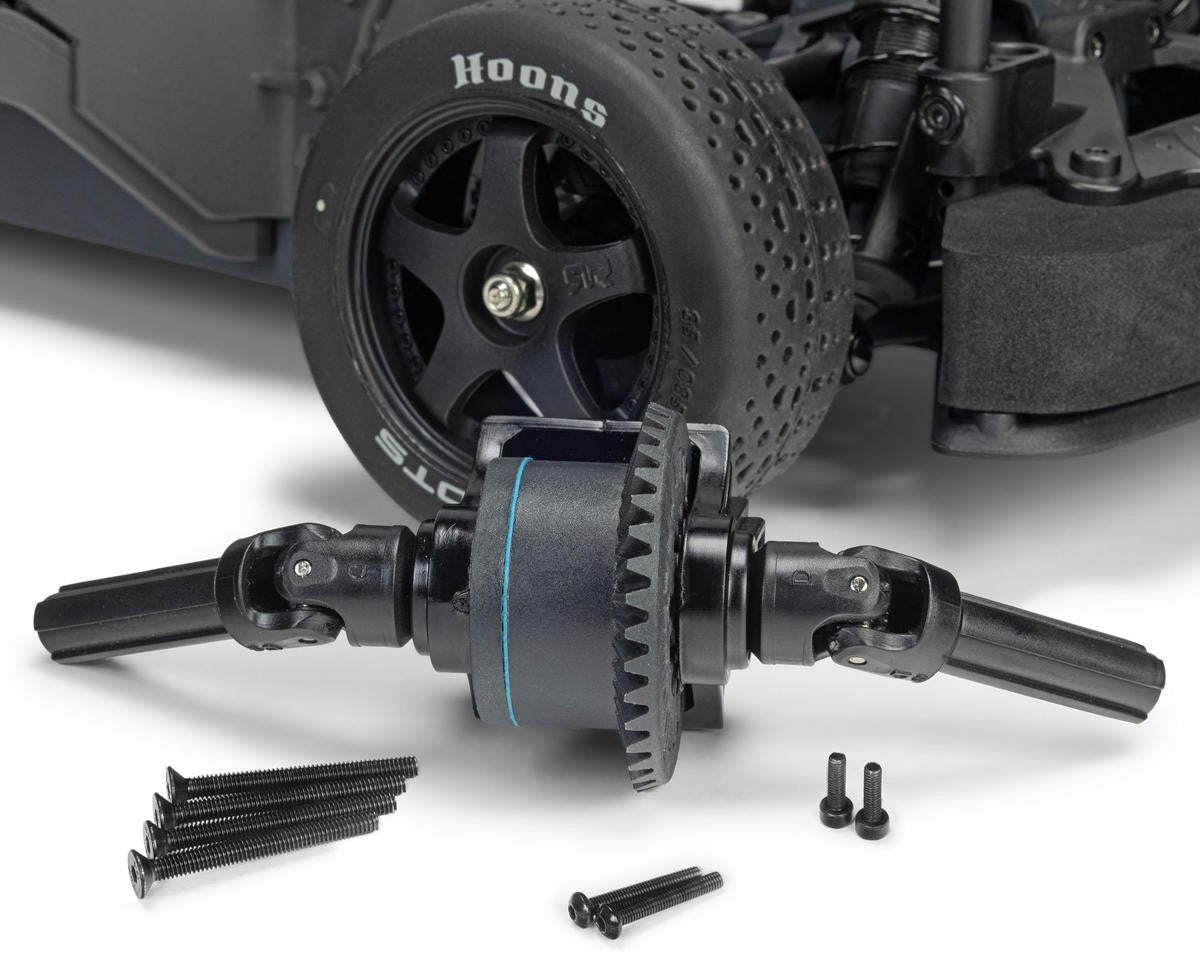

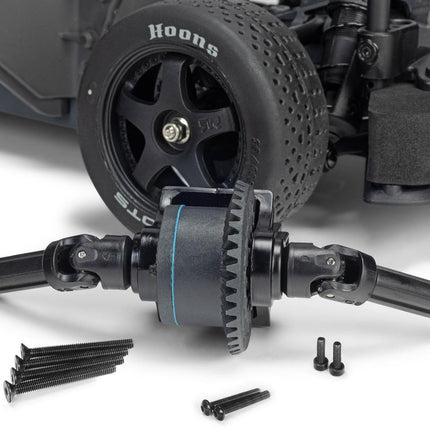

- Metal-geared 37T 1.35 MOD differentials throughout
- Steel input gears for increased durability
- Transmission overload coupling protects drivetrain, no slipper clutch tuning required
- Dual rubber-sealed bearings throughout
- dBoots Hoons all-road, belted tires for optimal traction and long-lasting durability

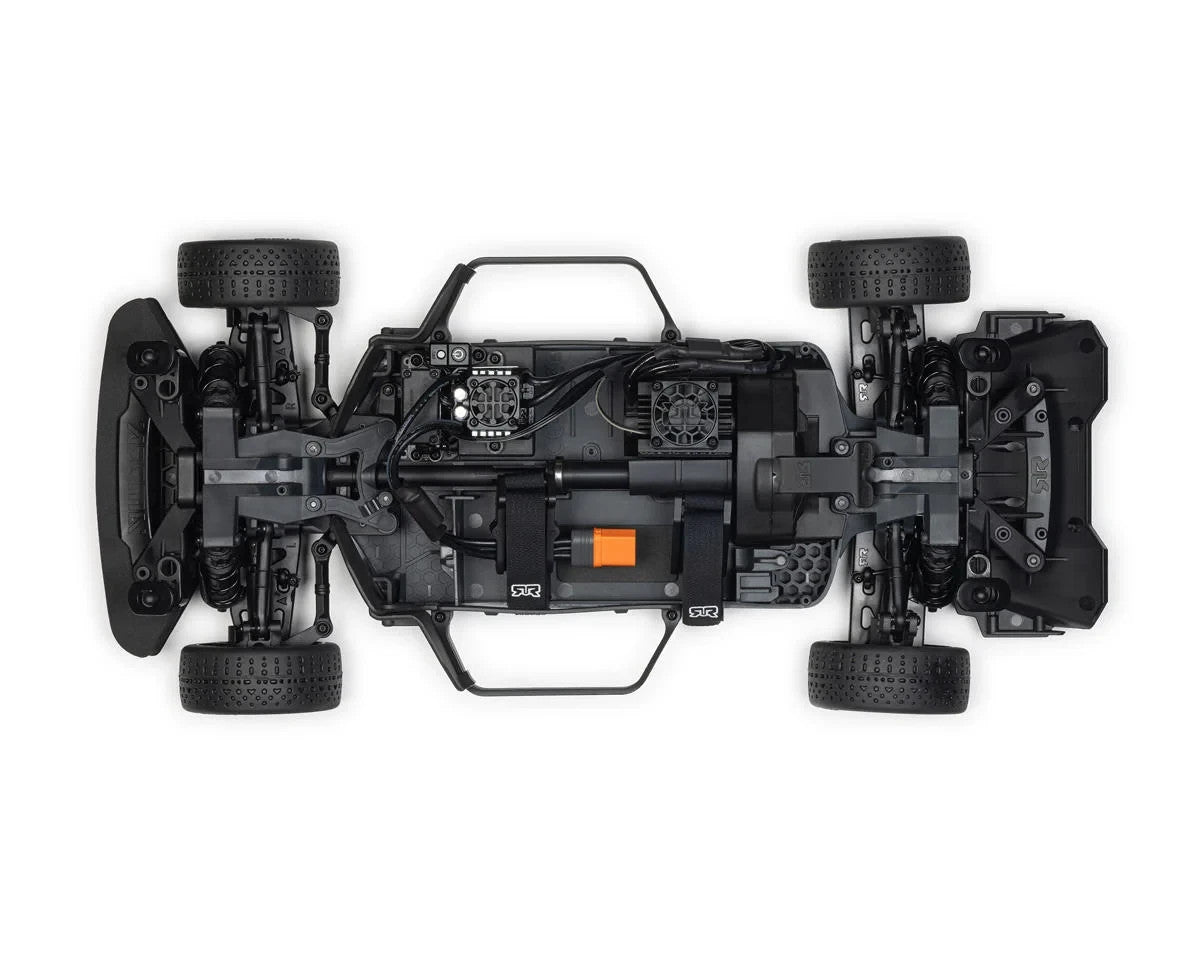

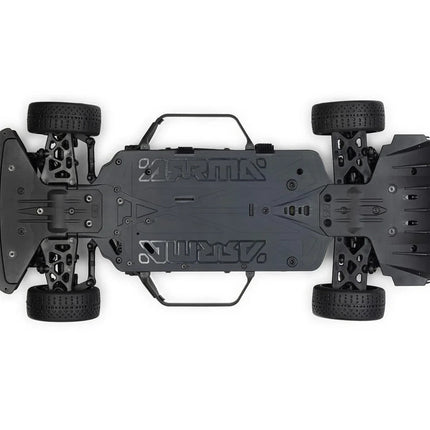

- Modular design for easy maintenance access

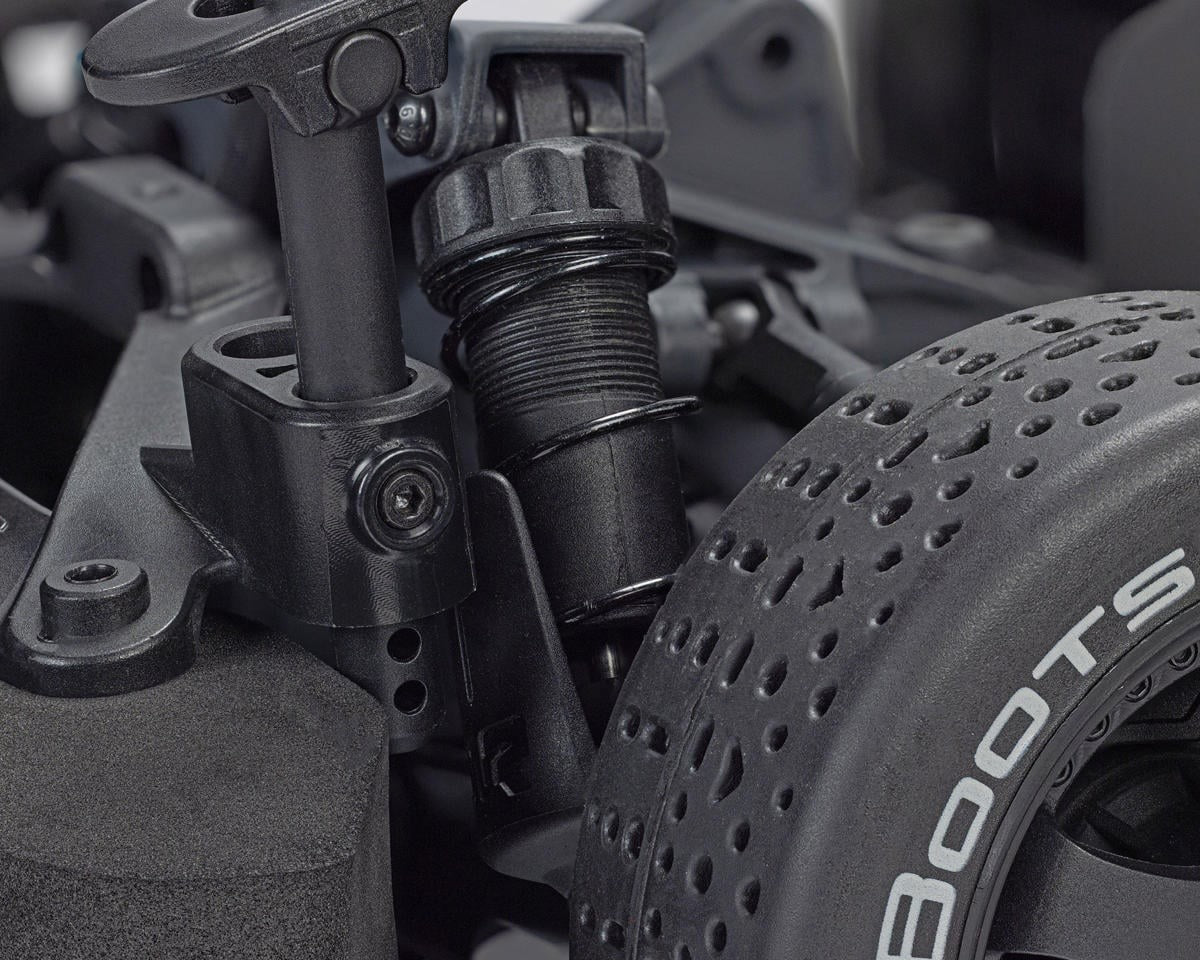

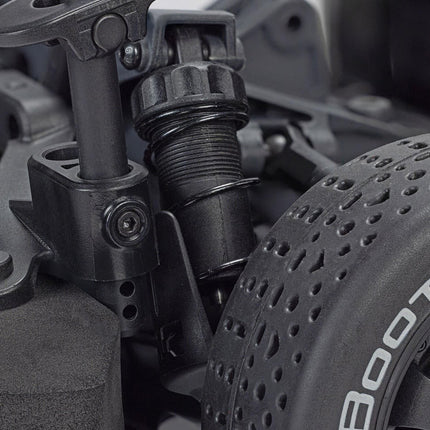

- Oil-filled composite shocks

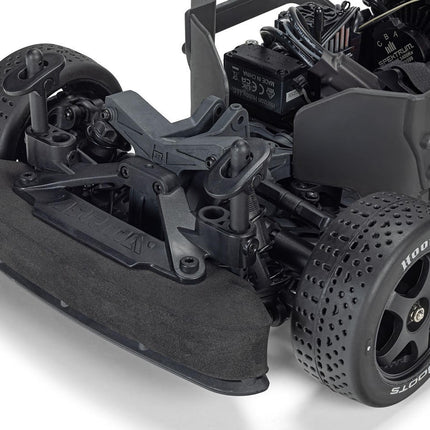

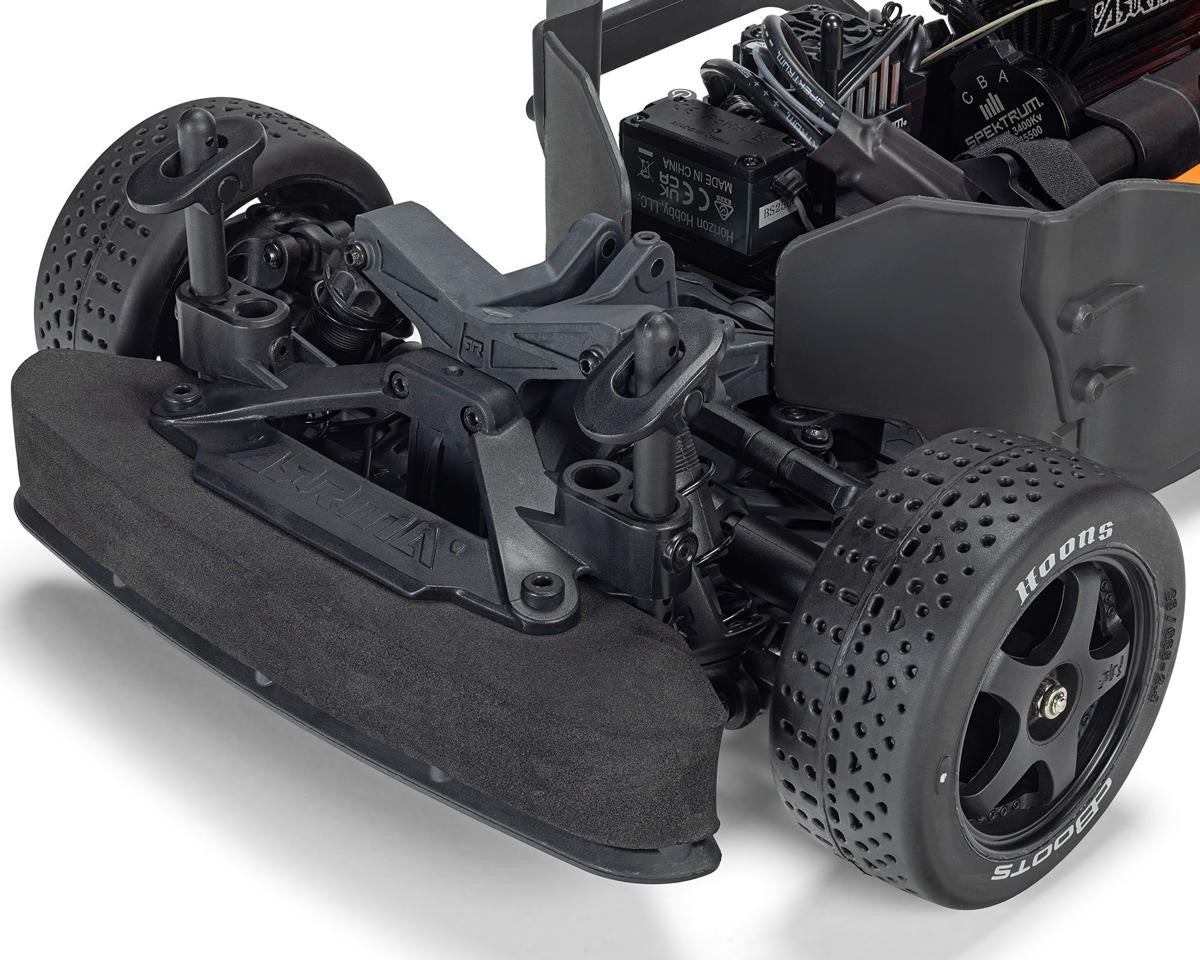

- Heavy-duty front and rear bumpers
- Multiple color choices: Blue/Red, Red/Black, Teal/Pink
- Spektrum S662 Metal-geared Waterproof Digital Servo

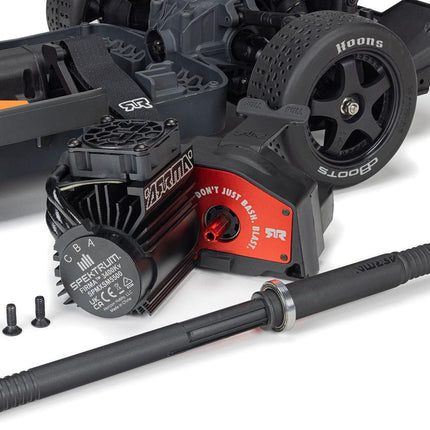

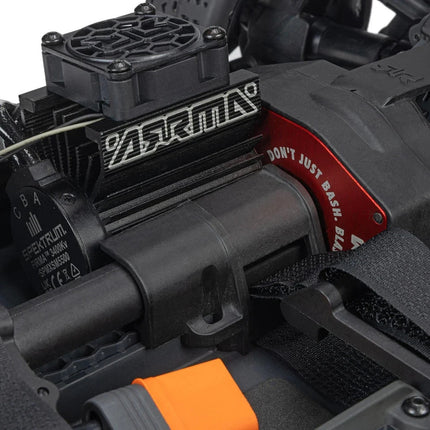

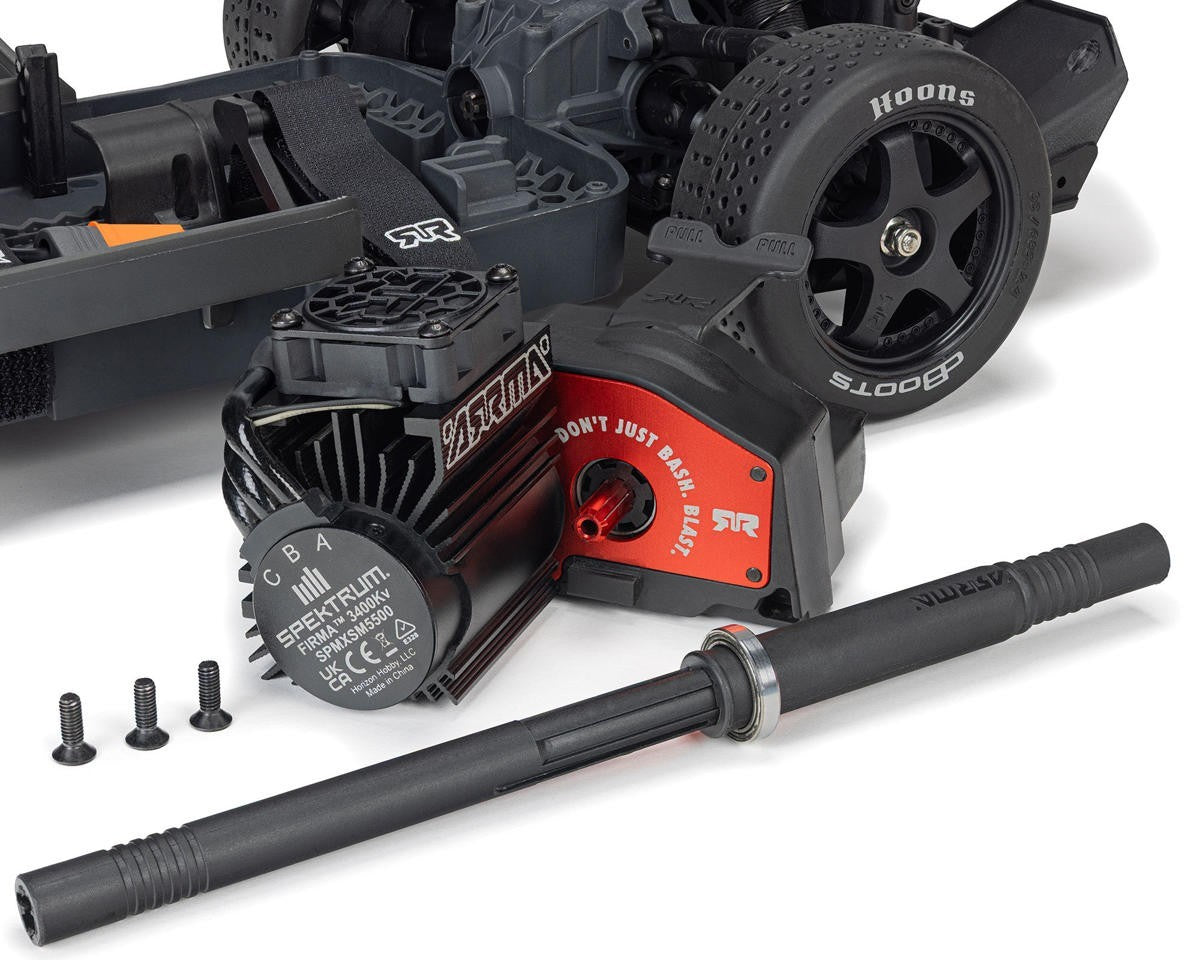

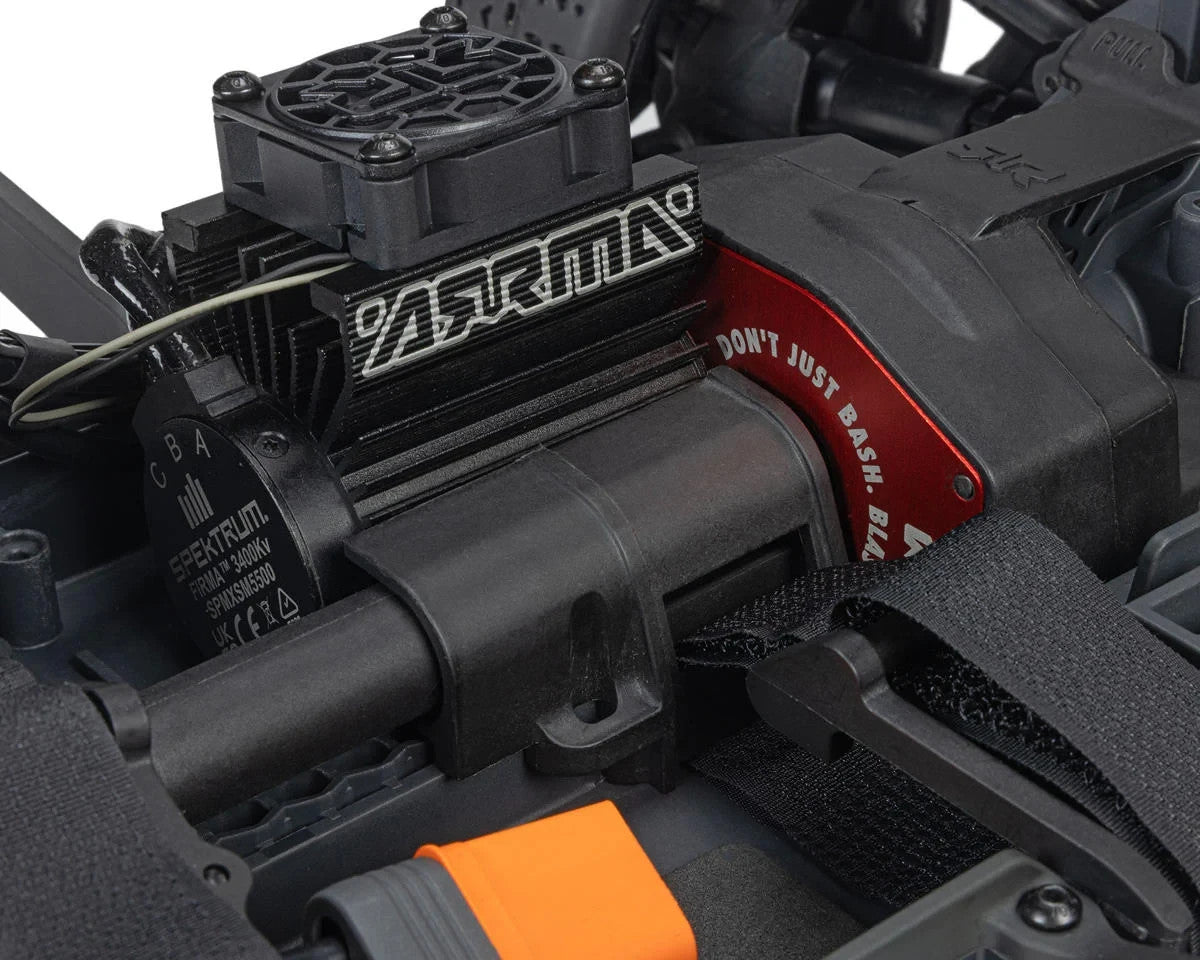

- Spektrum 3400Kv Brushless Motor
- Spektrum SLT3™ 2.4GHz 3 Channel Transmitter
- 2-Year limited warranty (see website for details)
- Ready to run — batteries and charger sold separately
- Approximate Assembly Time
- No Assembly Required
- Battery
- Sold Separately

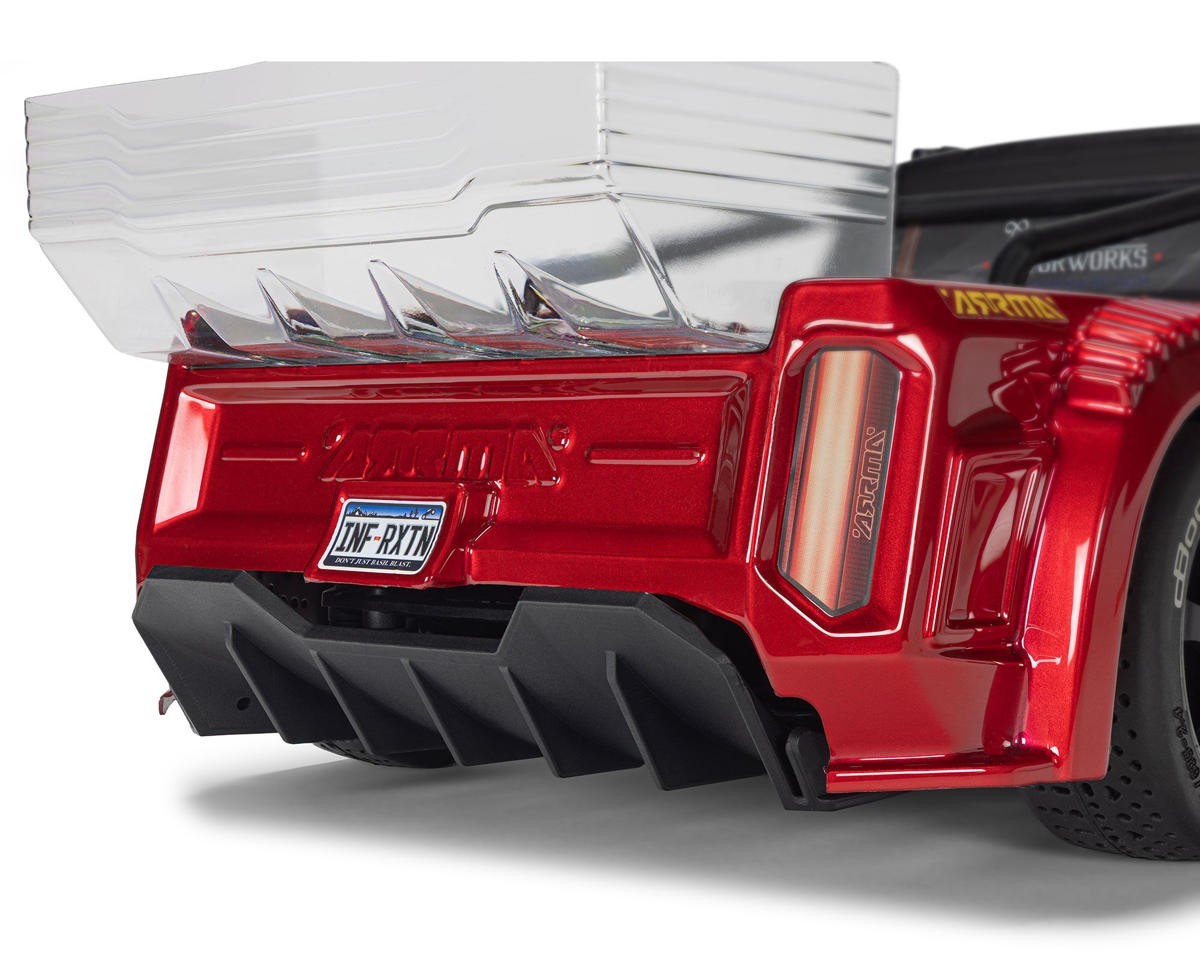

- Body
- Painted, Decaled, Trimmed
- Charger
- Sold Separately

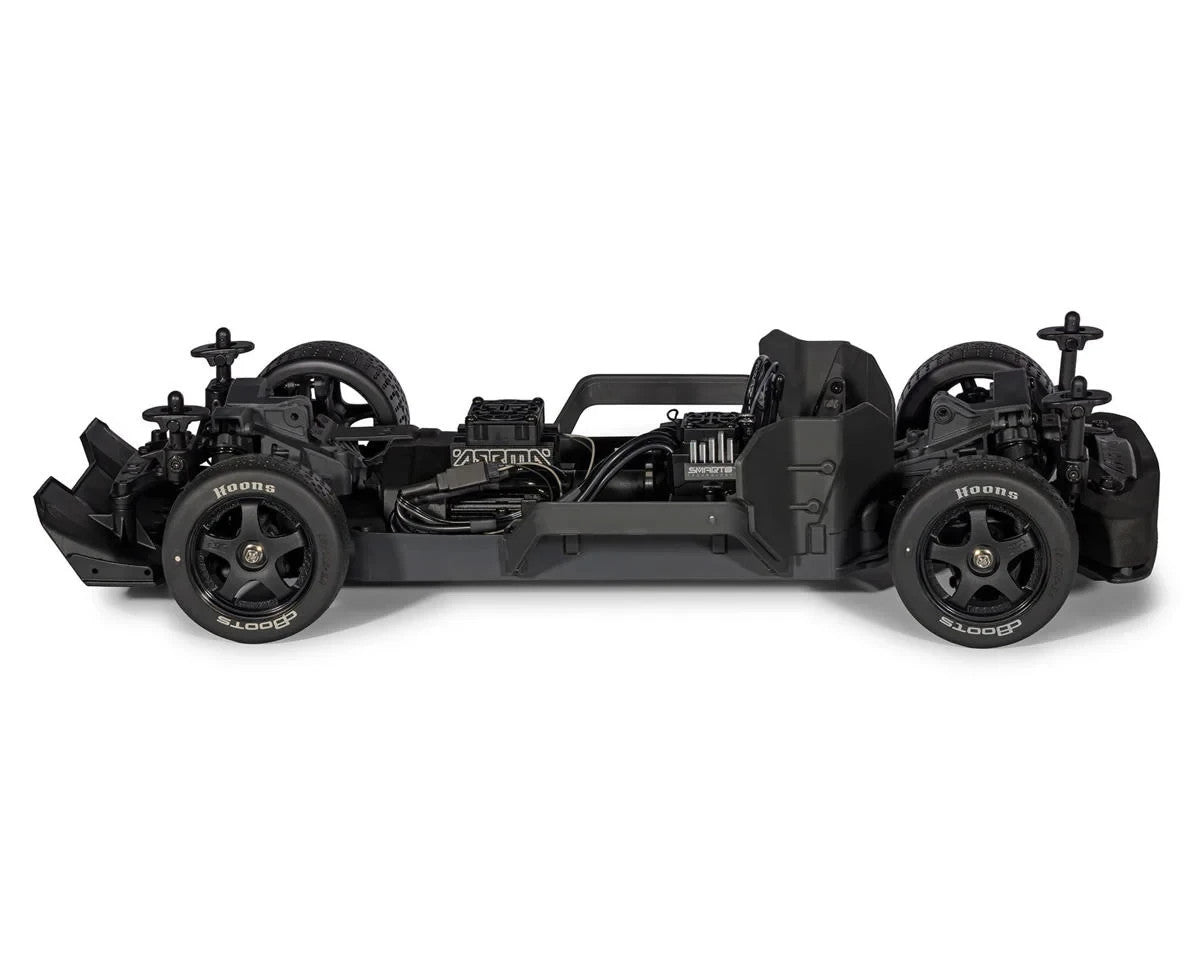

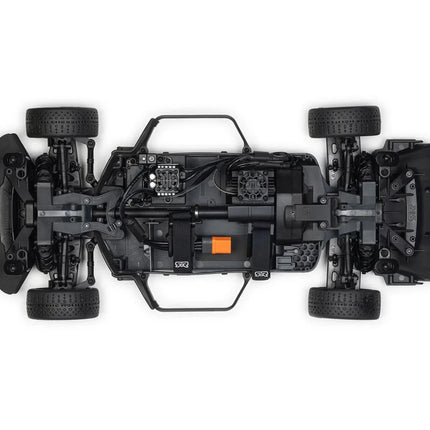

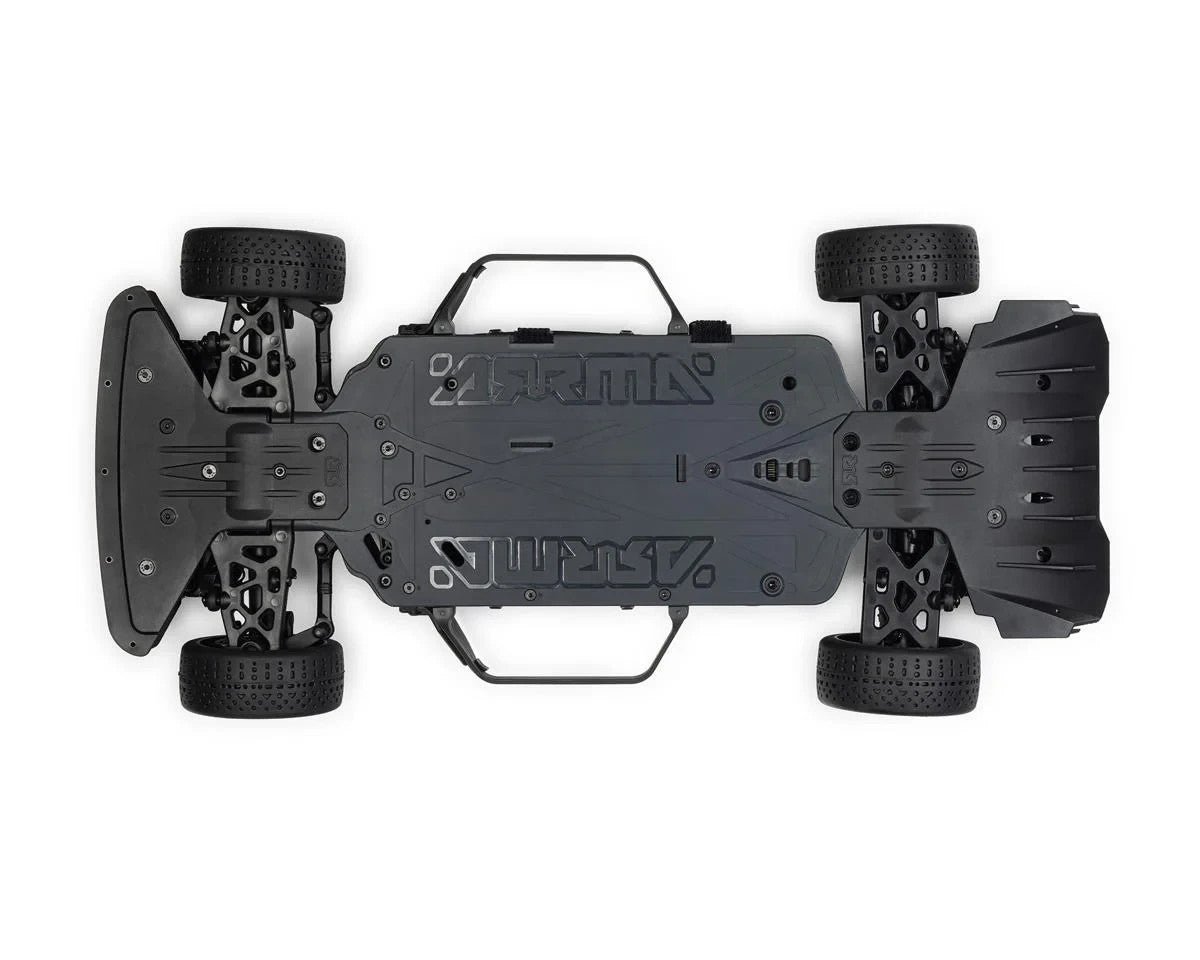

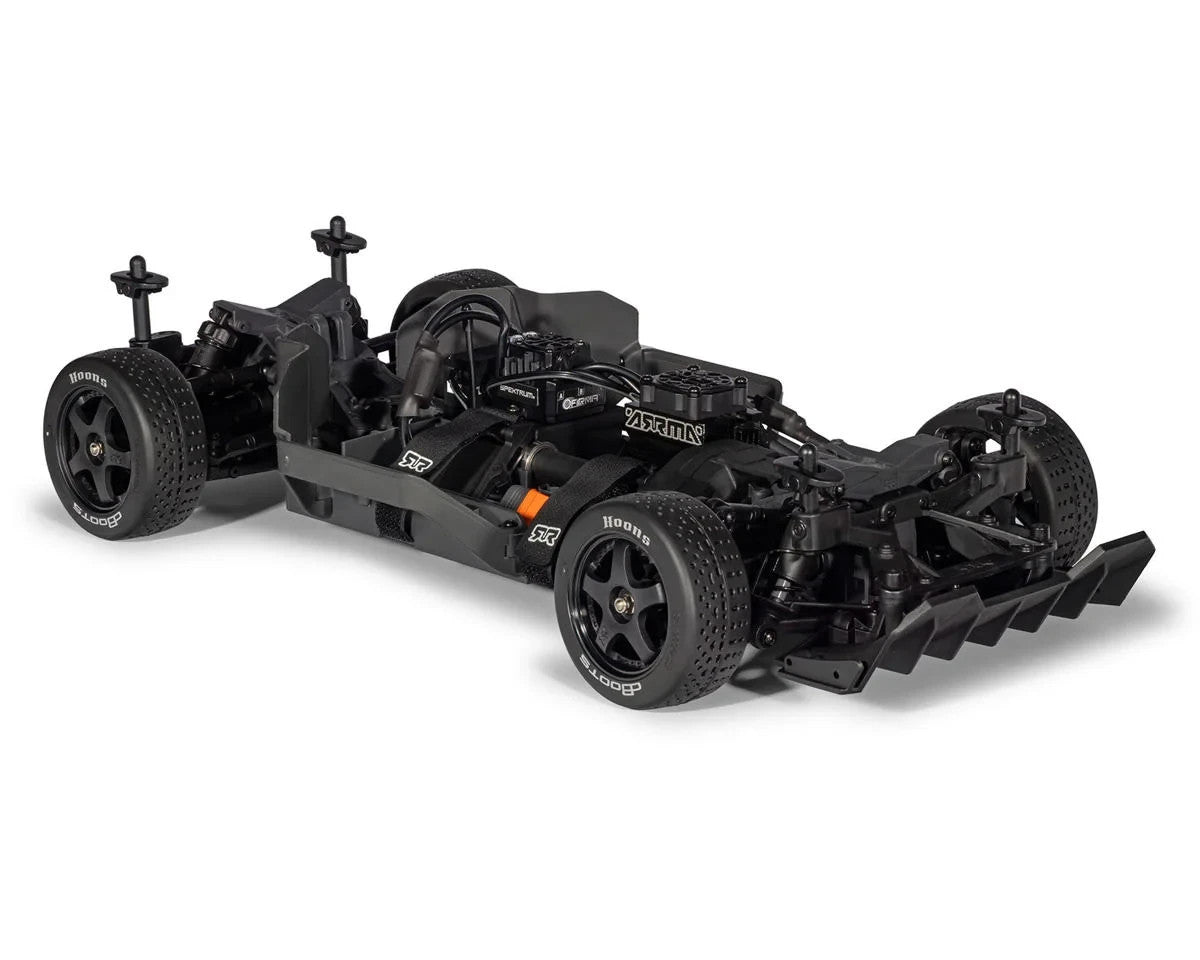

- Chassis
- 4WD Mid Motor
- Completion Level
- Ready-To-Run
- Connector Type
- IC5
- Differential
- Gear
- Drivetrain
- 4WD
- Final Drive Ratio
- 7.50
- Gear Pitch
- Mod-0.8
- Ground Clearance
- 15 mm
- Inner Tire / Outer Wheel Diameter
- 2.6 / 2.4 in
- Internal Gear Ratio
- 2.85
- LiPo Compatibility
- 2S, 3S
- Max Battery Dimensions
- 147 mm x 51 mm x 48 mm
- Motor Size
- 3660-3400 Kv
- Motor Type
- Brushless
- Oil Type & Content
- Diff: 10,000 / Shock: 2,000 cSt
- Pinion
- 19T, 28T
- Power System
- 223S
- Power Type
- Electric
- Product Height
- 6.34" (161 mm)
- Product Length
- 22.12" (562 mm)
- Product Weight
- 6.42lbs (2.91kg)
- Product Width
- 10.08" (256 mm)
- Radio
- Included
- Receiver
- Included
- Roll Out
- 35.60 mm/rev
- Scale
- 1/8
- Servos
- Included
- Shock Type
- Oil-filled composite
- Speed Control
- Included
- Spur Gear
- 50T
- Suspension
- Independent
- Technology
- DSC
- Tire Compound
- Medium
- Tire Tread
- dBoots Hoons
- Top Speed
- 65+
- Vehicle Size
- Standard
- Vehicle Type
- All-Road
- Wheel Hex Size
- 14mm
- Wheel Width
- 1.38" (35 mm)
- Wheelbase
- 13.19" (335 mm)
-
Includes:
- Arrma Infraction V4 223S Brushless 1/8 RTR Electric 4WD Street Bash Truck
- Product Manual
Needed To Complete:
- (1) 2-3s LiPo or Battery with IC5 Connector
- (1) Compatible Battery Charger
*NOTE: Ready-to-Run models come equipped with all electronics and include the transmitter needed for use. Please check the "Needed To Complete" above to make sure you have everything you need to get out and enjoy your RC model.
